Intorex CKX CNC Lathe

A CNC controlled wood turning lathe with automatic loading for volume production.

  • No sample or template
  • Quick set up time
  • High quality turned parts

About this Product

A heavy duty CNC woodturning lathe equipped with 2 independently controlled cutting gouges, 1 for roughing the other for finishing plus an additional hydraulically controlled gouge for 'rounding'. As standard the machine is equipped with an automatic hopper feed loading system, and conveyorised discharge belt. It also has programmable and variable spindle speeds along with 2 rear overhead hydraulic back knife units for operations such as dowelling. Optionally the machine can be equipped with an additional 4th CNC axis meaning a sanding head, milling head or router head for twisting and/or fluting can be fitted in addition to the two cutting gouges.Thanks to the CNC control and quick set up of the machine the CNX is suitable for one off specials, short batch runs and long production runs. Also it is possible to achieve excellent quality and definition of the turned component.

Intorex Ckx Cnc Wood Turning Lathe

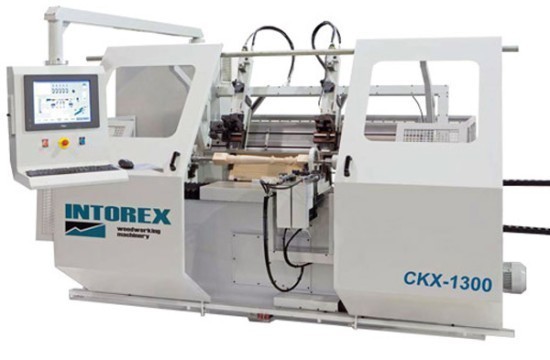

Intorex Ckx Cnc Wood Turning Lathe

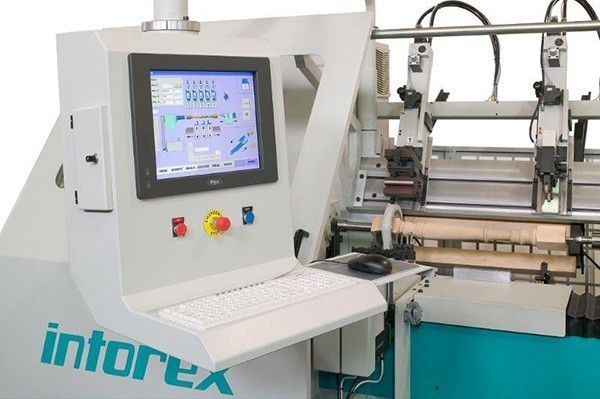

Intorex Ckx Cnc Wood Turning Lathe 2

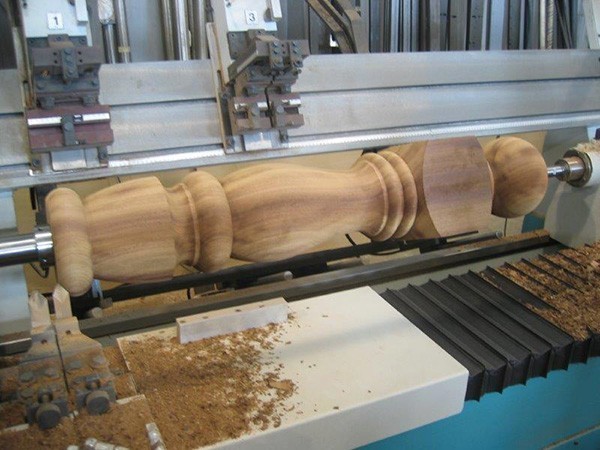

Intorex Ckx Cnc Wood Turning Lathe 3

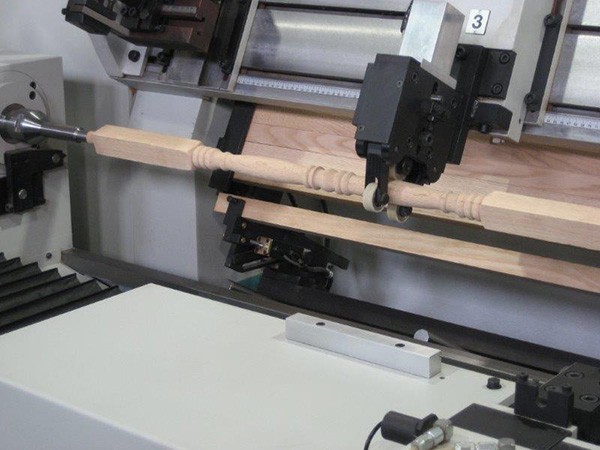

Intorex Ckx Cnc Wood Turning Lathe 4

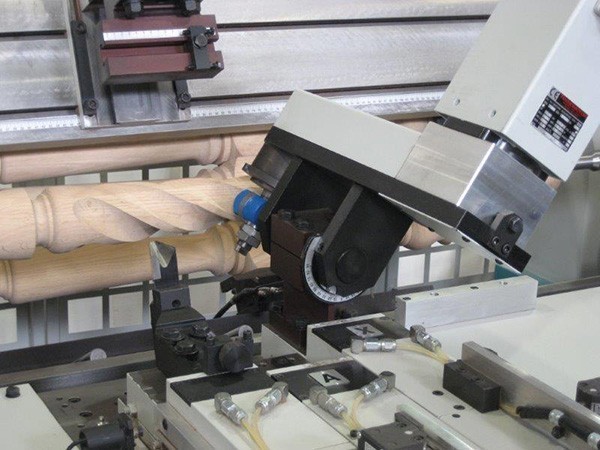

Intorex Ckx Cnc Wood Turning Lathe 5
Specification

Digital CNC control

  • 4 axis with ethercat interface.
  • Fanless industrial PC with 15" colour resistive touch screen.
  • Memory RAM 4gb. HDD 60 gb. SSD (solid state drive).
  • 1 x USB port - front. 4 x USB ports rear, network (LAN), Ethernet x 1, RS232 x 1.
  • Windows 7 embeded
  • PC / tooch screen mounted in swing arm control panel.
  • Copier axis A run of 140mm and controlled by CNC.
  • Copier axis X run of 140mm and controlled by CNC
  • Programmable spindle 0-5000rpm.
  • IntorEDIT graphic editor software for the design of profiles and automatic programming of the A and X axis along with selection of programming speeds.
  • Feeding group up to 140mm sq.
  • 2 x rear back knife units for form or dowel tools - useful run 200mm.
  • Round steady dia. 90mm with 2 x ring inserts.
  • Round steady dia 140mm with 1 x ring insert.
  • Headstock centres 24 and 39mm dia.
  • Tailstock centres 12 and 18mm dia - length 80mm.
  • Copy gouges HSS Radius 0.5mm, 4mm and 10mm.
  • 1 x set of maintenance tools.
