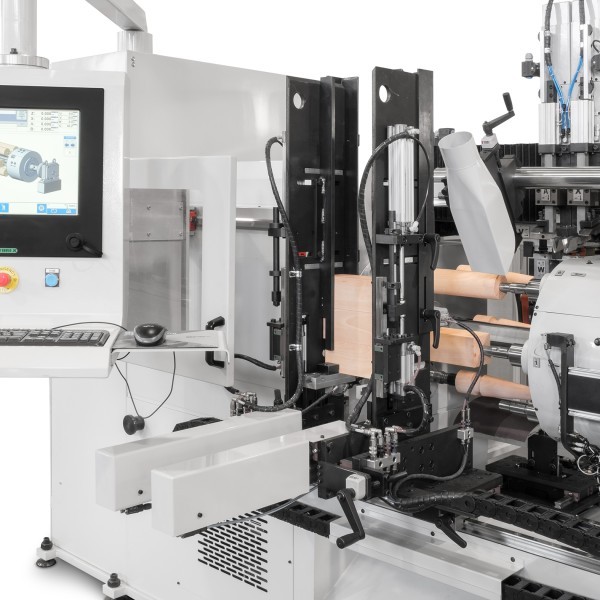

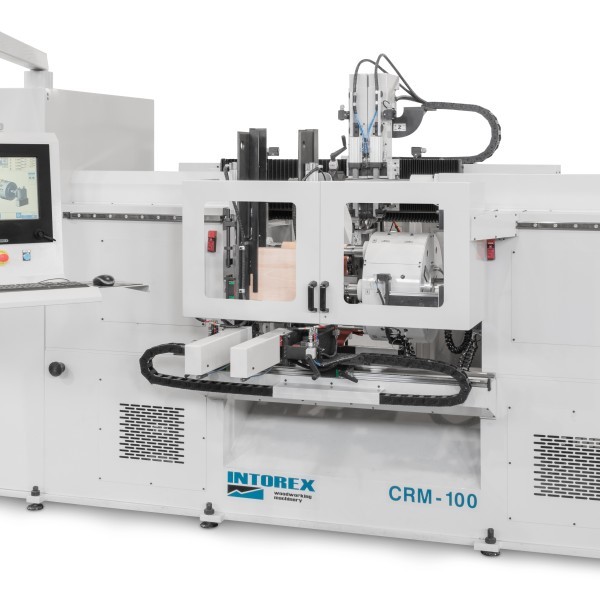

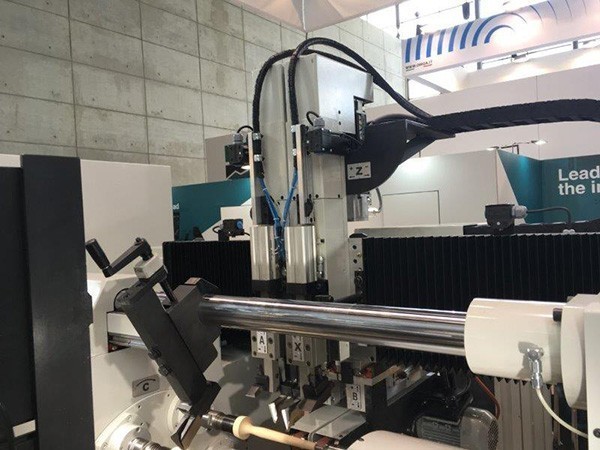

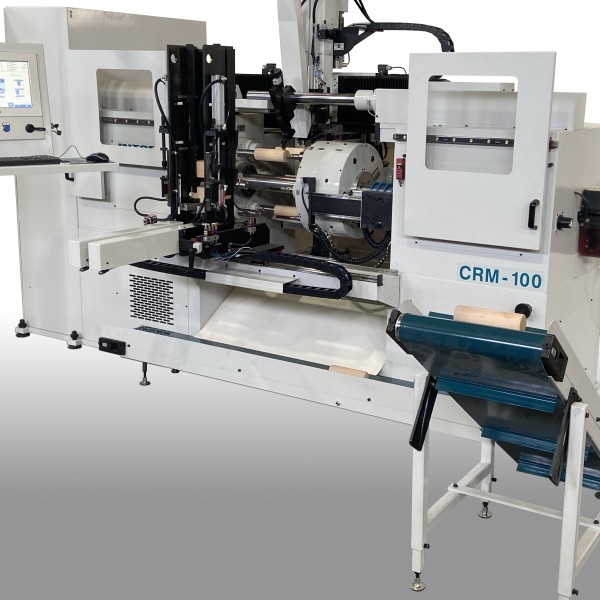

Intorex CRM Rotary CNC Woodturning Lathe

High Production Rotary CNC Woodturning Lathe With In-Built Sanding For Parts Up To 300mm In Length

About this Product

The CRM is a new design of lathe for the manufacture of small turned parts such as tool handles, hair brush handles, sofa feet etc.

The big advantage of the CRM is that it does not require any sample or template to produce the turned parts, instead profiles are created on the resident intorEDIT design software. Therefore it is very quick and easy to set up the machine for different designs of turning.

Also thanks to the CNC control of the gouges, and in-built sanding systems high quality turned parts can be produced.

Intorex CRM Rotary CNC Woodturning Lathe
Intorex CRM Rotary CNC Woodturning Lathe





  • Automatic Hopper Feed Loading





  • High Volume Production





  • No Sample Or Template





  • Parts finish sanded





Specification

Specification
• Maximum working length 300mm
• Minimum working length 40mm
• Maximum diameter 100mm
• Automatic feeding through loader up to 100mm square
• Vertical hopper feed loading
• Latest digital control unit, mounted on swinging arm control panel
• Total of 8 CNC controlled axis

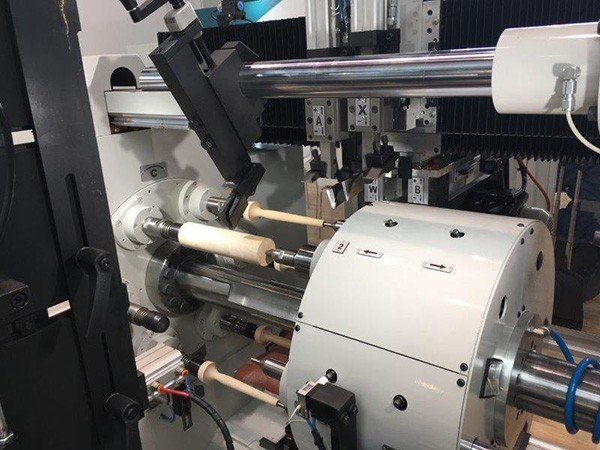

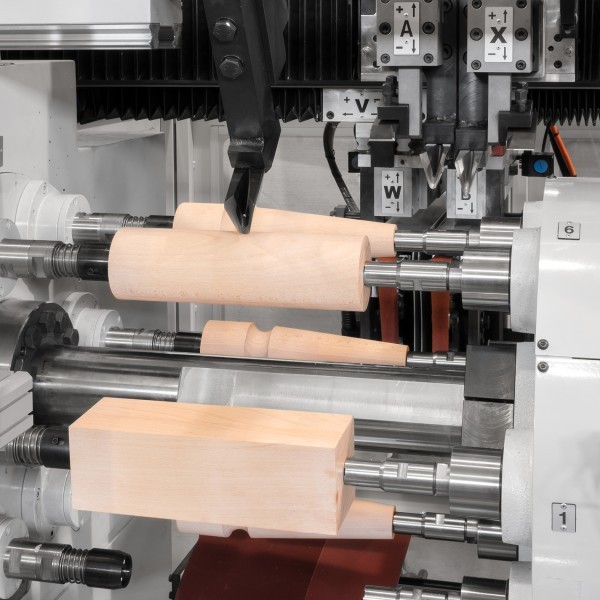

• 6 working stations including pre roughing gouge, CNC roughing gouge, CNC finishing gouge

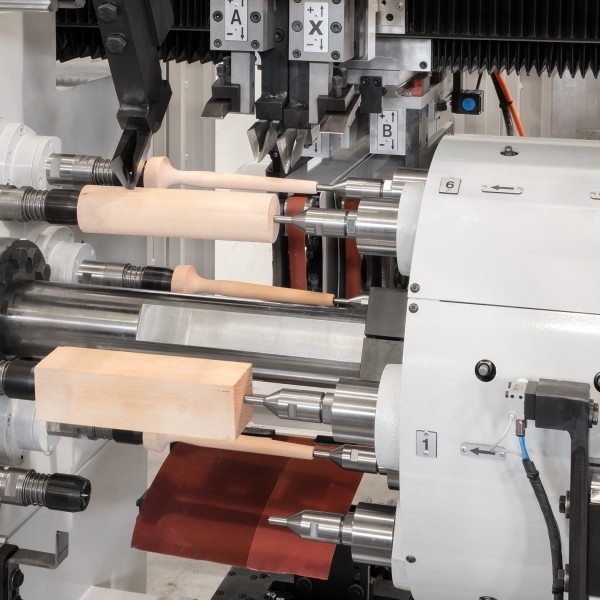

• CNC twin narrow sanding belts, final sanding through mechanical oscillating brushes
• Approximate production output 900 pieces per hour

Services
• 3 x 120mm dia dust extraction connections
• Electrics 400/3/50
• Total installed power 25kw / 45 Amp
• Air supply 6 bar
• Ethernet port for remote access included

Overall dimensions / weights
• 3600 x 3100 x 215mm high
• 3,500 kg
