Intorex LNX1500 CNC Rotary Sander

CNC controlled rotary machine for the automatic volume sanding of turned parts.

  • Auto loading
  • Rotary operation
  • CNC sanding
Intorex Video Placeholder

About this Product

A substantially built 7 station rotary sander for turned components. As standard the machine is fitted with 2 x CNC copiers for the flat belt sanding units and mechanically adjusted brush back sanding units for the shaped part of the turning. Movement of the copier units is via precision re-circulating ball / screw drive and linear bearings. The CNC copiers eliminate the need for using a jig or template thus making set up times much quicker than conventional copy sanders. Components are loaded in the inclinded feeding guides and automatically ejected at the front of the machine once the sanding cycle has been completed.

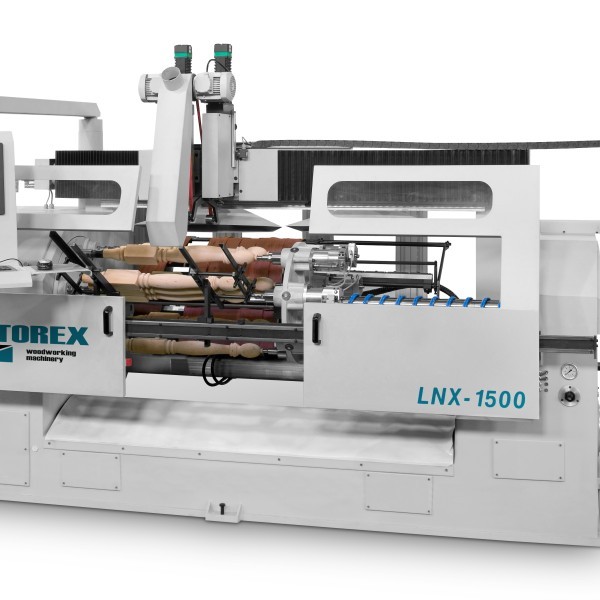

Intorex Lnx1500 Cnc Rotary Sander For Turned Components

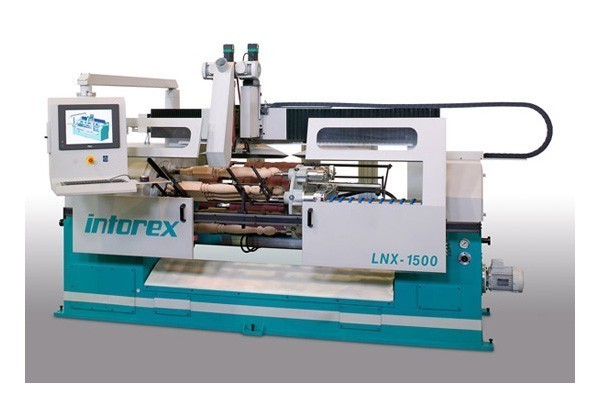

Intorex Lnx1500 Cnc Rotary Sander For Turned Components

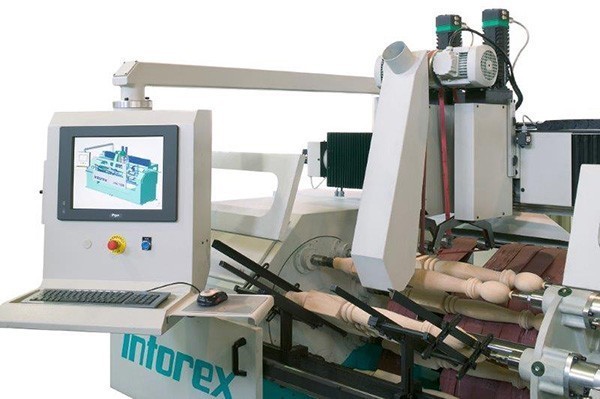

Intorex Lnx1500 Cnc Rotary Sander For Turned Components 2

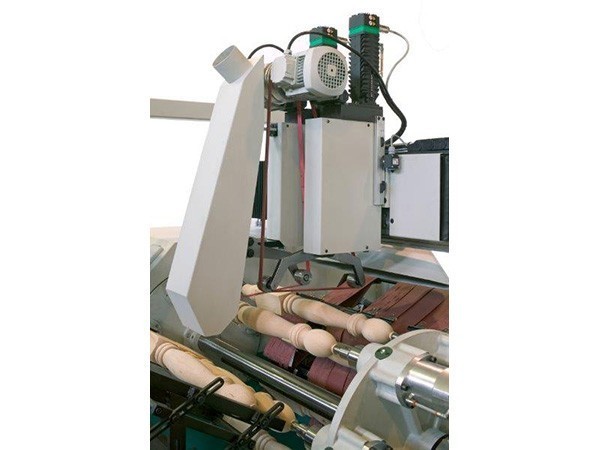

Intorex Lnx1500 Cnc Rotary Sander For Turned Components 3

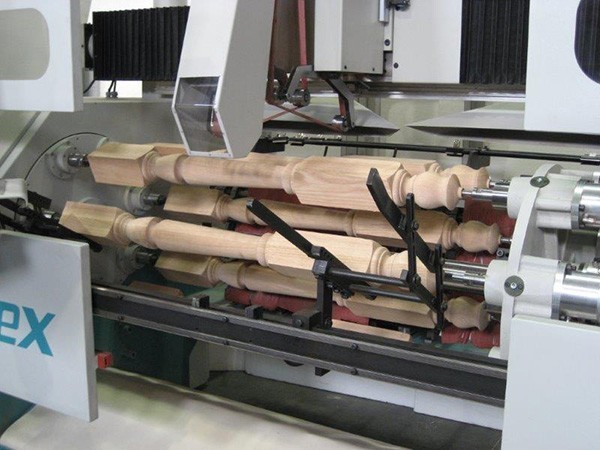

Intorex Lnx1500 Cnc Rotary Sander For Turned Components 4

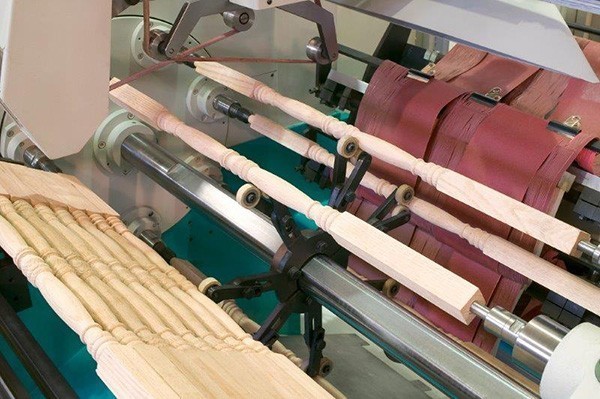

Intorex Lnx1500 Cnc Rotary Sander For Turned Components 5
Specification
  • Max turning length 1500mm
  • Max turning dia 300 (200 x 200).
  • Feeding group up to 120mm sq.
  • Variable spindle speed up to 3500rpm.
  • 5.5hp motor with inverter.
  • Saddle advancement speed 0-15 mt/min.
  • Saddle reverse speed 0-15 mt/min.
  • CNC control of 3 axis.
  • Pentium industrial PC with 12" monitor, Windows XP, IntorEDIT CAD CAM graphic editor for the design of the profiles and automatic programming of the axis.
  • Copier axis A run of 150mm and controlled by CNC.
  • Copier axis X run of 150mm and controlled by CNC.
  • Braking unit for the unloading of the pieces.
  • Headstock drives 22 and 40mm dia.
  • Tailstock dia 12 and 24mm.
  • Nylon brushes 250mm.
  • Grass brushes 1000mm
  • Sanding belts for copier 20 x 1925mm. 120 and 180 grit.
  • Various grit slashed sanding paper for brush back units.
