INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

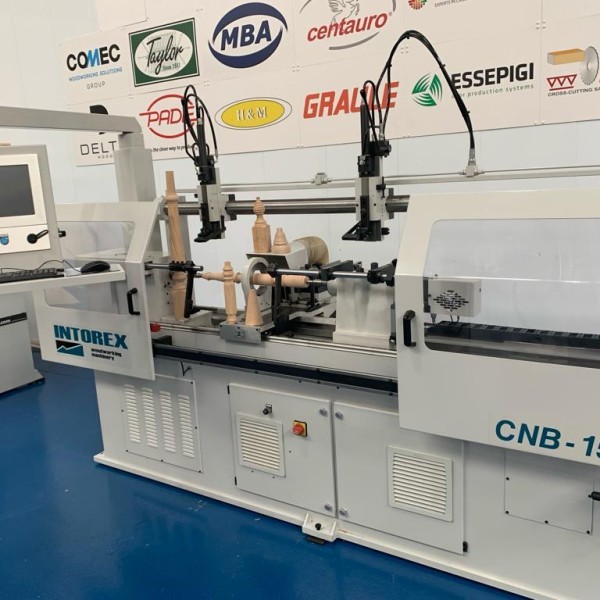

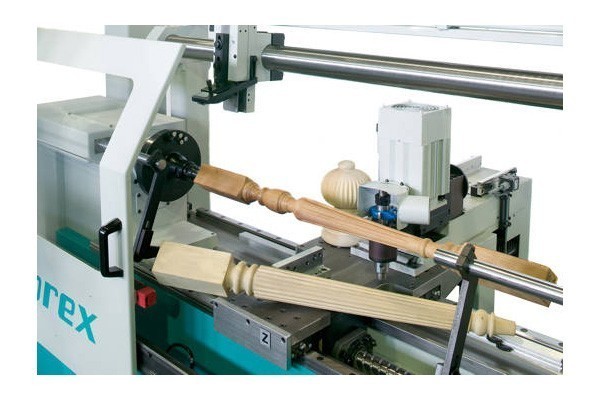

A CNC controlled wood turning lathe of 4 axis which includes a roughing gouge, finishing gouge and headstock motor with inverter allowing for control of the spindle speed through the PC.

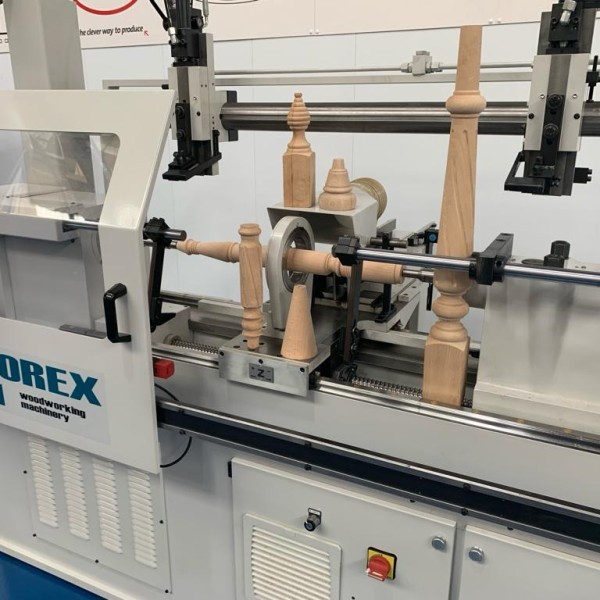

As standard the machine is also equipped with 2 x overhead dowel knife units, hydraulically activated and also a pneumatic workpiece centering device.
Programming of the pieces to be turned is quick and sample thanks to the user friendly IntorEDIT design software with the facility to program directly at the machine controller or remotely on a PC or laptop.
Thanks to the quick set up times the CNB is ideal for producing one off bespoke turnings or short production runs.
A CNC controlled wood turning lathe of 4 axis which includes a roughing gouge, finishing gouge and headstock motor with inverter allowing for control of the spindle speed through the PC.
As standard the machine is also equipped with 2 x overhead dowel knife units, hydraulically activated and also a pneumatic workpiece centering device.
Programming of the pieces to be turned is quick and sample thanks to the user friendly IntorEDIT design software with the facility to program directly at the machine controller or remotely on a PC or laptop.
Thanks to the quick set up times the CNB is ideal for producing one off bespoke turnings or short production runs.

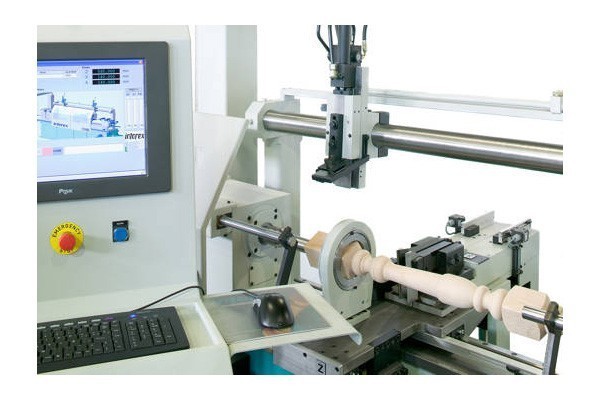

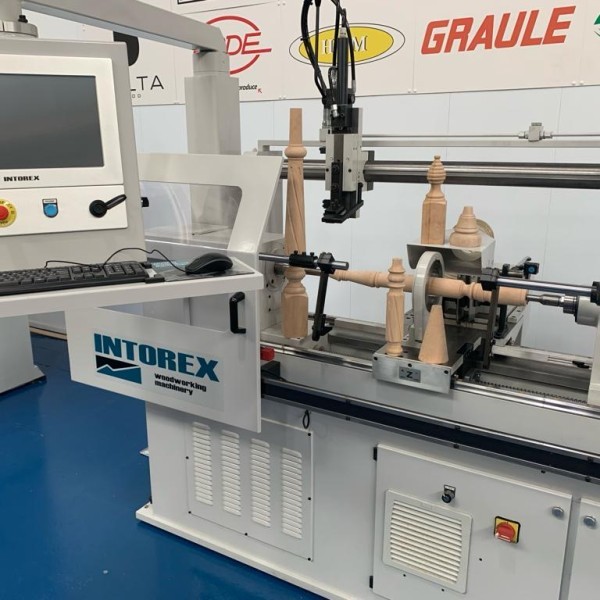

Latest state of the art digital CNC controller mounted on swing arm
Max working length 1500mm
Maximum dia to be machined 230mm
Maximum manual feeding up to max 160mm sq

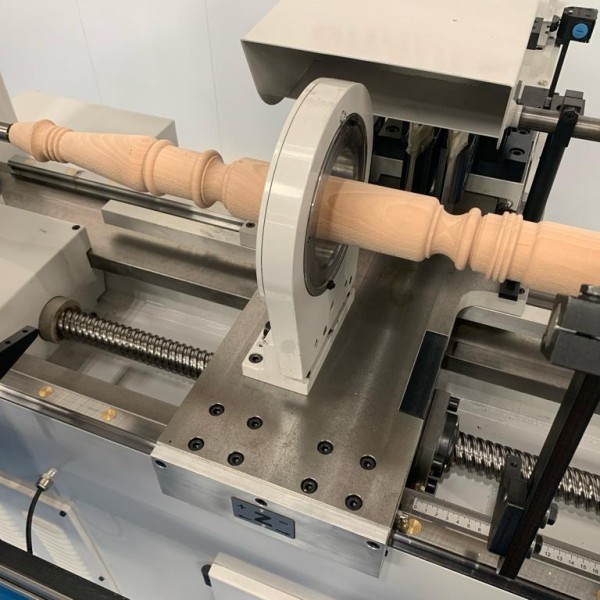

Round steady up to 90mm with 2 x rings
Round steady up to 140mm with 1 x ring
Mechanically set pre rounding gouge
12.8kw headstock motor with inverter for variable spindle speeds 0-5000 rpm
CNC 'Vee' Cutting gouges HSS x 2 - 3.5mm radius for roughing 0.6mm radius for finishing
Dowel knives 2 x 30mm
Services:
1 x 150mm dia dust extraction hood for the gouges
Electrics 400/3/50
Total installed power 27kw
Air supply 6 bar
Ethernet port for remote access include
Overall dimensions / weights
3300 x 1250mm x 2000mm high
2000kg
