INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

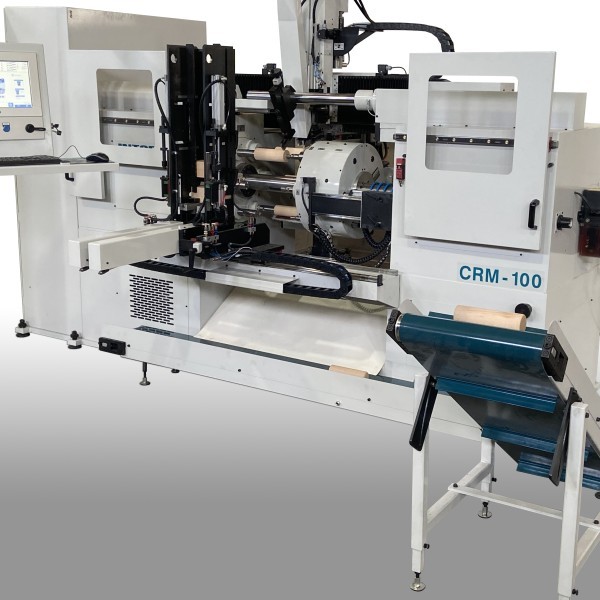

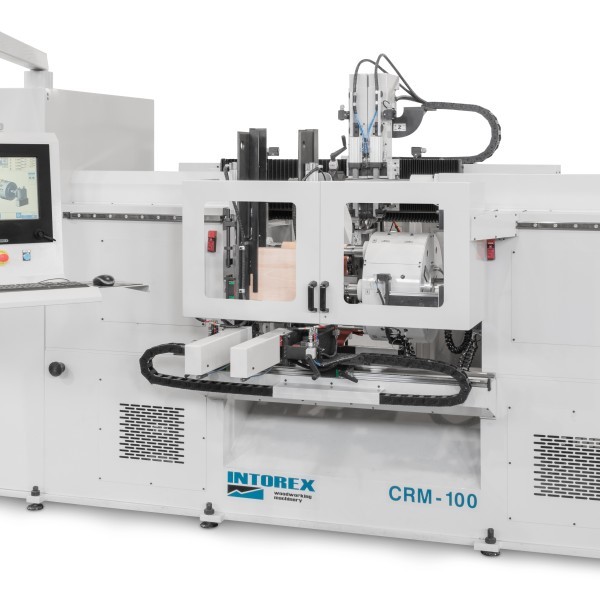

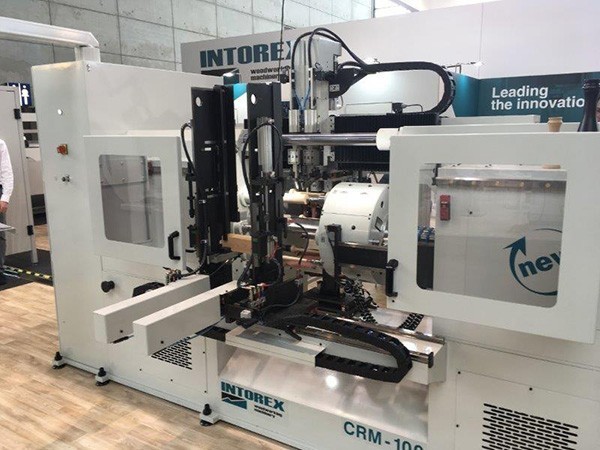

The CRM is a new design of lathe for the manufacture of small turned parts such as tool handles, hair brush handles, sofa feet etc.
The big advantage of the CRM is that it does not require any sample or template to produce the turned parts, instead profiles are created on the resident intorEDIT design software. Therefore it is very quick and easy to set up the machine for different designs of turning.
Also thanks to the CNC control of the gouges, and in-built sanding systems high quality turned parts can be produced.
The CRM is a new design of lathe for the manufacture of small turned parts such as tool handles, hair brush handles, sofa feet etc.
The big advantage of the CRM is that it does not require any sample or template to produce the turned parts, instead profiles are created on the resident intorEDIT design software. Therefore it is very quick and easy to set up the machine for different designs of turning.
Also thanks to the CNC control of the gouges, and in-built sanding systems high quality turned parts can be produced.
Specification
Maximum working length 300mm
Minimum working length 40mm
Maximum diameter 100mm
Automatic feeding through loader up to 100mm square
Vertical hopper feed loading

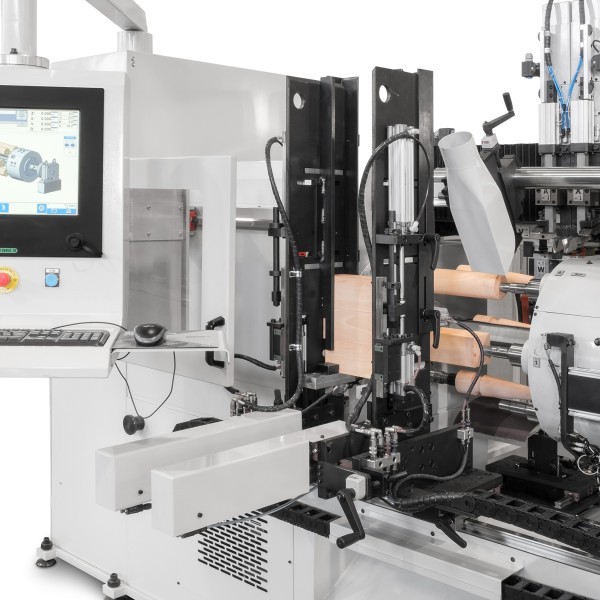

Latest digital control unit mounted on swinging arm control panel

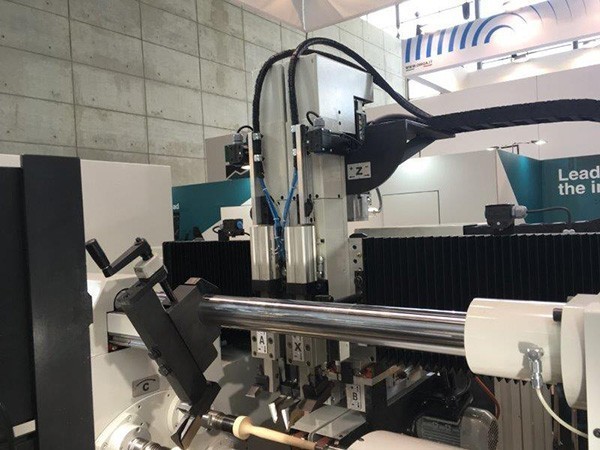

Total of 8 CNC controlled axis

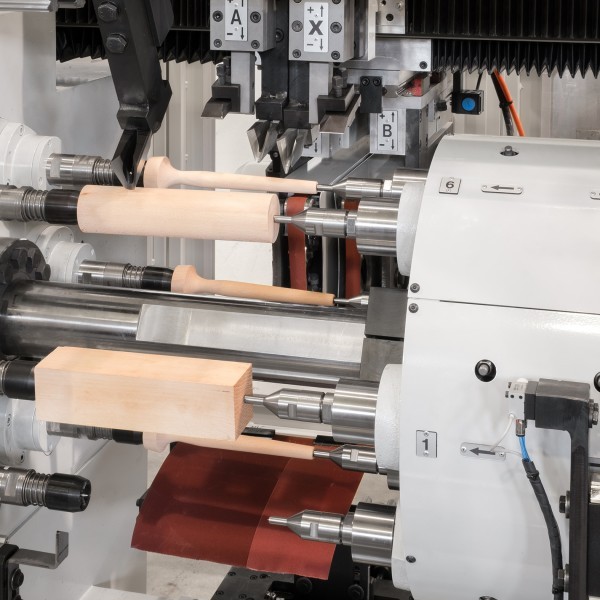

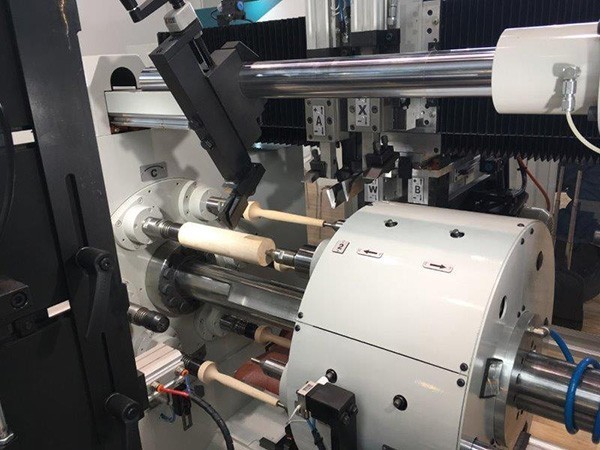

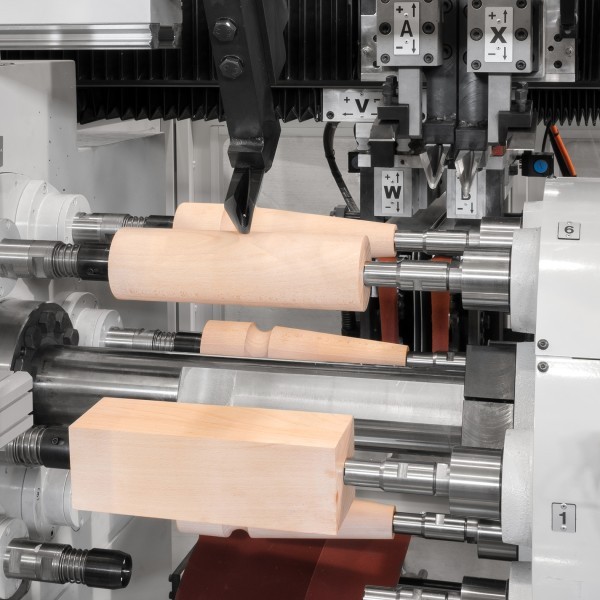

6 working stations including pre roughing gouge CNC roughing gouge CNC finishing gouge
CNC twin narrow sanding belts final sanding through mechanical oscillating brushes
Approximate production output 900 pieces per hour
Services
3 x 120mm dia dust extraction connections
Electrics 400/3/50
Total installed power 25kw / 45 Amp
Air supply 6 bar
Ethernet port for remote access included
Overall dimensions / weights
3600 x 3100 x 215mm high
3500 kg
