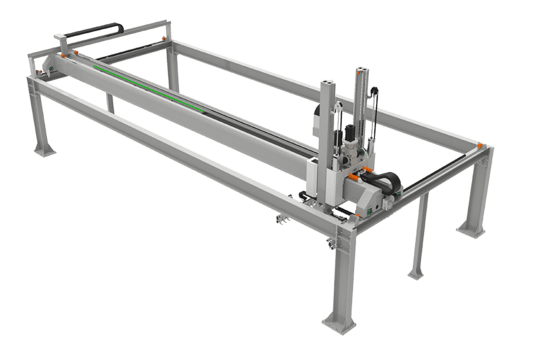

Designed to meet the challenges of moving large and heavy loads, the Ergon combines robust construction with advanced motion technology to deliver exceptional performance.
Its solid steel tubular frame and dual-column vertical axis provide the strength and stability required for intensive applications, while recirculating ball guide systems ensure smooth, accurate movement at all times.
Equipped with precision gearboxes and brushless motors, the Ergon offers fast, controlled handling, making it the ideal choice for high-speed door production lines.
Built for durability and adaptability, it can be configured with a wide range of gripping systems to suit specific production needs.
Designed to meet the challenges of moving large and heavy loads, the Ergon combines robust construction with advanced motion technology to deliver exceptional performance.
Its solid steel tubular frame and dual-column vertical axis provide the strength and stability required for intensive applications, while recirculating ball guide systems ensure smooth, accurate movement at all times.
Equipped with precision gearboxes and brushless motors, the Ergon offers fast, controlled handling, making it the ideal choice for high-speed door production lines.
Built for durability and adaptability, it can be configured with a wide range of gripping systems to suit specific production needs.
Length - on request (max 13000mm)
Ground width - 1200mm
Max height - 5600mm
Working length - on request
Working width - on request
Working height - on request (max 1850mm)
Max workpiece weight - 500kg
Cycles - 6 max
Installed power - 6kW
