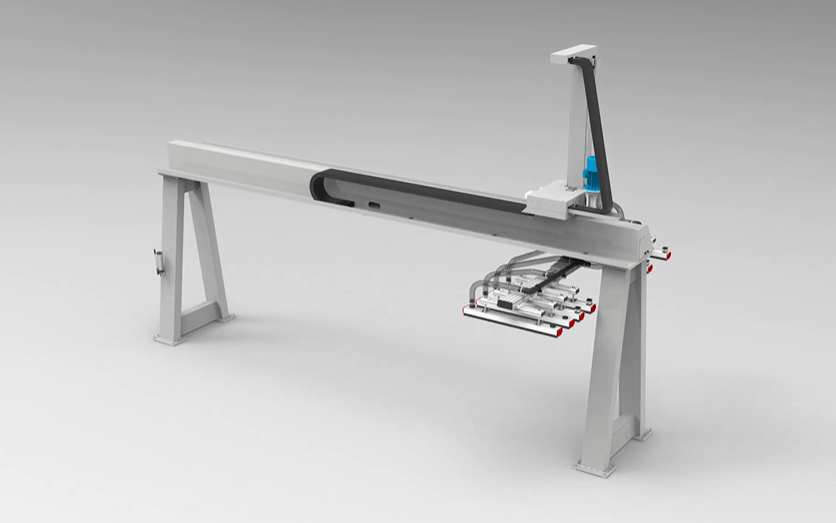

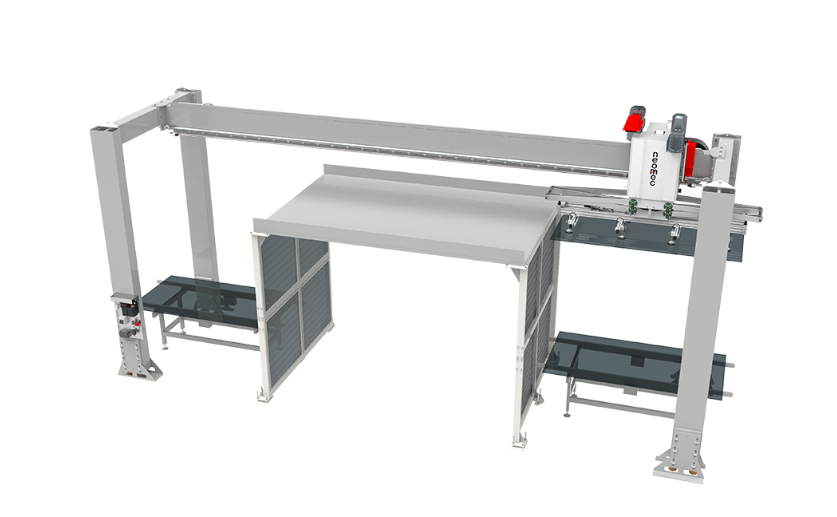

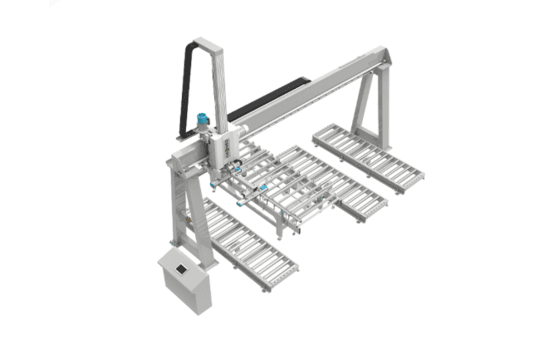

Optimised for speed and efficiency, the Neomec Jet automatic bridge mover offers controlled, reliable handling of door panels.
Equipped with two controlled axes and adaptable gripping systems, it can automatically collect and deposit door panels from multiple source stations to one or more target stations according to production requirements. Ideal for loading, unloading, and quick transfers on squaring, edging, and spraying lines, the Jet ensures smooth, noiseless operation while reducing manual handling.
Its robust construction on steel guides guarantees durability, minimal maintenance, and maximum safety for operators, making it a dependable solution for high-speed door production environments.
Optimised for speed and efficiency, the Neomec Jet automatic bridge mover offers controlled, reliable handling of door panels.
Equipped with two controlled axes and adaptable gripping systems, it can automatically collect and deposit door panels from multiple source stations to one or more target stations according to production requirements. Ideal for loading, unloading, and quick transfers on squaring, edging, and spraying lines, the Jet ensures smooth, noiseless operation while reducing manual handling.
Its robust construction on steel guides guarantees durability, minimal maintenance, and maximum safety for operators, making it a dependable solution for high-speed door production environments.
Length - on request (max 8000mm)
Ground width - 1200mm
Max width - 13000mm
Max height - 4900mm
Working length - on request
Working width - on request
Working height - on request (max 1850mm)
Max workpiece weight - 100kg
Cycles - max 12 min
Installed power - 6kW
