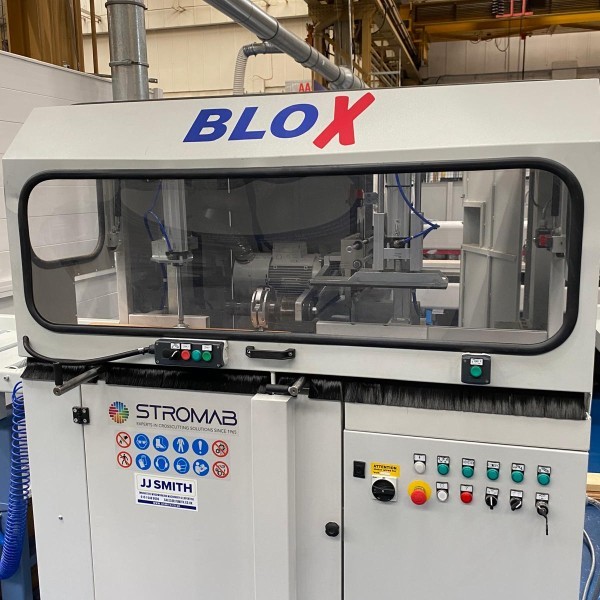

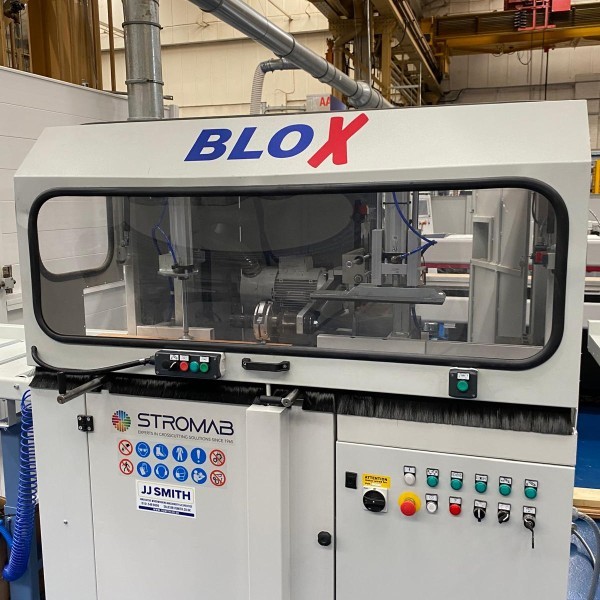

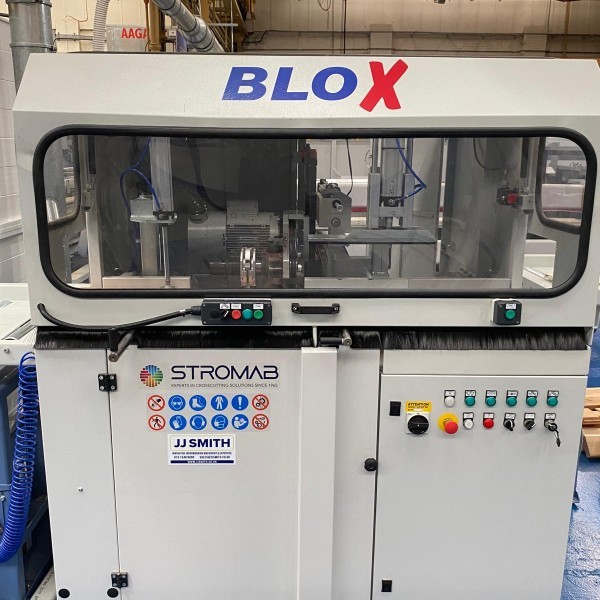

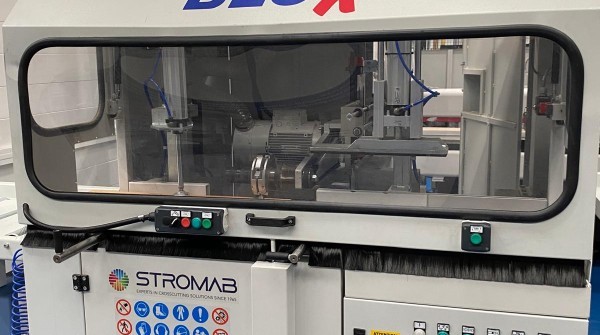

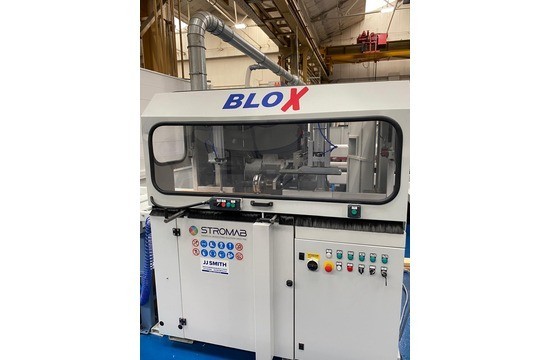

A mechanical 4-way notching machine for the production of log cabin style products, Using 2 x vertical and 2 x horizontal milling heads that work in sequence to produce the corner joint. Machining cycle is activated by 2 hand bush button control. The working area is covered by a hinged guard with interlock thus maximising operator safety.
Mechanical 4 way notching machine for log cabin style joints
Semi automatic operation
Variable speed control to cutter heads
A mechanical 4-way notching machine for the production of log cabin style products, Using 2 x vertical and 2 x horizontal milling heads that work in sequence to produce the corner joint. Machining cycle is activated by 2 hand bush button control. The working area is covered by a hinged guard with interlock thus maximising operator safety.
Maximum work piece dimensions: 230(W) x 230 (H) mm.
Minimum work piece dimensions: 100(W) x 60(H) mm.
With upper horizontal milling tool Ø 210 mm minimum height can be 45 mm.
Milling shaft Ø 40 mm.
N°2 vertical milling shaft for maximum tool Ø 230mm.
N°2 horizontal milling shaft for maximum tool Ø 180 mm.
Minimum milling tool width 21 mm.
Maximum milling tool width 200 mm.
Maximum vertical cutting depth 70 mm.
Maximum horizontal cutting depth 45 mm.
Shafts distance adjustment with mechanical readout

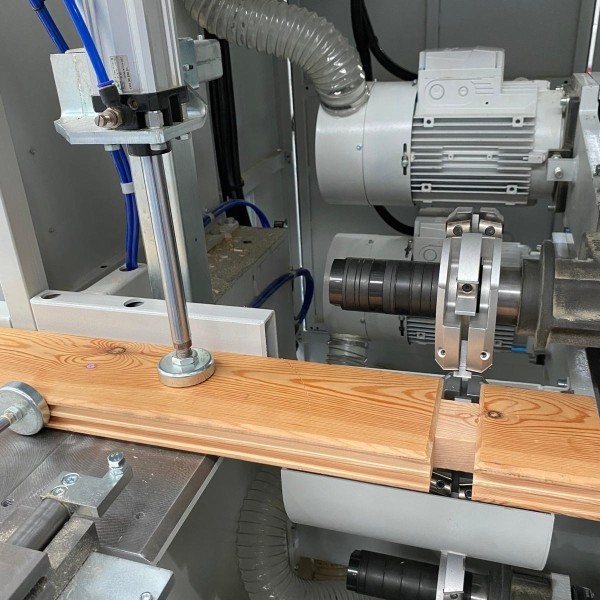

Work piece clamping by n.2 pneumatic cylinders
Tools motion operated by a hydro-pneumatic cylinder
Motor power for each cutter 4 kW
Vertical cutter revs 4640 rpm
Horizontal cutter revs 5930 rpm
Two handed safety working starter
Tools NOT included
