Neomec Linea Painting System - Automatic Spraying Machine

Introducing Neomec Linea: Your automatic spraying solution with built-in conveyor.

About this Product

Key Features

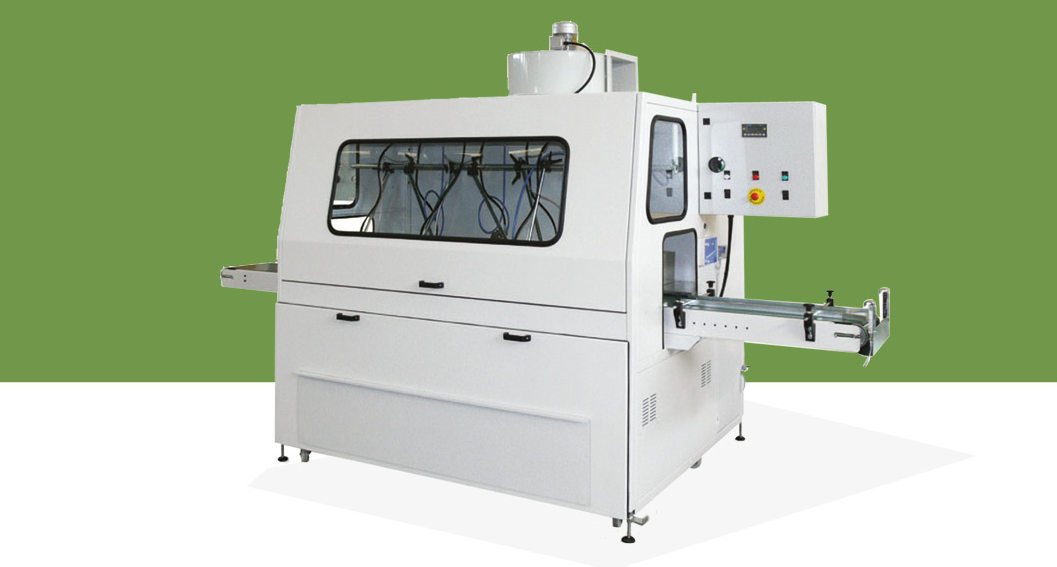

The Linea is an advanced automatic spraying machine equipped with a built-in belt conveyor for applying paints, stains and liquid products on to wooden, metal or plastic sections.

The machine intercepts incoming profiles automatically, optimising paint application with precise over-spray control and delivering flawless finishes every time.

Operation is simple and maintenance is minimal. From door jambs to decorative joinery mouldings, stair parts and beyond, the Linea is your go-to solution for achieving professional results with ease. Neomec offers a diverse range of spraying machines tailored to meet a variety of applications, ensuring whatever your finishing needs may be, we've got a solution for you.


  • Suitable for all water based / UV paints and oils
  • Simple operation with minimal maintenance
  • Increases productivity, quality and finish compared to manual spraying

Specification

Max working width 300mm

Max working thickness 100mm

Min length of piece 800mm

Working speed 20-80m/min

Can work with high pressure or low pressure systems

Pumps and guns can be specified dependant on supplier - Kremlin / Iwata

Can be fitted with infeed / outfeed conveyor

Can be fitted with stainless steel recirculating valve and stainless paint collecting hoppers

Total load 2.25kw

5 bar minimum

Overall dimensions: 3500mm x 1670mm
