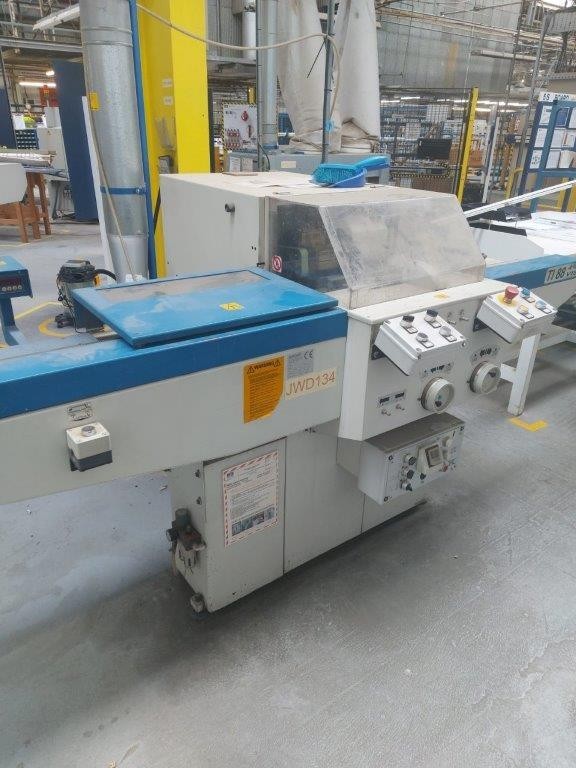

A heavy duty automatic notching machine for Georgian style glazing bars for windows and doors,furniture components, decorative panels etc. The machine is equipped with 4 cutting units allowing the components to be fed without the need to rotate the moulding through 180 degrees between horizontal and vertical bars. Also fitted with an automatic feed system and an onboard PLC controlling the type of end working and number of notches required.
Feeding adjustment with digital readout.
43mm Max height between top and bottom cutters
45mm Max cut off
600mm max distance between notches
10mm min distance between notches
