A 'between centres' heavy duty CNC with 5 interpolated axis and a total of 6 CNC axis in total.

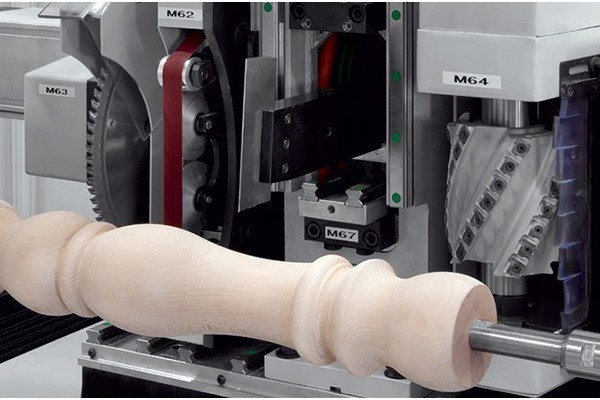

Machine is equipped with shaping / milling head, horizontal sanding head, sawblade for turning and an overhead router with a 8 position rotary tool changer.
With this configuration the TKC has numerous machining and sanding capabilities thus making it extremely flexible for producing a wide range of classical and contemporary design furniture and stair parts
A 'between centres' heavy duty CNC with 5 interpolated axis and a total of 6 CNC axis in total.
Machine is equipped with shaping / milling head, horizontal sanding head, sawblade for turning and an overhead router with a 8 position rotary tool changer.
With this configuration the TKC has numerous machining and sanding capabilities thus making it extremely flexible for producing a wide range of classical and contemporary design furniture and stair parts
Specification
Latest state of the art digital controller on adjustable overhead swing arm
IntorEDIT 3D design software
Automatic hopper feed loading and conveyor for removal machined part
Maximum working length 1500mm
Maximum dia to be machined 230mm
Automatic feeding up to 120mm square
Manual loading up to 160mm square 1000-4500 rpm
Headstock 15.8kw 0-1500mm rpm
Turning head with sawblade 9kw
Shaping / milling head 9kw, 0 to 1500 rpm
Sanding head horizontal 2.2kw, 3000 rpm
Electro spindle (router head)7.5kw, 22000 rpm
Rotary tool changer 8 position HSKF63
Variable and programmable spindle speeds 3,500
Movement speed of flat sanding belts 0-15 mt/min forward or reverse
Services
Installed power 45 kw
Dust extraction connections 1 x 200mm 1 x 120mm dia at end of conveyor
Air supply 6 bar
Overall dimensions and weights
5300 x 3800 x 3000mm H
Weight 4500kg
Options
Tooling
Vertical sanding belt for turned parts
Special pneumatic steady for thin parts.
