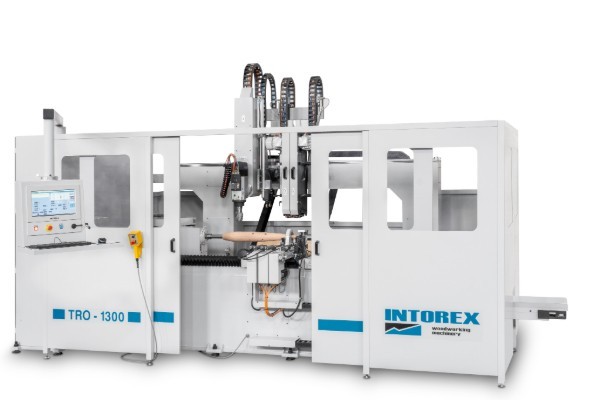

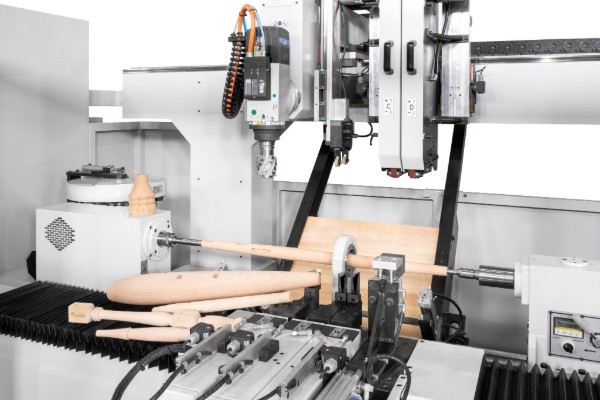

The TRO is a 12 axis CNC woodturning lathe machining centre capable of generating turnings at high speed and accuracy with a sanded finish. The added advantage of a vertical overhead router and tool changer gives numerous different machining possibilities such as as drilling, slotting, twisting and fluting.
The TRO is a 12 axis CNC woodturning lathe machining centre capable of generating turnings at high speed and accuracy with a sanded finish. The added advantage of a vertical overhead router and tool changer gives numerous different machining possibilities such as as drilling, slotting, twisting and fluting.
Headstock motor 22kw variable 0 to 5000rpm

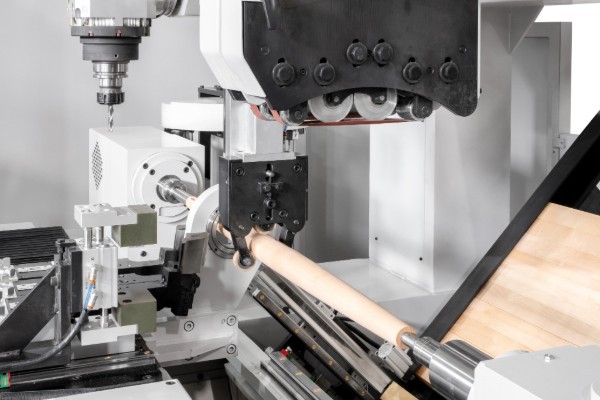

Sanding heads 1kw motor 3000rpm
3 x CNC controlled tirning gouges

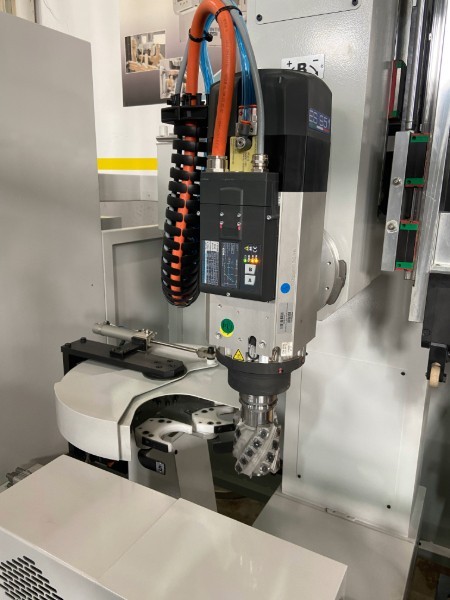

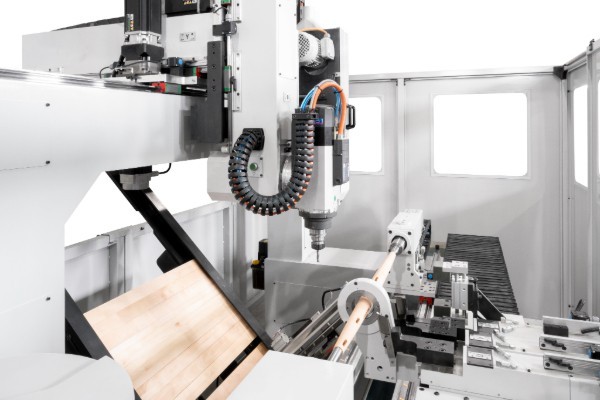

Router head 7.5kw 22000 rpm
8 position rotary toll changer HSK tool holders
CONTROLLER: Digital Osai Open controller 6-axes with EtherCAT interface. Industrial Panel PC 15,6" IP65 Frontal:
- Fanless
- Touch Screen 15.6" Resistive 1366x768
- Processor Intel Celeron J1900 Quad Core 2.0Ghz
- HD 60GB Solid State (SSD)
- 4GB RAM
Communication Ports:
- 1 x USB front + 3 x USB
- 2 x Ethernet
- 1 x RS-232/422/485
- 1 x VGA
- Audio - input / output
OS: Windows 10 IoT Enterprise - Embedded
The TRO is divided in two working zones:
LOWER ZONE:
Turning: Zone for turning with a roughing and finishing copier. It also has a CNC copier in front of the steady to cut the corners off or
for rounding the wood to the diameter of the steady ring.
Axis A: Headstock rotation
Axis P: Main carriage on which are mounted the copiers axes (U-V-W) and the steady
Axis U: Tool to cut the corners off or rounding the wood to the diameter of the steady ring
Axis V: Roughing copier
Axis W: Finishing copier.

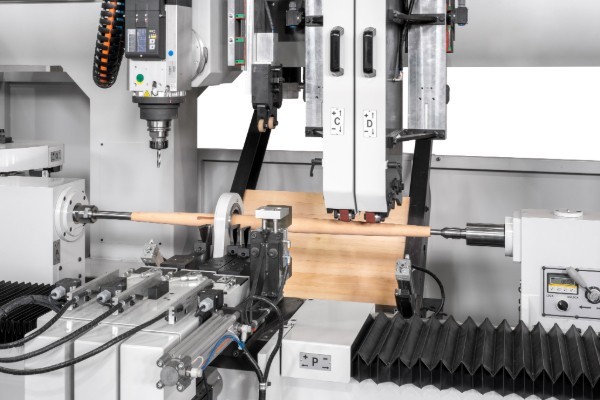

UPPER ZONE:
Sanding and router: Zone for sanding and additional drilling, milling and shaping operations.
Axis B: Rotary axis for the electro spindle
Axis C: Sanding belt 1 Axis D: Sanding belt 2 Axis Q: Tool magazine
Axis X: Main carriage on which are mounted the electro spindle and the two sanding belts copiers. Movement right-left.
Axis Y: Main carriage on which are installed the electro spindle and the two sanding belts copiers. Movement forward-backward.
Axis Z: Electro-spindle movement (Up-down)
