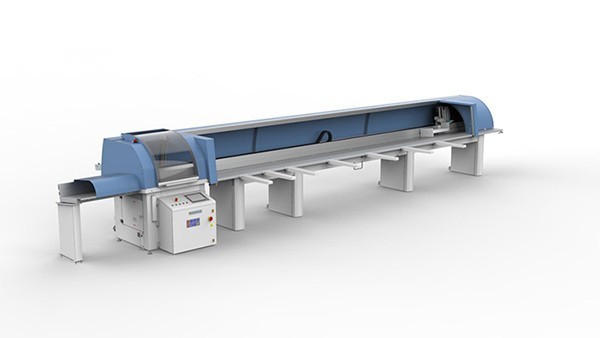

A heavy duty automatic hydraulic upstroke crosscut saw suitable for programmable and repetitive cutting of engineered timber such as I-joists, glulam, kerto and LVL
A heavy duty automatic hydraulic upstroke crosscut saw suitable for programmable and repetitive cutting of engineered timber such as I-joists, glulam, kerto and LVL.
The completely enclosed saw unit features variable cutting geometry capable of cutting upto 650mm wide or 200mm high, fitted with a 12 HP direct drive motor with hydraulic upstroke, makes it suitable for cutting the densest of timber and complete with pneumatic clamping to ensure the material is square at all times.
The market leading Matrix push feed rack and pinion system has been enhanced to a 200mm high profile with additonal linear bearings to enable weights upto 750 kgs, without comprimising on accuracy. the machine is supplied as standard with a basic cutting package with the optional Opti version with board length reading and featuring 6 optimisation modes.
The TR601 MX is fitted with a slim-line industrial panel 12" touch screen PC , Beckhoff CP62XX with state of the art technology, high performance and Windows operating system. Programming of cutting lists can either be entered manually using the simple graphic interface or downloaded from the office using JJ Smith's Design2Saw software.
9 - 14 m infeed capacity with heavy duty profileRack and pinion push feed drive systemsWindows operating system750 kg Max push feed capacityTable inclined at 8 degrees1m outfeed table12 hp self braking saw motor600mm dia saw blade650mm max cutting width (refer to chart)200mm max cutting height (refer to chart)Pneumatic clamping clampingCE safety certification
Opti version ( board length detection and full optimization )Opti Plus ( as above opti with additional defect reading )TCT saw blade 600 mmPneumatic side pressure ( left or right of blade )Out feed table ( price per 1mt )Out feed monitor 18"Electronic trap doorLabel printer - direct heat on thermal paperLabel printer - heat transfer on normal paperLabel printer - heat transfer on polypropyleneVertical Ink Jet Printer 12.7 mmVertical Ink Jet Printer 25.4 mmVertical Ink Jet Printer 38.1 mmVertical Ink Jet Printer 50.8 mm
