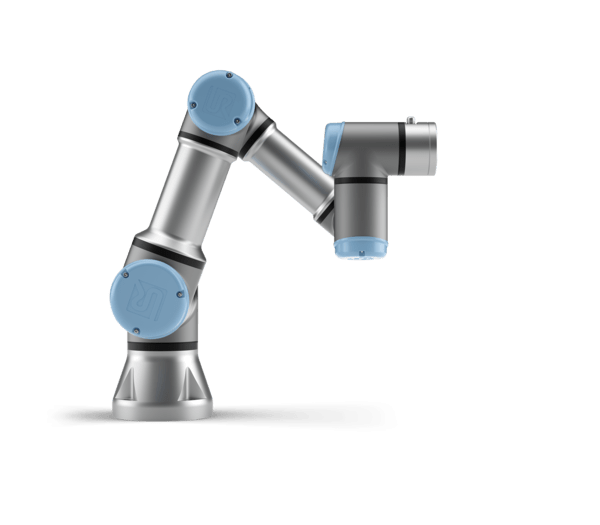

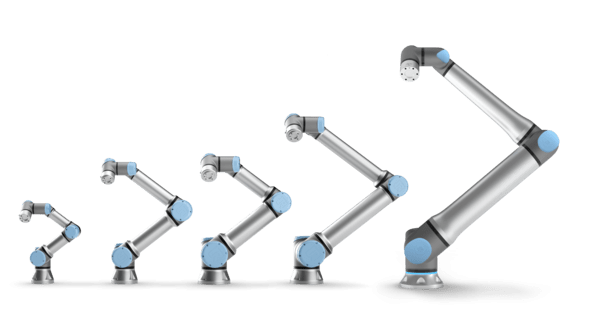

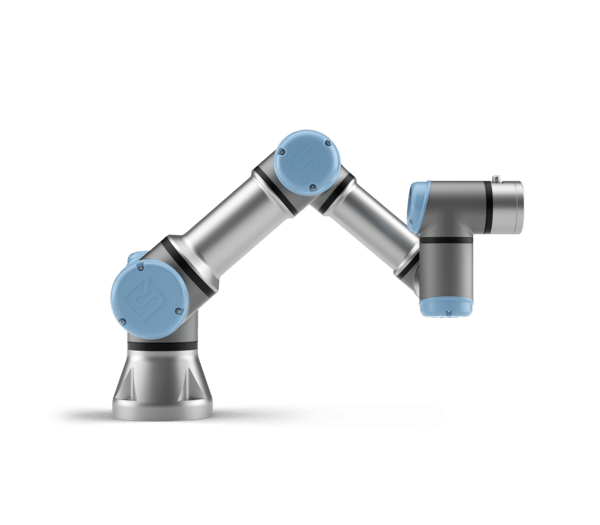

The UR3e is the smallest industrial collaborative robot arm in our portfolio. Benefit from its compact form when automating processes in tight workspaces, such as on bench-tops.
Due to its small size, the UR3e is the ideal definition of a collaborative, industrial robot. Designed to optimise efficiency in confined workspaces, the UR3e offers unmatched flexibility and precision. While the cobot can be mounted on a table working side-by-side with employees, it can also be integrated within a separate workstation for solutions including picking, assembling, and placing parts.
With its small footprint and lightweight design, the UR3e seamlessly integrates into any production environment, complementing human workers and maximising productivity. This cobot is equipped with cutting-edge safety features, ensuring safe collaboration between humans and machines.
Enhance your operations, improve quality, and stay ahead of the competition with this compact automation solution.
3 Kg Payload
500mm Reach
11.2kg Weight
Due to its small size, the UR3e is the ideal definition of a collaborative, industrial robot. Designed to optimise efficiency in confined workspaces, the UR3e offers unmatched flexibility and precision. While the cobot can be mounted on a table working side-by-side with employees, it can also be integrated within a separate workstation for solutions including picking, assembling, and placing parts.
With its small footprint and lightweight design, the UR3e seamlessly integrates into any production environment, complementing human workers and maximising productivity. This cobot is equipped with cutting-edge safety features, ensuring safe collaboration between humans and machines.
Enhance your operations, improve quality, and stay ahead of the competition with this compact automation solution.
Specification
Payload at full CoG offset and in the entire workspace - 3 kg (6.6 lbs)
Reach - 500 mm (19.7 in)
Degrees of freedom - 6 rotating joints
Programming - 12 inch touchscreen with PolyScope graphical user interface
Performance
Power consumption - 300 W
Moderate operating settings - 100 W
Safety - 17 configurable safety funcions
Certifications - EN ISO 13849-1
Certifications - PLd category 3
Certifications - EN ISO 10218-1
Force sensing, tool flange
Force, x-y-z
Range - 30.0 N Precision - 2.0 N Accuracy - 3.5 N
Torque, x-y-z
Range - 10.0 Nm Precision 0.1 Nm Accuracy - 0.1 Nm
Movement
Working range
Base - ± 360°
Shoulder - ± 360°
Elbow - ± 360°
Wrist 1 - ± 360°
Wrist 2 - ± 360°
Wrist 3 - Infinite
Maximum speed
Base - ± 180°
Shoulder - ± 180°
Elbow - ± 180°
Wrist 1 - ± 360°
Wrist 2 - ± 360°
Wrist 3 - ± 360°
Features
IP classification - IP54
ISO 14644-1 class cleanroom - 5
Noise - < 65 dB(A)
Robot mounting - Any Orientation
I/O Ports Digital in - 2
I/O Ports Digital out - 2
I/O Ports Analog in - 2
Tool I/O power supply voltage - 12/24 V
Tool I/O power supply - 600 mA
Physical
Footprint - Ø 128 mm
Materials - Aluminium, Plastic, Steel
Tool flange connector type - M8 | M8 8-pin (female), EN ISO-9409-1-50-4-M6
Cable length (robot arm) - 6 m (236 in)
Weight (incl. cable) - 11.2 kg (24.7 lbs)
Operating temperature range - 0-50 °C (32.122 °F)
Humidity - 90 %RH (non-condensing)
