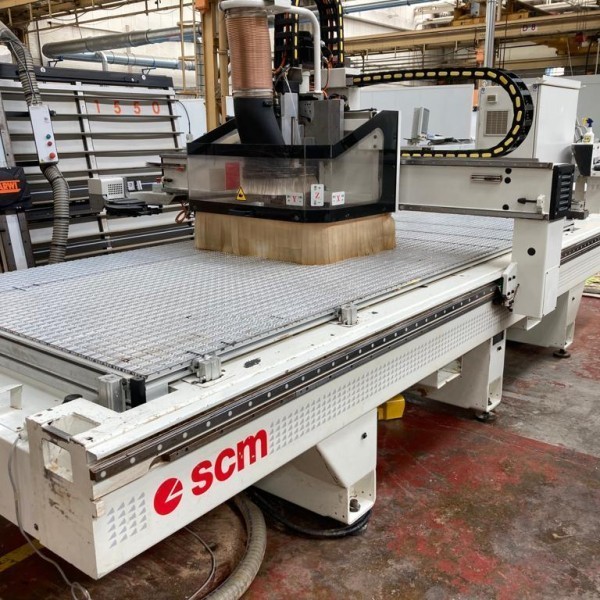

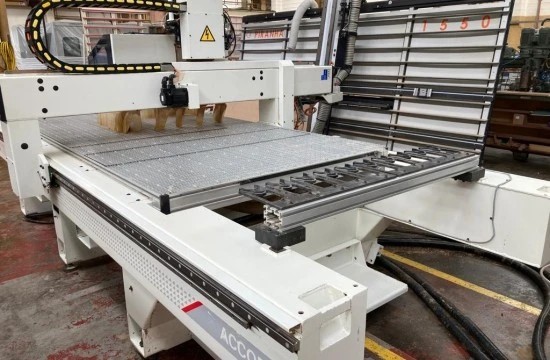

3650 x 1560mm Matrix Table4455mm x axis stroke [ for routing ]1930mm y axis stroke [ for routing ]250mm z axis stroke150mm Max panel clearanceX / Y Axes vectorial speeds 43m/minZ axis speed 15m/min

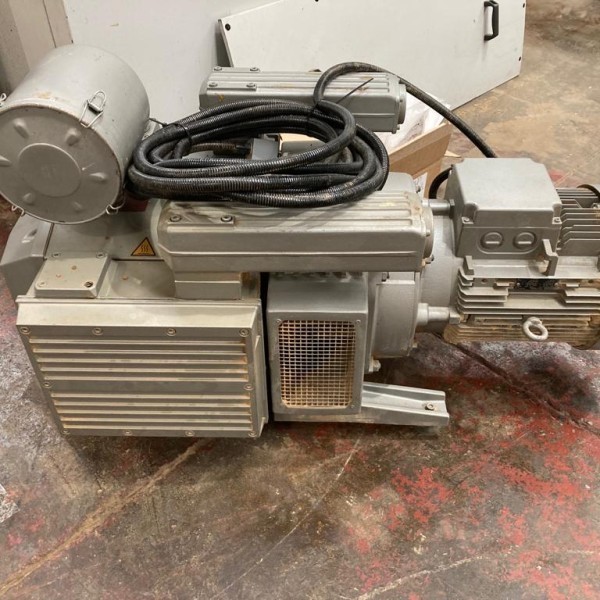

Power 2000 Routing Unit 9 / 10hp for HSK63F toolholders. Speeds from 12000 to 18000rpm250m3 / hr vacuum pumpTelesolve long distance remote diagnostic system
Fitted with following options

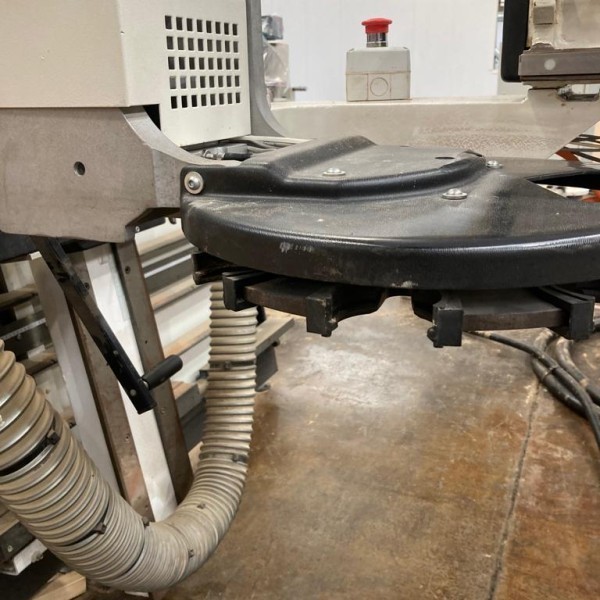

Interpolating Z axisCentralised dust extraction systemPre-setting for angle driven headsTR10 Fixed 10 position toolchanger [ mounted on side of table ]R8 Rapid 8 position rotary toolchanger [ mounted on operating unit support beam ]2 x Electronic detecting systems for panel height and tool length3 x Additional rear stopsAutomatic centralised lubrication

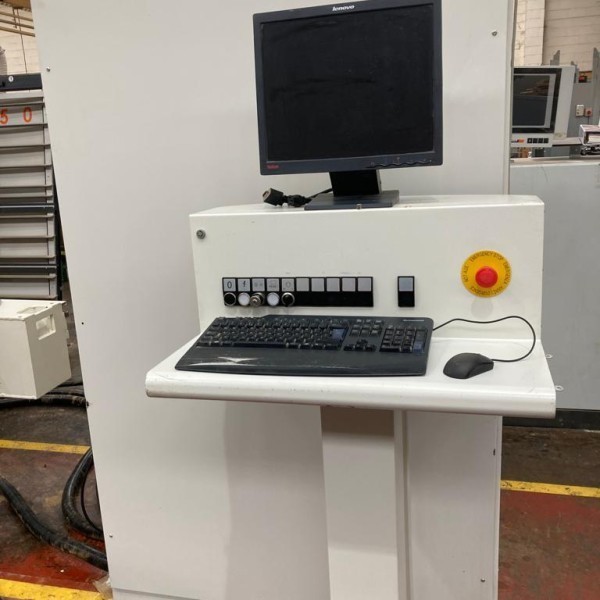

" PC Office " Console for easy movement around machine. IncludingWindows XP operating system15" Colour monitorKeyboardCD Rom drive40 Gbyte hard disk128MB Ram
Serial nr - AA2 / 000268?Year - 2008 CE CompliantCondition - Good
