Intorex TC1000 CNC Machining Centre

A 4 axis between centres CNC, with inbuilt sanding, and automatic loading for shaped furniture parts.

  • Versatile
  • Flexible
  • Shaping, drilling, sanding

About this Product

The TC1000 is a highly flexible and versatile machining centre that can be used for producing a wide range of different design furniture components such as sofa feet, chair legs, table legs, special designs etc. As well as actually producing the shaped component, the TC can also machine / drill for the fixing points. As standard the machine is equipped with 4 interpolated axis, an automatic hopper feed loading device, programmable milling head for shaping, horizontal router/drilling head and vertical router / drilling head and a flat belt sanding unit, all of which are controlled through the CN. Also as the component is held between centres, it can be machined and sanded on all faces without the need for any manual movement / intervention by the operator. Programming is via the INTOREDIT 3 D design software which is also included as standard.

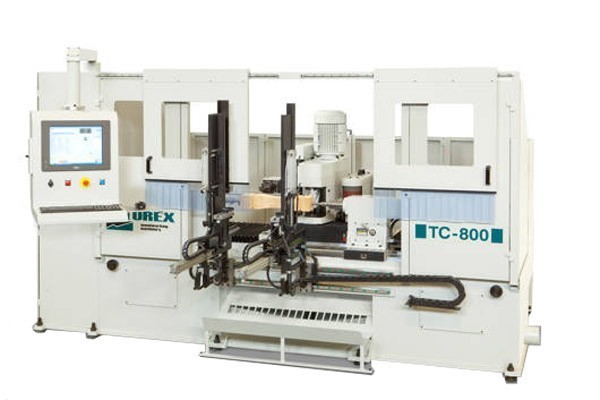

Intorex Tc1000 Cnc Machining Centre For The Production Of Shaped Table Chair Legs Sofa Feet And Other Furniture Parts
Intorex Tc1000 Cnc Machining Centre For The Production Of Shaped Table Chair Legs Sofa Feet And Other Furniture Parts

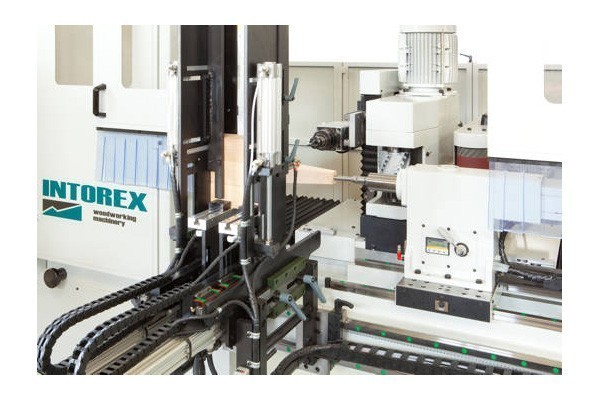

Intorex Tc1000 Cnc Machining Centre For The Production Of Shaped Table Chair Legs Sofa Feet And Other Furniture Parts 2

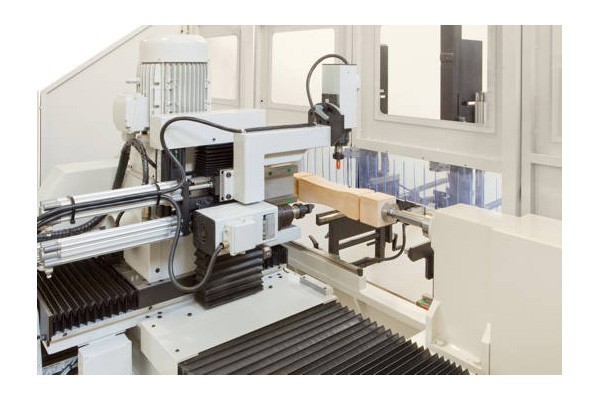

Intorex Tc1000 Cnc Machining Centre For The Production Of Shaped Table Chair Legs Sofa Feet And Other Furniture Parts 3

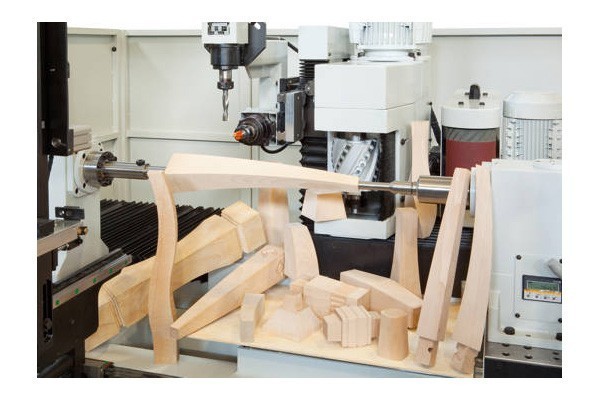

Intorex Tc1000 Cnc Machining Centre For The Production Of Shaped Table Chair Legs Sofa Feet And Other Furniture Parts 4
Specification
  • Machining centre TC-1000 of 4 CNC interpolated axes.
  • The machine is equipped with feeding unit for working in automatic cycle. It has an horizontal and vertical head for boring-milling (axis Z).

Digital CNC controller:

  • 4-axis with Ethercat interface.
  • Fanless industrial panel PC with 15" resistive touch screen.
  • Memory RAM4Gb. HDD 60 Gb SSD (Solid State Drive) Ports I/O
  • USB: 1 x Front, 4 x Posterior
  • Network (LAN): 1 x Ethernet
  • 1 x RS-232
  • O.S. Windows 7 Embedded Standard (English)
  • IntorEDIT 3D. CAD-CAM software developed by INTOREX to design the pieces and post-processing of the mechanization program
  • Headstock (axis A), servomotor of 3 Kw with interpolation and positioning at 360º, and rotation speed of 0 - 200 r.p.m.
  • Shaping head (axes X-Y) equipped with motor of 7'7 Kw and rotation speed up to 6000 r.p.m. (shaping milling tool not included).
  • Sanding head (axes X-Y) equipped with motor of 2'2 Kw and rotation speed of 3000 r.p.m.
  • Horizontal head for boring-miling (axes X-Y-Z) equipped with motor of 5.6 Kw and rotation speed up to 18000 r.p.m. Manual tool attachment with collet diam. 20 (tools not included)
  • Second vertical head for shaping-boring-slotting. It includes the abillity to be programmed (inclined) in two different positions. Max angle 20 degrees. Angle stop to be manually set. Motor of 2 Kw and rotation speed up to 18000 r.p.m. Manual tool attachment with collet ER25 type. Maximum diam 16 mm (tool not included)
  • Automatic feeding unit with capacity up to sq. 100x100 and max. length 1000 mm.
  • Rear, front and side CE safety guarding. Front and rear with electrically interlocked doors.
  • Pneumatic "anti-shock" nylon brush that prevents any damage of the piece in its unload

Multiple extraction mouth of 2 positions:

  • Diameter of the input main mouth: 200 mm.
  • Diameter of the 2 output mouths: 125 mm.
  • Headstock support for interchangeable points
  • Cylindrical headstcok diam. 30
  • Tailstock diam. 15
  • Machine weight 3250kg
