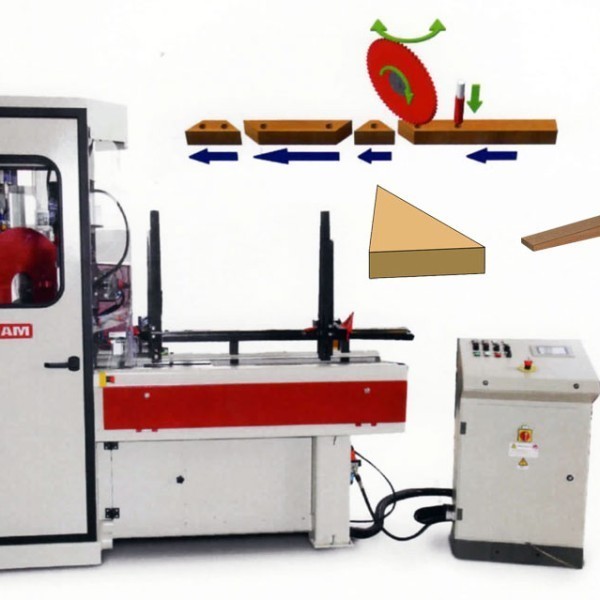

Camam TAC1 Automatic Angular Crosscut

About this Product

A versatile heavy duty automatic cut off saw for making straight or angled cuts in furniture components. Equipped with an automatic hopper feed for continuous production, the machine can be mechanically set to make a straight or angled cut as preselected by the operator.

The feeding and advancement of the timber is either mechanical or programmable through NC controller. (Depending on model) When the optional wider clamping width is specified the machine is also suitable for cutting stair wedges, door wedges or stair fillet pieces. As the saw unit is totally enclosed and timber feed is automatic the machine is very safe to operate.

Average approx. production output for stair wedges would be 750/800 per hour.

Camam TAC1 Mechanical CA Automatic Angle Cut Off Saw For Chair Corner Blocks, General Furniture Components Or Stair/Door Wedges, Glue Blocks

Specification

Automatic hopper feeder and loader 1350mm length capacity (longer on request)
Adjustable feed stroke- pneumatic / mechanical - standard model
Piece positioning device with double pneumatic clamps.
3KW motor with 500mm blade. 2800 rpm.
Mechanical blade angling 0 degrees / + / - 60 degrees.
Minimum infeed length 200mm / maximum 1350mm.
Minimum section 20mm wide x 10mm thick / maximum 200mm wide x 100mm thick
Movement / feeding of timber adjustable 1 to 395mm
PLC control
Maximum production 500 - 800 pieces per hour (depending on length of cut).
Pneumatic head stroke.
CE safety enclosure.
Overall dimensions 2450mm x 1000 x 1900mm.
