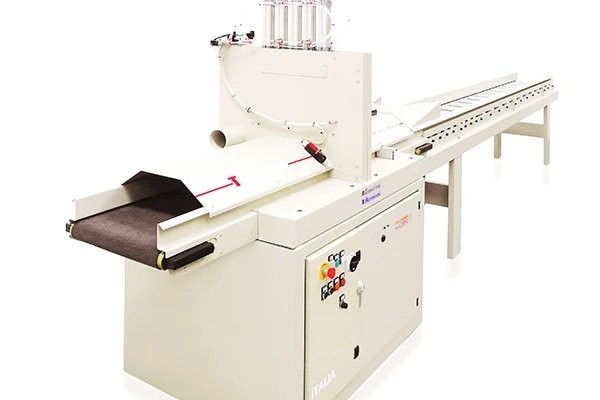

Automatic PLC controlled rapid speed crosscut saw, designed to produce firewood / kindling recovered from random / waste material.
Automatic PLC controlled rapid speed crosscut saw, designed to produce firewood / kindling recovered from random / waste material. The machine is equipped with a Ø 550 mm saw-blade with pneumatic vertical saw stroke, Smart system blade change with quick release nut and anti locking device, adjustable cutting speed from 0,3 to 1,5 seconds.

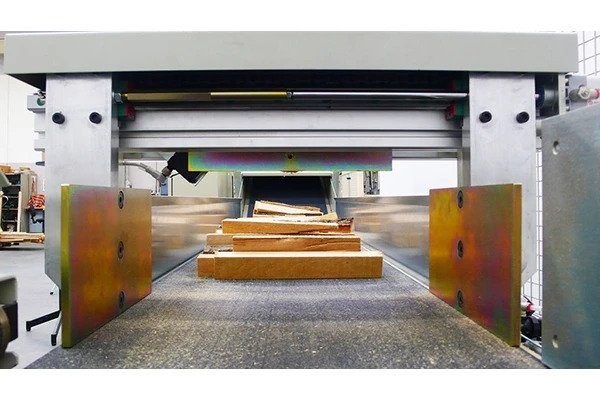

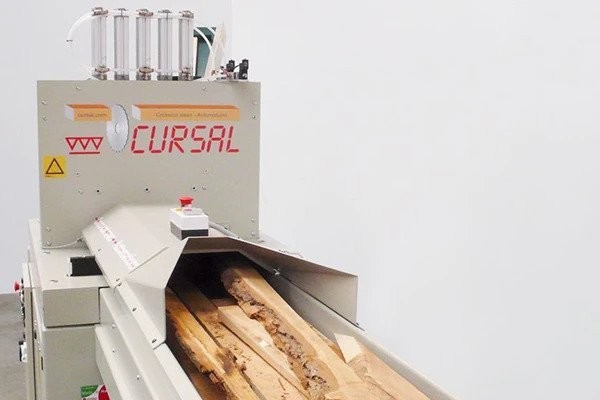

The structure is built in such a way to channel the material through the cutting zone, by means of the 2 x motorized low wear belts, one before and one after the saw blade. The material is clamped by a special multi press with 5 independent cylinders to hold the material firmly during the cutting operation, the length of the piece can be adjusted via a timer, There are various optional extras available such as the motorized in-feed conveyor and 45 degree wast conveyor.
Saw blade motor 5.5 hpSaw blade diameter Ø 550 mmCutting time adjustable from 0,3 to 1,5 secondsCutting capacity see cutting diagramIn-feed length 500 - 6000 mmCutt lengths 100 - 750 mmFeed belt length 2 x 1000 mmFeed speed adjustable from 5 to 50 m/minPress with 5 x cylinders, shock absorber and linear guideDust extraction 1 x Ø 100 and 1 x Ø 140 mm

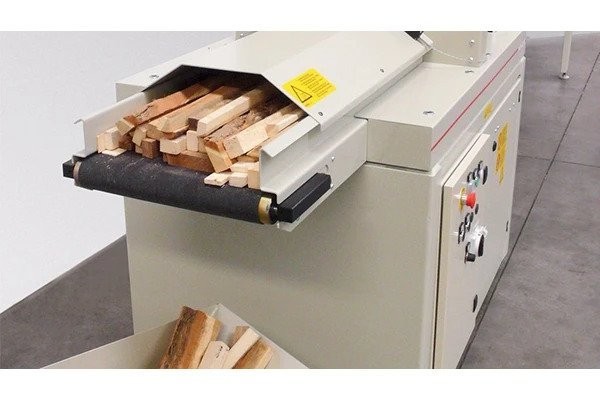

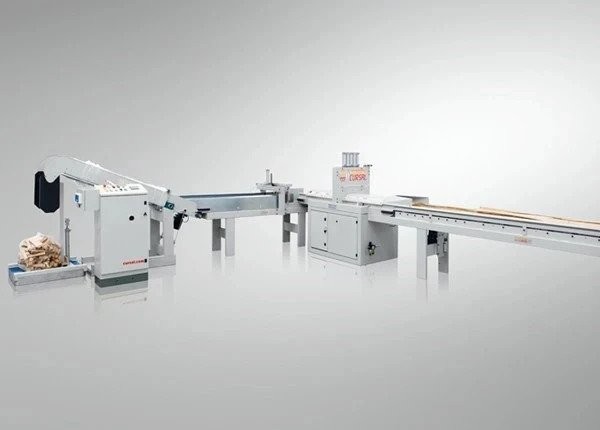

RALM Infeed motorised roller 4000 x 550 mm with side barriersRALM Infeed conveyor belt 4000 x 500 with side barriersSaw blade Ø 550 mm HM steel ( Z = 120 ) Ø 35 mmTSS 45° Tilted Waste Belt 2500 x 520 mmTSS 45° Tilted Waste Belt 2500 x 420 mm
