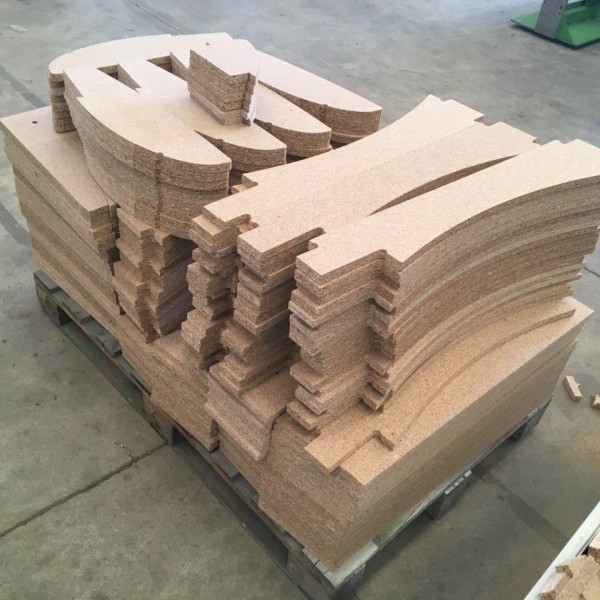

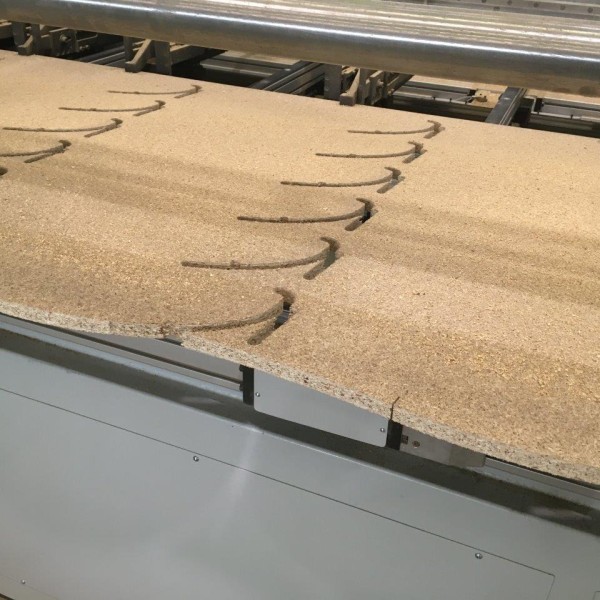

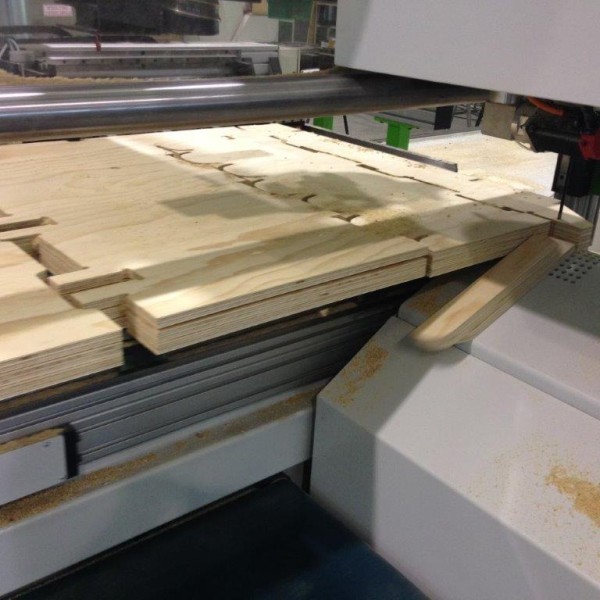

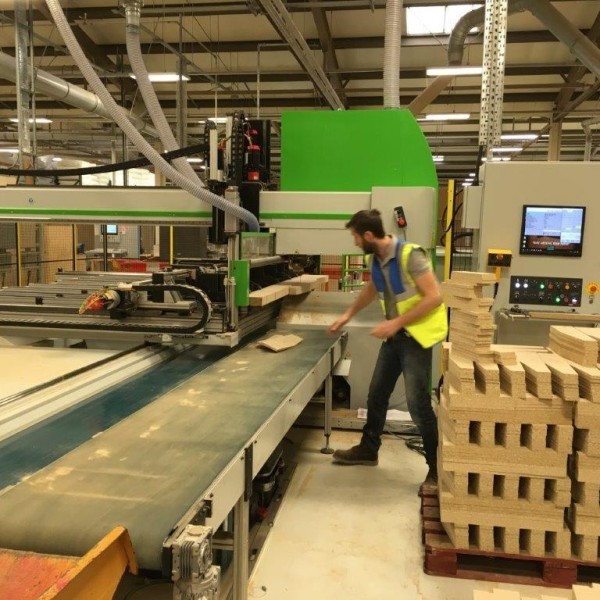

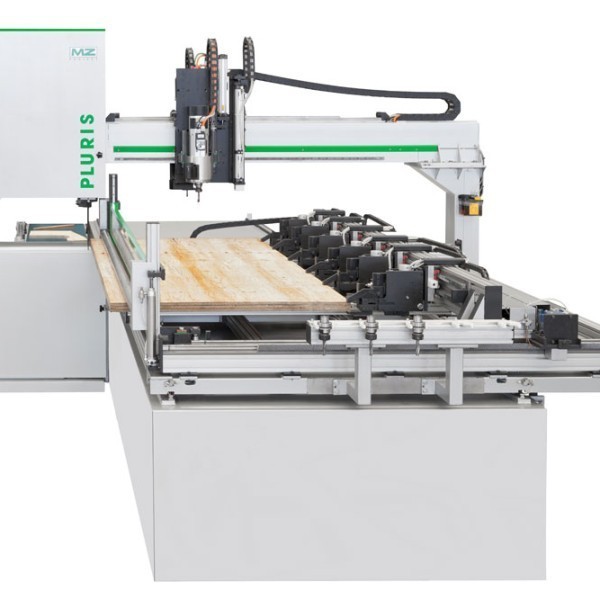

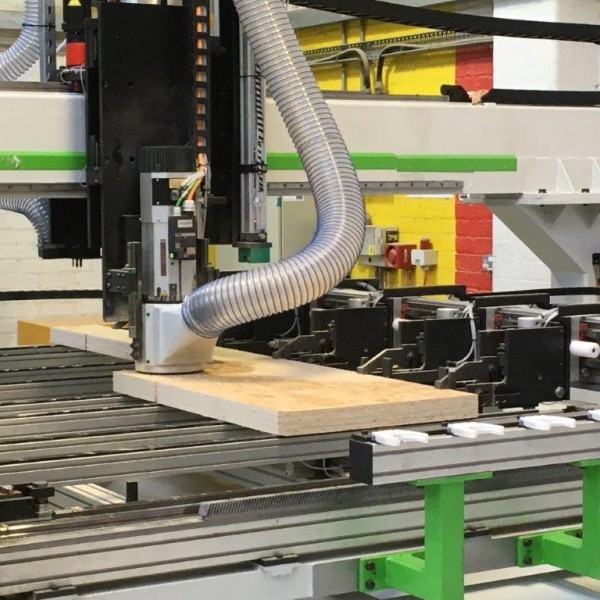

The Pluris is a CNC working centre, specifically designed for the volume production of sofa and chair frame parts. The unique feature of the Pluris is that it combines a CNC controlled bandsaw that works in conjunction with an independent CNC controlled router head. Unlike most conventional CNC machining centres, the Pluris does not use a vacuum to hold the sheets to be cut, instead a series of automatic clamping devices are used. The end result is a machine that is highly productive as several sheets can be stacked, cut and machined at the same time. Also thanks to the bandsaw the cutting speeds are increased, plus there can be significant savings on material usage as when using the bandsaw a much tighter nested program can made.

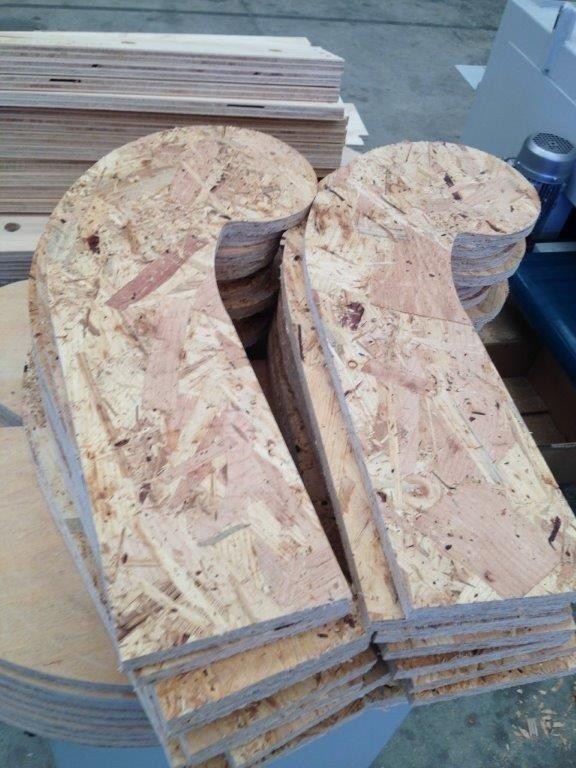

Options include an automatic lift table and feeding system, a dedicated CNC drilling head, 5 position linear tool changer for the router head, automatic CNC control positioning of the workpiece clamps and tables. As with all MZ CNC machines FANUC drive and control systems are standard. The Pluris can be used for cutting a wide range of material including chipboard, OSB, MDF plywood, solid or laminated timber, fibre board and other composite materials. Many of the main UK sofa and chair frame manufactures have installed Pluris machines.
Standard cutting capacity 2500 x 1250mmMax cutting height with bandsaw 150mmMax machining depth with router - using 14mm dia cutter - 60mmAngle of cut with bandsaw + / - 90 degrees.Motor hp of bandsaw 15hpCast aluminium flywheels 900mm dia.Minimum radius of cut 50mmDepth of curve (throat on bandsaw) 800mmPneumatic blade tensioning.Top and bottom blade guidance system4 x pneumatic workpiece clamps.6 x support tables.Electronic lubrication system.Internal conveyor belt for removal of cut waste / with dust extraction connection points.Router head HSD- 9kw with HSK63FE32 connection. RPM 7000 - 24000 RPMWorking area of router head 2500 x 1200mmCutting height 60mmOverall weight 5300kg

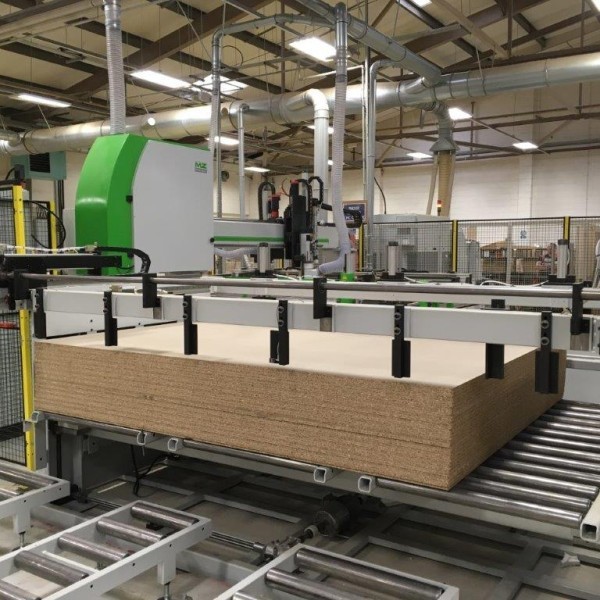

Lift table with auto feeding 2500 x 1250 (or 1550) capacity, pack height 600mm/ 2000kg
Lift table with auto feeding 3100 x 2100 capacity, pack height 600mm/ 2000kg
Extra pneumatic workpiece clamp (each)
Extra support table (each)
Bandsaw flywheels x 3 to give 1200mm throat capacity
Plus package including 5 position tool changer for router, clamps and support tables positioning by NC
NC boring unit with 5 spindles in line - working area 2500 x 1200, drilling depth 70mm, 3hp motor
Circular saw unit- working area 2500 x 1200, cutting depth 60mm, 3hp motor 350mm blade dia
Special configurations / sizes - prices available on request
Alphacam Software - advanced one post - first licence
Alphacam Software - advanced multi post -first licence
Alphacam one post - second licence
Alphacam multipost - second licence
