Pade Velox 5 Axis CNC Machining Centre

A Compact 5 Axis CNC Machining Centre Suitable For Complex Machining On Solid Wood And Composites

About this Product

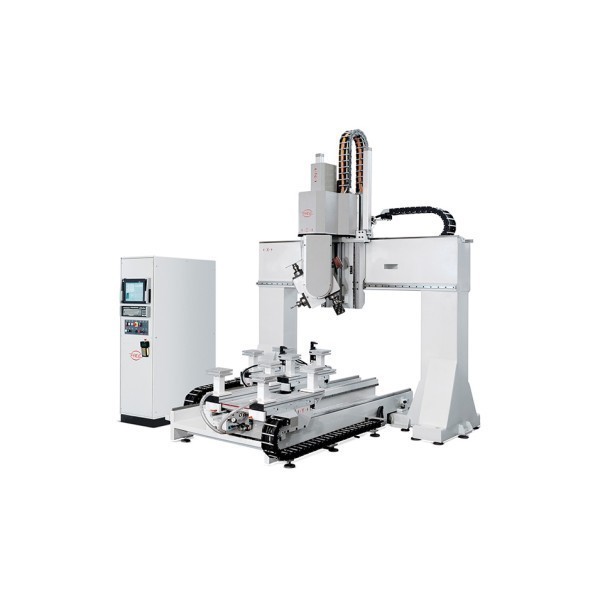

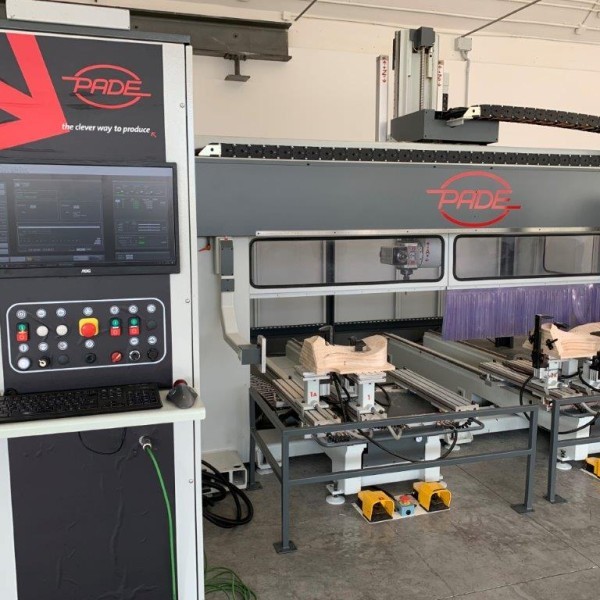

A compact, but extremely well built and engineered CNC 5 axis work centre that allows for the complete machining of shaped parts that traditionally have been made on several different machines.

The Velox is available with a number of different table and router head configurations to suit customers individual production requirements. Clamping can be either vacuum or pneumatic or a combination of both.

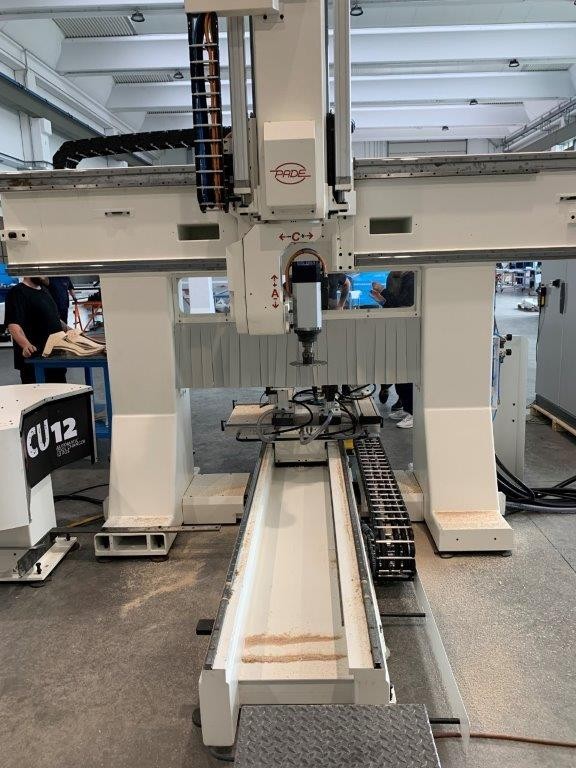

  • Gantry Style Construction Giving Maximum Stability
  • 4 Spindle Router Head
  • E-lab Simulation And Anti- Collision Software

Contact A Specialist Add to Quote
Finance Available
Specification

Specification

  • Electro welded thick solid steel plate construction to give maximum stability
  • Velox Solo has single table size of 1100 x 885mm
  • Velox twin has twin shuttle tables each 1100 x 855 – tandem loading

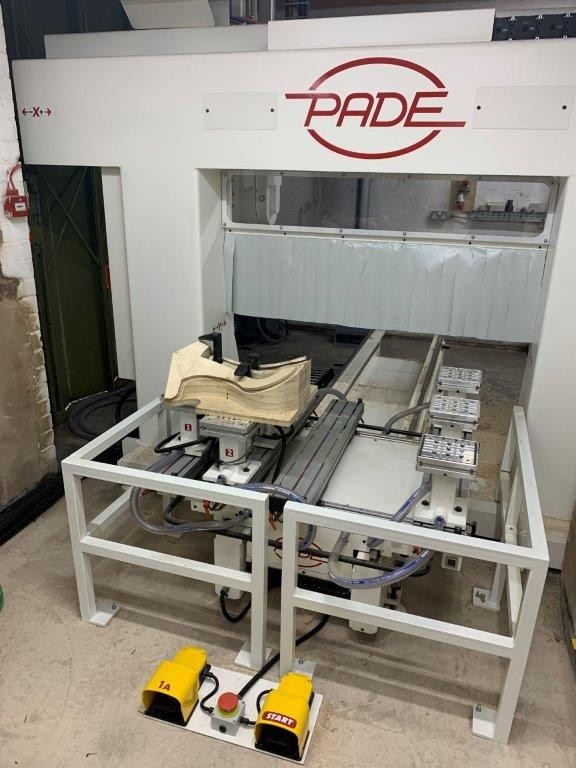

  • Work tables can either be matrix or rail
  • Z axis capacity 750mm

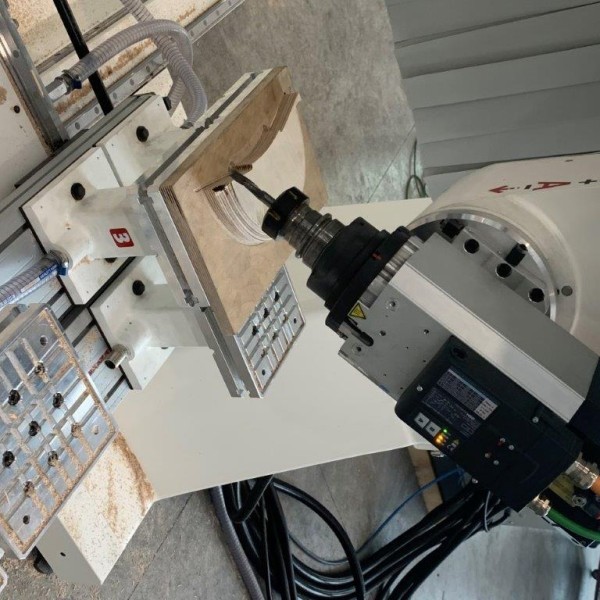

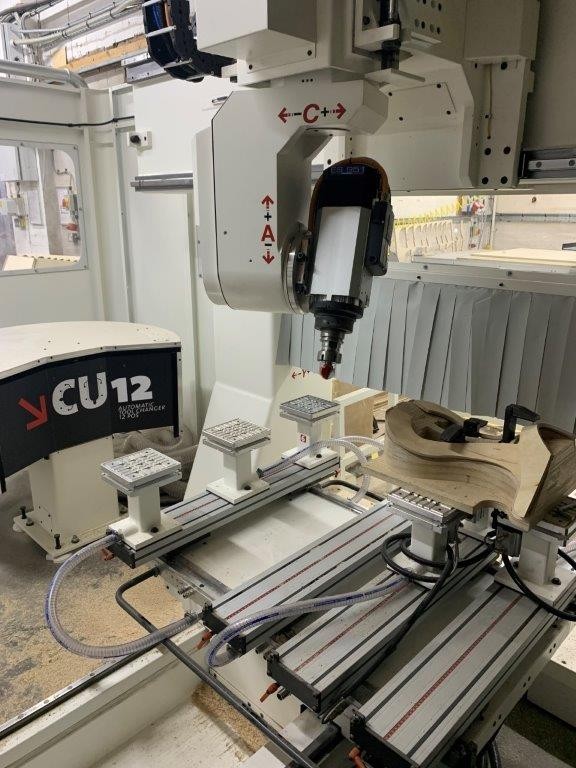

  • T 2+2 router head with 4 spindles
  • 5 controlled CNC axis A, C, X, Y and Z
  • Optional automatic hopper feed loading

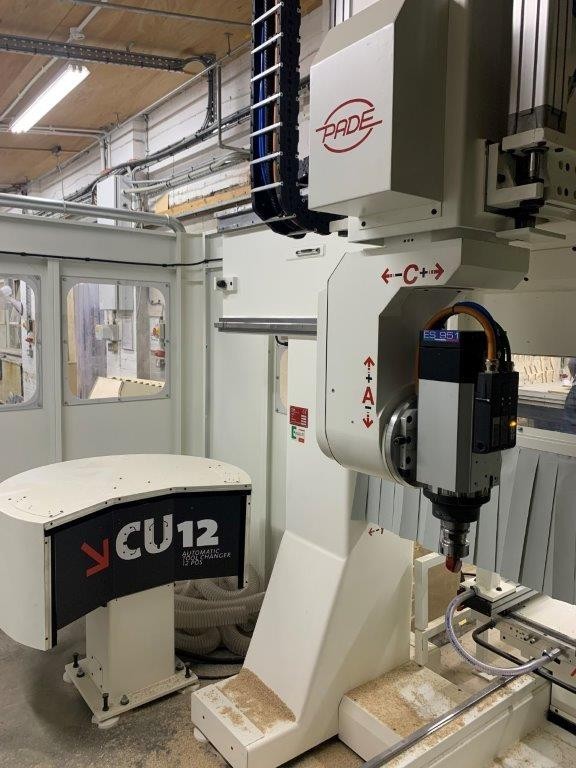

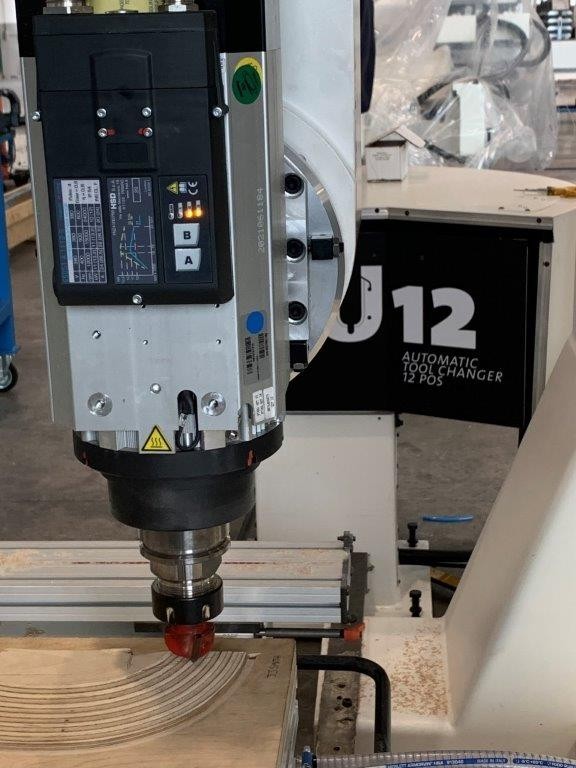

  • Optional 12 position rotary tool change ( only with head TC1U)
  • Optional automatic movement of support tables

  • Fully enclosed safety enclosure
  • Free standing electrical cabinet

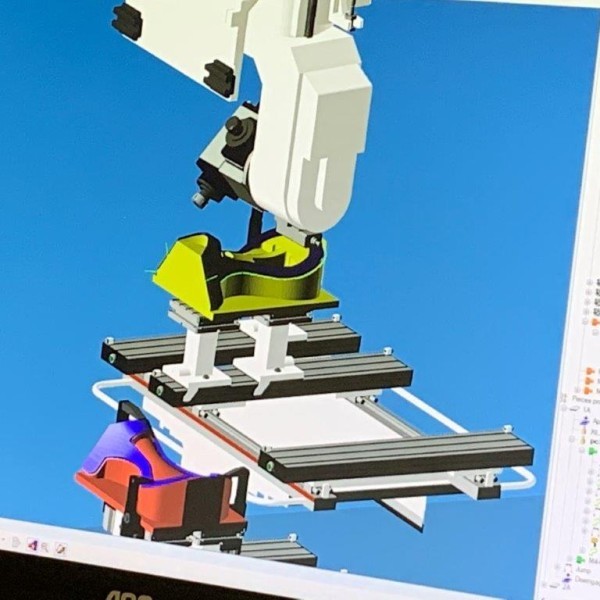

  • E-Lab simulation and anticollision software
  • Alphacam 5 axis CADCAM software
