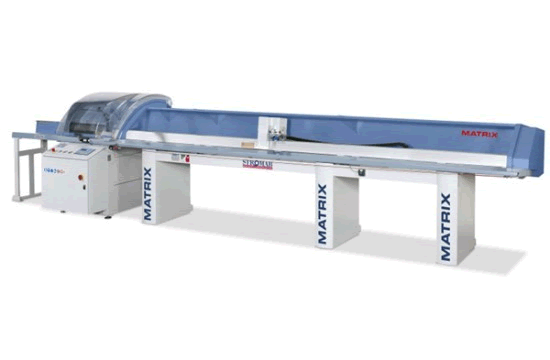

A high speed, fully programmable push fed cross cut saw suitable for furniture, joinery, packaging, sheds of TF.

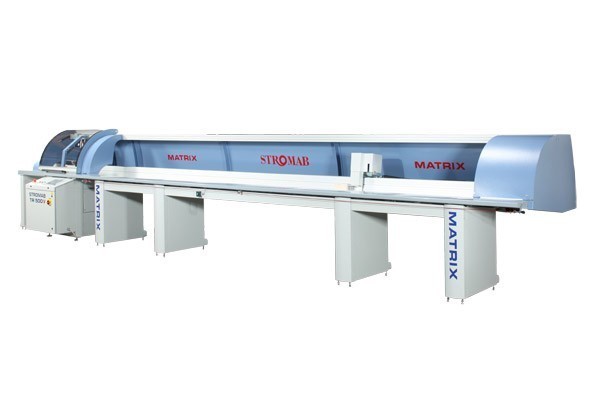

The Fast 500 is the latest in the Stromab range of automatic crosscutting machines, with a high speed upstroke saw action which depending on cutting patterns can give up to 40% more production than the standard machine. The machine is primarily designed for programmable and repetitive cutting from standard and / or random lengths of timber.
The new high speed pneumatic saw unit with variable speed control, can also be set to limit the saw stroke when cutting smaller boards, helping to increase production even further.The pusher is fitted with a heavy duty rack and pinion drive feeding system, for fast and accurate positioning giving a high level of repeat cutting accuracy, the pusher is raised with a pneumatic cylinder for its return to its loading position, allowing the operator to prepare the next pack of timber on the table without having to wait for the pusher to return to its idle position.

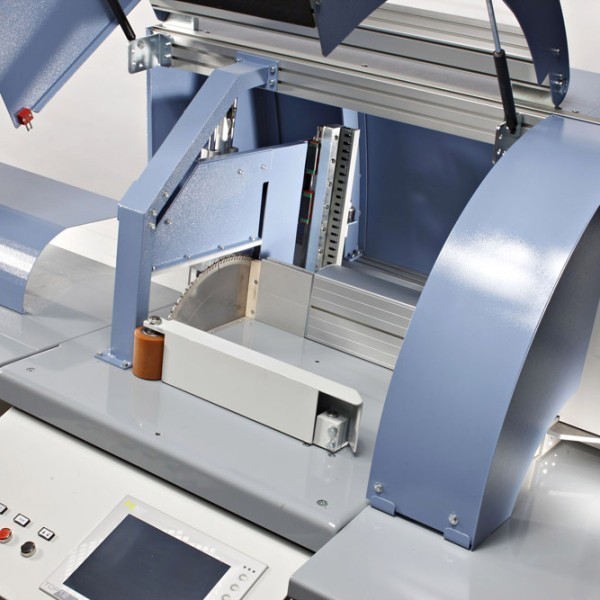

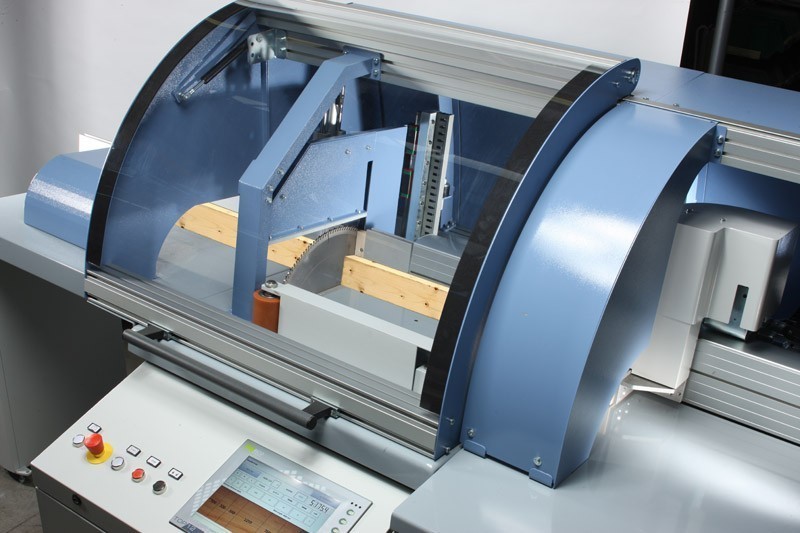

The infeed and outfeed tables are of all steel construction meaning even heavy sections or packs of timber can be processed. The saw unit and clamping area is totally enclosed by a clear hinged electrically interlocked hood that while allowing the operator a clear view of the cutting area still gives complete protection. additional safety features include full length guarding of the rear of the pusher system, whilst there is a safety pull cord running along the length of the front infeed table.

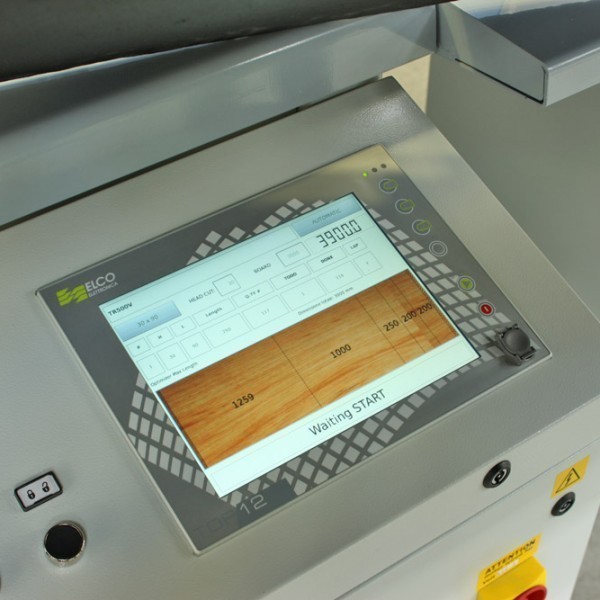

Programming and entering of cutting lists is simple with the on board Top 12 control unit. With a 12" colour touch screen display, offering a modern, robust and reliable control system with many innovative features and is ideally suited for a factory or workshop environment. As standard the machine now offers USB, ethernet and 3 levels of optimisation including "board sequence" ideal for repetitive cutting. The Matrix OPTI version offers an additional 3 optimisation criteria including "minimum waste" and automatic board length measuring suitable for random length boards. The Matrix DEFECT version offers all optimisation criteria, length measuring, a defect removal camera and timber grading.
To date we have supplied over 250 Matrix saws in to the UK, with a number of customers installing several machines.
Self braking motor 10hpSaw blade diameter 500mmMax cutting width 390mm ( refer to chart )Max cutting height 150mm ( refer to chart )Pusher unit 3000 to 15000mmPrecision rack and pinion drive giving a high level of repeat cutting accuracy.Pneumatic rising of the pusher at the end of cutting cyclePositioning speed 100m/minPositioning accuracy + /- 0.4mmElco TOP 12 control unitTouch screen with 12" colour displayPneumatic side pressureExternal pneumatic top pressure1m outfeed tableDust outlets 2 x 100mm diameter

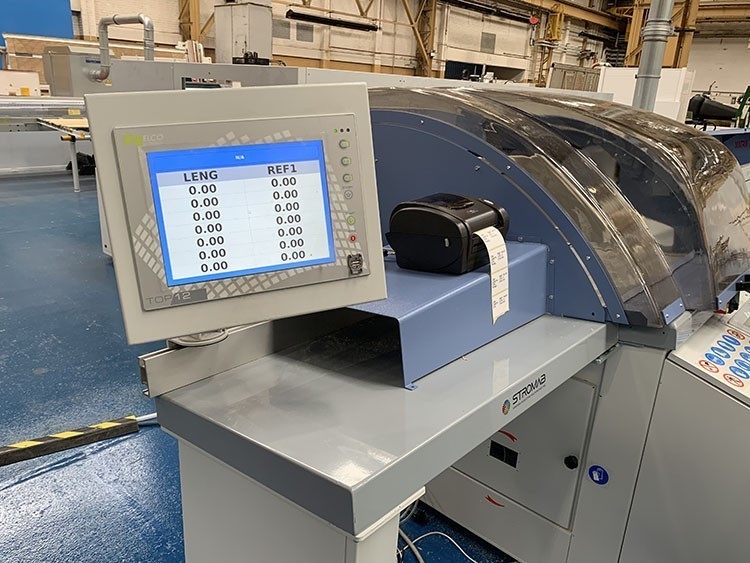

Matrix OPTI - Full optimisation and length measuringMatrix OPTI PLUS - Full optimisation, length measuring, defect removal and timber gradingOutfeed table per mtTCT saw blade7" Outfeed monitor & Software for displaying cut component informationLabel printer (heat transfer) on thermal paperLabel printer (heat transfer) on normal paperLabel printer (heat transfer) on polypropylene paperHigh speed inkjet cartridge printer - 12.7mm VerticalHigh speed inkjet cartridge printer - 25.4mm VerticalPneumatic side clampAutomatic loader 4000Automatic loader 5000Automatic loader 6000Automatic loader 7000Out feed sorting belt 3000 mm with 3 rapid ejectorsExtended belt per meterAdditional rapid kickerStacking rollersDownload / conversion software ( price on request )
