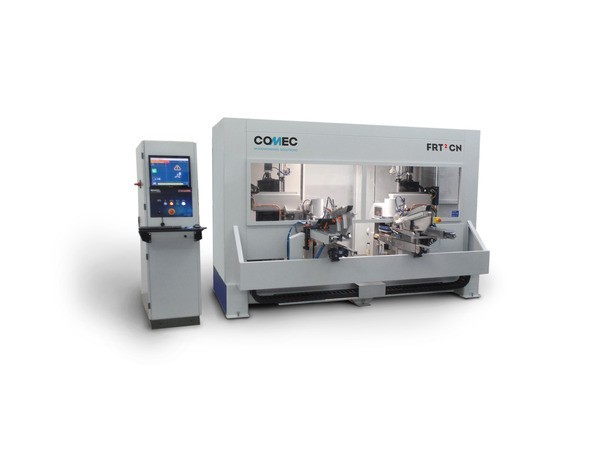

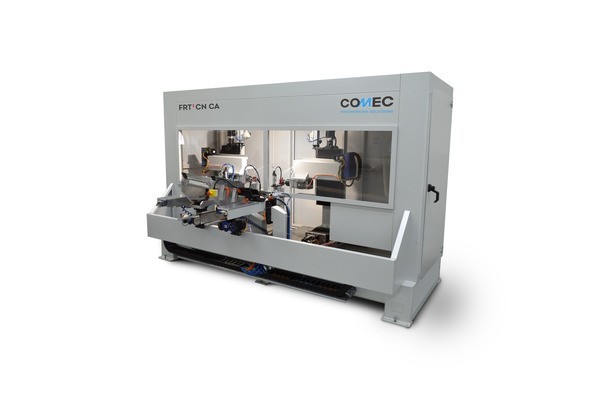

Comec FRT CN 1000 - Double End CNC Machining Centre

Fully automatic hopper fed CNC machining centre for high-volume tenoning, shaping, slotting, cutting and drilling.

About this Product

The Comec FRT CN 1000 Double End CNC Machining Centre is the pinnacle of high-volume production machinery, designed to handle tenoning, shaping, slotting, cutting, and drilling with unmatched precision and efficiency. This fully automatic, hopper-fed CNC machine is perfect for manufacturers looking to elevate their production capabilities with a versatile and flexible solution.

Built to last, the FRT CN 1000 boasts a robust frame constructed from thick, solid steel electro-welded plate, ensuring maximum stability during operation. The left-hand shoulder is fixed, while the right-hand shoulder is manually moveable, featuring an LCD readout for precise width setting and pneumatic locking. This dual-ended operation significantly boosts productivity by allowing simultaneous processing from both ends.

Key specifications include horizontal automatic hopper feed with lower piece return conveyor belts for seamless material handling, and 1+1 lateral electro spindles rated at 7kW each with ISO 30 quick tool change. The electro spindles are CNC controlled across three axes, offering unparalleled versatility and flexibility in machining operations.

The FRT CN 1000 is equipped with a standalone electrical cabinet featuring an industrial numerical colour graphic controller. The resident software supports parametric programming, assisted by 3D models and macro templates, simplifying the setup process and reducing downtime. For added safety, the machine is enclosed in a safety enclosure that complies with CE norms.

  • Boost productivity with dual-ended operation
  • Automatic hopper feed and piece return conveyor belts
  • Bespoke configurations available
Specification

Technical Information

Frame in thick solid steel electro welded plate to give maximum stability

L/H shoulder fixed

R/H shoulder moveable manually with LCD readout for width setting and pneumatic locking

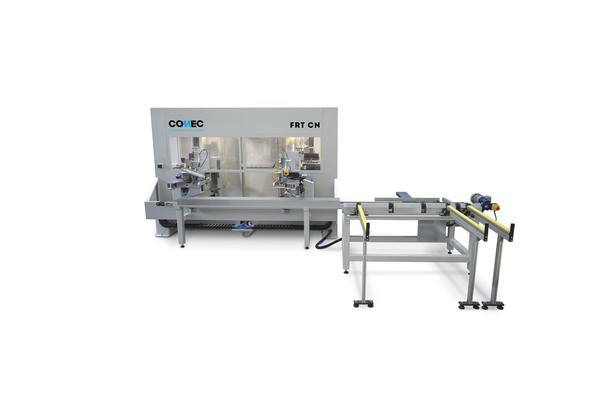

Horizontal included automatic hopper feed, with lower piece return conveyor belts

1+1 lateral electro spindles 7kw each with ISO 30 quick tool change

Movement of electro spindles by CN in 3 axis

Stand alone electrical cabinet with industrial numerical colour graphic controller

Resident software with parametric programming assisted by 3D models and using macro templates.

Safety enclosure in accordance with CE norms

Power & Air

32 amp installed power

6 bar air supply

4 x 150mm dia extraction points

Overall Dimensions

Approx overall dimensions 3500 x 2000 x 2250mm high
