Flexible and versatile machining centre

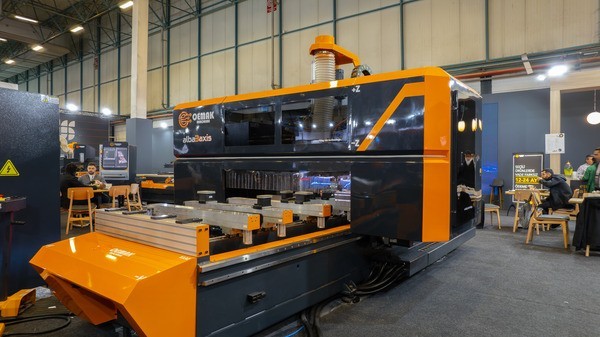

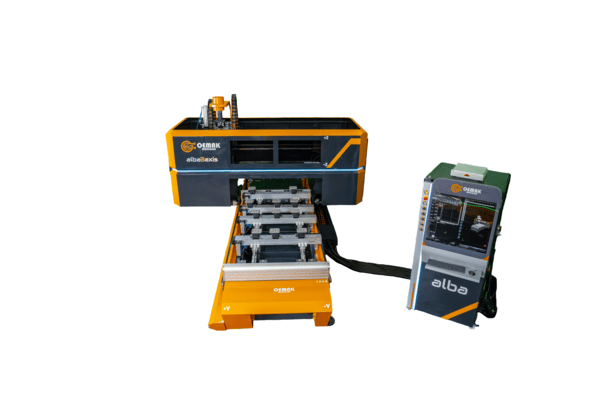

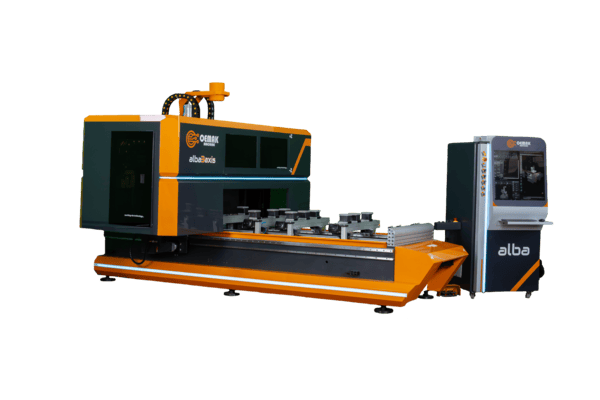

The Oemak Alba 3-Axis CNC Machining Centre is a state-of-the-art, high-precision machine designed to meet the demands of complex and intricate machining applications.
Offering advanced 3-axis capabilities, it allows for the simultaneous movement of the tool and workpiece along multiple axis, providing enhanced versatility and accuracy.
Furniture and door manufacturing
Ideal for the industries of general furniture, joinery, door and door frames and composite materials, the Oemak Alba excels in producing parts with complex geometries and tight tolerances.
Equipped with robust construction, intuitive controls, and high-speed performance, this machining centre ensures superior quality, efficiency, and reduced cycle times.
Flexible and versatile machining centre
The Oemak Alba 3-Axis CNC Machining Centre is a state-of-the-art, high-precision machine designed to meet the demands of complex and intricate machining applications.
Offering advanced 3-axis capabilities, it allows for the simultaneous movement of the tool and workpiece along multiple axis, providing enhanced versatility and accuracy.
Furniture and door manufacturing
Ideal for the industries of general furniture, joinery, door and door frames and composite materials, the Oemak Alba excels in producing parts with complex geometries and tight tolerances.
Equipped with robust construction, intuitive controls, and high-speed performance, this machining centre ensures superior quality, efficiency, and reduced cycle times.
Technical Information

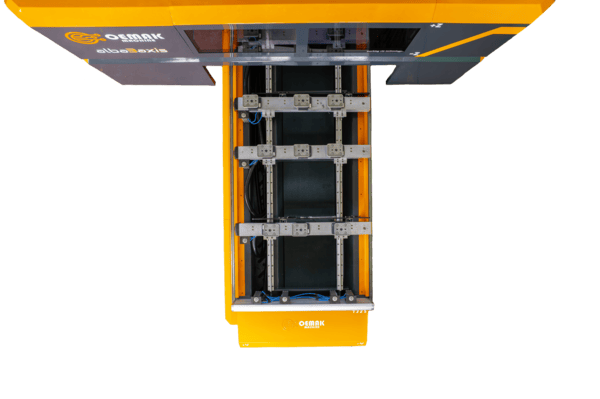

With 4 Pcs Vacuum Consoles and 12 pcs Vacuum Cups (Each Console has 3 pcs vacuum cups)
Working Area: 1300mm x 2500mm
Z Axis Distance: 300 mm
HSD - Spindle Motor Power: 7.5-9 Kw HSK F63 HSD
HSD - Spindle Motor Speed: 24,000 Rpm
Beckhoff - X Axis 3+3 Kw Absolute Servo Motor
Beckhoff - Y Axis 3 Kw Absolute Servo Motor
Beckhoff - Z Axis 1.5 Kw Absolute Servo Motor
X Axis Speed: 110 m/min
Y Axis Speed: 110 m/min
Z Axis Speed: 30m/min
Busch - 1 Piece 250 M3 Vacuum Motor

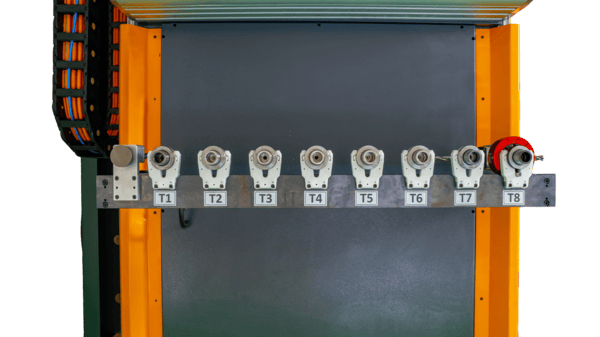

Fixed Magazine Unit: 8 Pieces
Automatic Tool Length Measurement
HSD - 10+3+1 Multiple Drilling Unit
Festo - Pneumatic
Lubmann - Automatic Lubrication
Thk & Güdel - Linear Movement Group
Beckhoff - Real Time CNC Controller with Ethercat Communication
Instant Intervention at All Motor Speeds
Mid program start by a single click

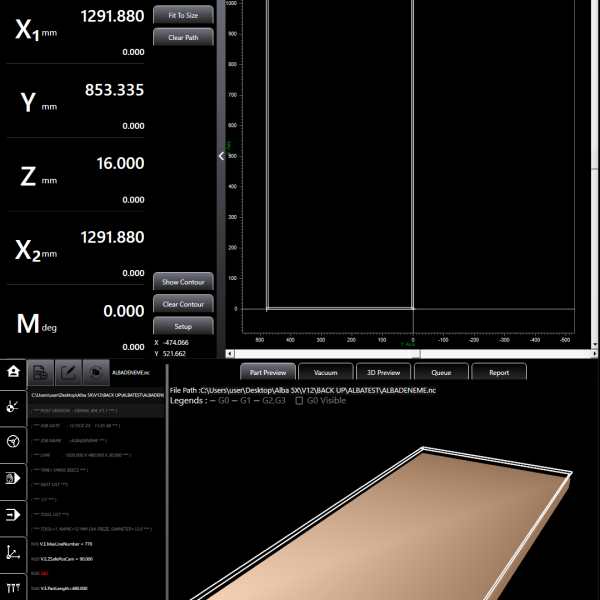

2D G Code Preview
3D Part Preview
3D Machine Simulation in Real Time
Numcam 2D CAD CAM Program
Remote connection
User-Friendly Interface
Control via Mobile Devices
Daily User Tracking
Reporting (Notification via Email)
Add User
User Control
2x27" Vertical Monitor
Control Unit: PC Based Application (No Extra PC Required)
Alignment Pistons (Easy Referencing)
Dual Zone Operation
Handwheel
Installed Power: 27 Kw / Working Voltage: 380 VAC / Working Pressure: 7 Bar
