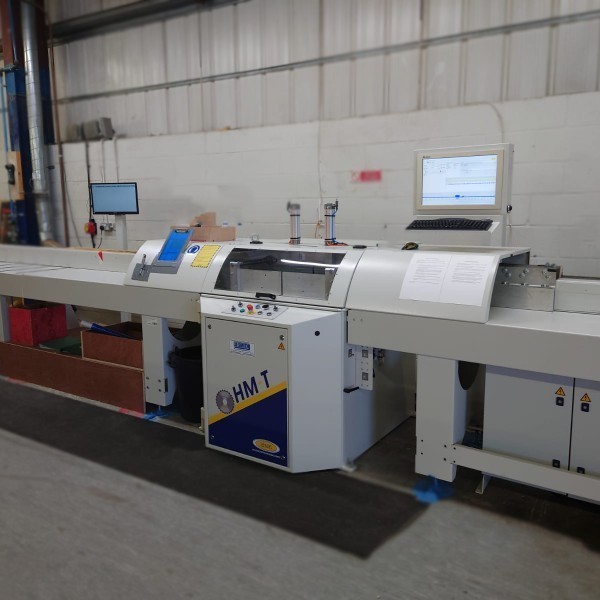

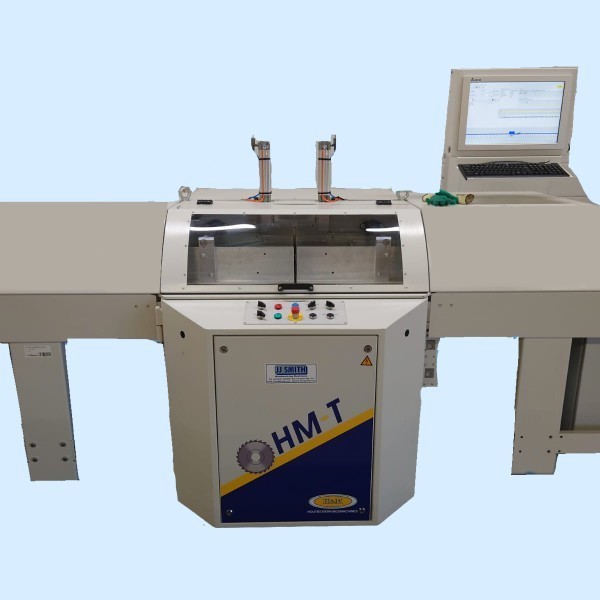

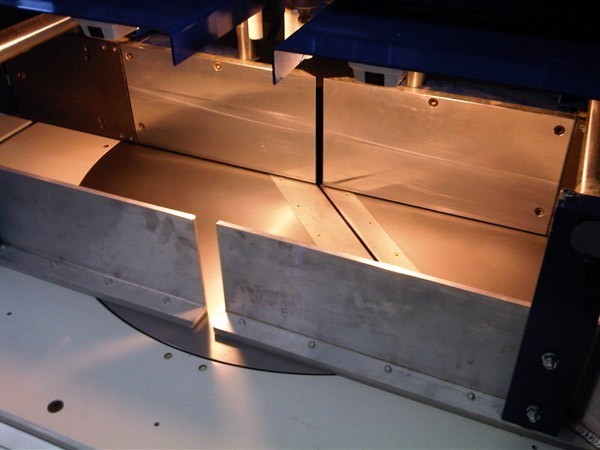

A two axis cnc upstroke crosscut for accurate cutting of angle components for the furniture and timber frame industries
A completely automatic upstroke saw specifically designed for the accurate cutting of both straight and angled timber components. The rotation of the sawblade is NC controlled and operates very quickly and accurately. The machine has applications in all areas where there is a requirement to cut at angles. Applications include:- Timber frame housing, Garden products, Decking, and any other applications requiring the cutting of angles. In addition the machine operate as a standard upstroke crosscut for straight cutting. The machine operates by pushing the boards to the correct position using an integral NC pusher before automatically operating the saw.
Optionally the machine can be specified in the HM-Z configuration which features 3rd axis centre line cutting (and optionally 4th axis for compound cutting), as well as CNC control of the cutting height and an increased cutting height. This specification makes the machine ideally suited to roof truss and other complex cutting operations
The crosscutting saw consists of:sawing machine with 60° rotation (HM-Z option with 270° rotation)6000 mm capacity infeed (overall length 8000mm)4000mm outfeed table
Sawing machine specifications:
7.5 hp motor 550 mm saw blade diameter, HM-Z option 700mm blade160 mm maximum sawing height, HM-Z option 250mm maximum sawing heightmaximum noise level 81 dB
Pusher specifications:
Positioning accuracy 0.1 mm 65 m/min maximum speed AC motor with toothed rack, controlled by a frequency regulator steel guide with adjustable Linear bearings
Computer specifications:

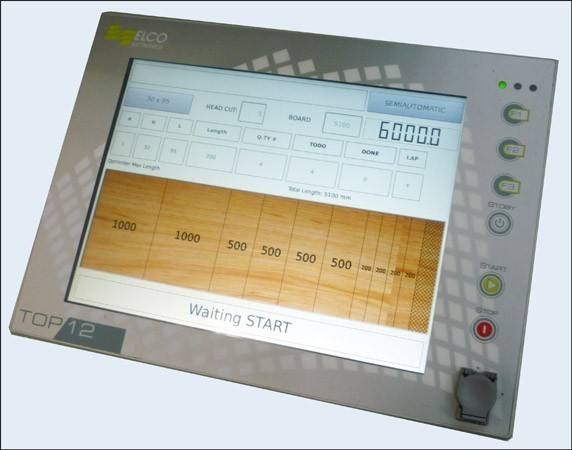

Industrial computer with colour monitor 1.2 Gb hard disk and USB & ethernet connectionsH&M developed software using WindowsTouch Screen operationOutfeed monitor to display cut sizes and references
General: The software allows for on site creation and storage of sawing lists.Sawing lists may also be created during work preparation. They can then be loaded into the machine’s computer from USB key or via ethernet connection. Creating sawing lists is very simple. The software’s graphic interface allows the selection of a specific beam model, upon which the relevant measurements are keyed in. The measurements may be entered in various ways, depending on which system is used during work preparation. The 1.2 Gb hard disk used allows for permanent storage of hundreds of sawing lists.
An onboard optimisation package is included which allows cutting lists entered or imported to be test optimised against timber lengths to generate an pre-optimised cutting list. This includes one import routine from external design package. An optional external software package, Optimaster is also available, for importing of cutting lists from multiple software packages, such as Excel, BTL DDS, Consultec, HSB, Sema, Vertex, Cadworks & Dietrichs. This package includes stock control, full optimisation and automatic download to any number of saws. Further information on this package is available.
The installation includes on-site instructions.Connection points to be provided by the client:1 x 220 volts mains socket on an unused, 16 Amp fused group1 x 400 volts, 32 Amp fused connection point, 3 phase + 01 x compressed air connection, minimum 6 Bar1 x 120mm and 1 x 150m diameter extraction outlet(HM-Z option - 1 x 180mm and 1 x 150mm extraction outlets)
Defecting camera and associated softwareLabel Printer and associated softwareIn line ink jet printing3rd Axis by CNC (for centre line cutting) - HM-Z optionOptimising software on saw with single import routineVertical notching head 5.5kw motor - Y axis by handwheelVertical notching head 5.5kw motor - Y axis by CNCDrilling head (Vertical) up to 60mm hole diameter, 200mm stroke (Manual X & Y adjustments - CNC Z axis)Notching head (Horizontal)Extra meter infeed / outfeed (over standard lengths)One off cost for machines 10m or over infeed capacityOutfeed kicker and belt (up to 6m)CNC 4th axis - cant of bladeAutomatic infeed chains 2m wide x (up to) 6m - 5 chainsAdditional infeed chainDesign2Wood software to import from external design software (see software price list)3 axis routing station for drilling and routing slots and circlesStud marking softwareSeparating system for infeed chains
