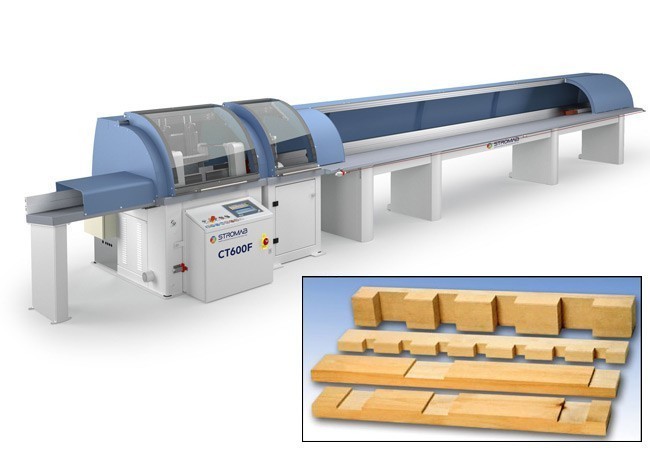

Automatic heavy duty programmable upstroke crosscut saw for the cutting of straight and angled components, with integrated notching unit
A heavy duty optimising upstroke crosscut and notching machine, designed for programmable and repetitive cutting and notching from standard and / or random lengths of timber. The saw unit has a pneumatic upstroke action with variable speed control, The notching unit is independent of the saw and therefore allows for programming of the saw or notching either as separate program's or as one single job. The pusher / feed is fitted with a heavy duty rack and pinion drive feeding system for fast positioning giving a high level of repeat cutting accuracy.

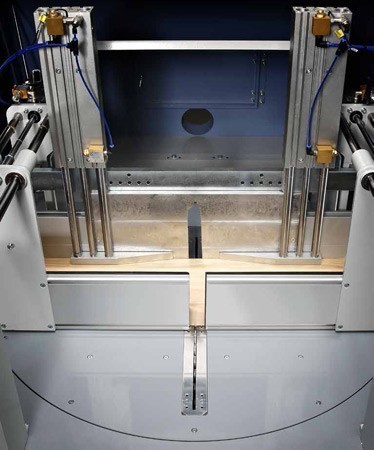

The saw unit and clamping area is totally enclosed by a clear hinged electrically interlocked hood that while giving the operator a clear view of the cutting area still gives complete protection. The infeed and outfeed tables are of all steel construction meaning even heavy sections or packs of timber can be processed.

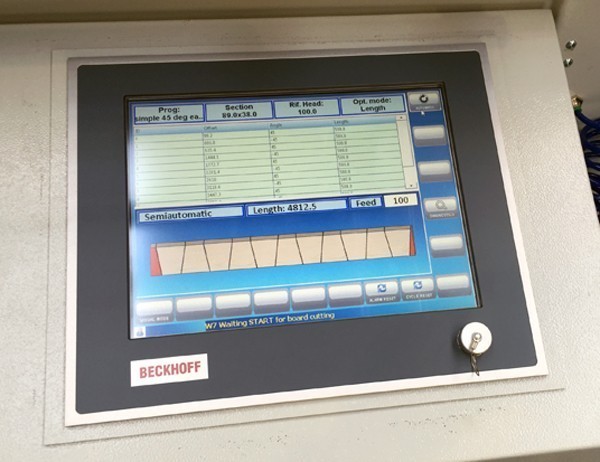

For additional operator safety the rear of the pusher system is guarded, while there is a full length safety pull cord on the front infeed table. Programming and entering of cutting lists is very simple through a colour touch screen controller with graphic representation of the cut pieces.
The machine offers full optimisation and also has the added optional facilities of defect cutting and remote programming from PC or laptop with transfer vis USB key or network. Additional options also include - extended outfeed table and label printing. To date we have supplied over 250 Matrix saws in to the UK, with a number of customers installing several machines.
Saw unitSelf braking saw motor 10hpSaw blade diameter 500mmMax cutting width 360mm ( refer to chart )Max cutting height 135mm ( refer to chart )Dust extraction 4 x 100mm diameter

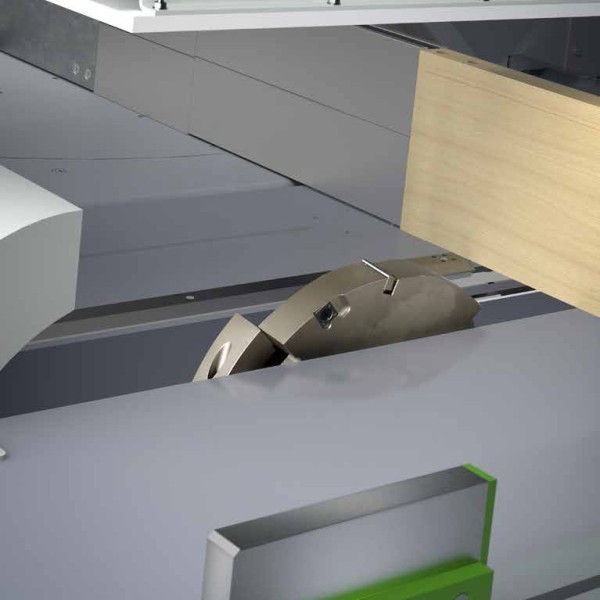

Milling UnitSelf braking milling motor 5.5hpPneumatic milling stroke with adjustable speedMax milling stroke 400mmMax milling width 100mmMax milling depth 60mmDust extraction 2 x 125mm and 2 x 100mm
Push feed system 3000 to 13000mmPrecision rack and pinion drive to pusher with magnetic reading tape giving a high level of repeat cutting accuracy.Pneumatic rising of the pusher at the end of cutting cyclePiece length reading photocellPositioning speed 100m/minPositioning accuracy + /- 0.4mm
Touch screen control unitRemote programming of cutting list via colour graphic touch screen controller - connection via USB key.- 6 optimising criteria - longest size, minimum waste, sequence, priority size, by volume or by value.- 1000 cutting lists - 10,000 lines per list.- Cutting list entered via controller key pad or via remote PC using PC or cable- Graphic description of the workpiece.

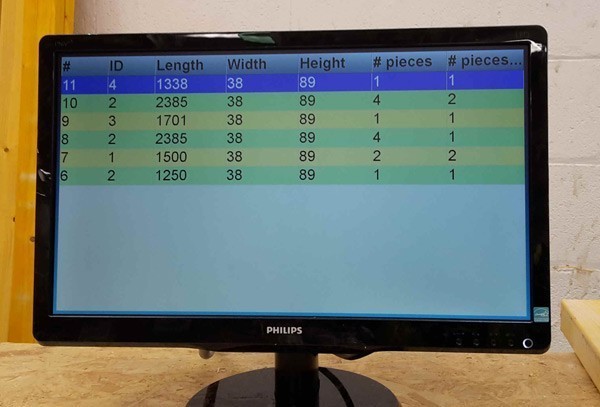

OPTI PLUS defect versionPneumatic side clampOutfeed table per mt ( one mt standard )Electronic trap door for waste ( not availble with out feed sorting belt )TCT saw bladeLabel printer ( direct heat ) on thermal paperLabel printer ( heat transfer ) on normal paperLabel printer ( heat transfer ) on polypropyleneOutfeed monitor 7"7.5HP milling motor10HP milling motor250mm dia tool, 40mm bore, 30-60mm width Z=4+4250mm dia tool, 40mm bore, 60-100mm width Z=4+4NC positioning of milling depthWindows 10 PC 12" touch screen ( Beckhoff )Automatic loader 4000 ( 6 chains )Automatic loader 5000 ( 7 chains )Automatic loader 6000 ( 7 chains )Automatic loader 700 ( 8 chains )Ink jet printer 12.7 mmInk jet printer 25.4 mmDesign2saw conversion software ( price on request )
