A high speed, fully programmable push fed cross cut saw suitable for furniture, joinery, packaging, sheds of TF.

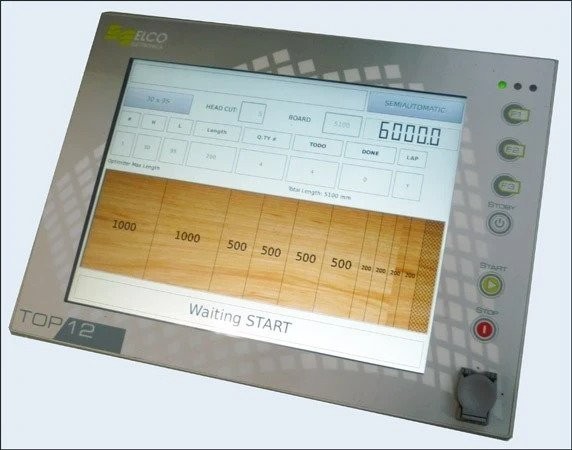

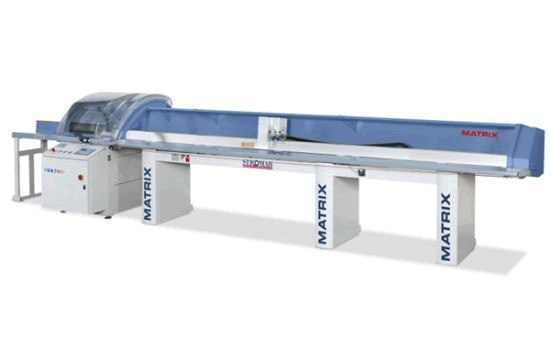

A heavy duty range of upstroke crosscutting saws, designed for programmable and repetitive cutting from standard and / or random lengths of timber. The saw unit has a pneumatic upstroke action with variable speed control, while the pusher / feed is fitted with a heavy duty rack and pinion drive feeding system for fast positioning giving a high level of repeat cutting accuracy. The saw unit and clamping area is totally enclosed by a clear hinged electrically interlocked hood that while giving the operator a clear view of the cutting area still gives complete protection. The infeed and outfeed tables are of all steel construction meaning even heavy sections or packs of timber can be processed. For additional operator safety the rear of the pusher system is guarded, while there is a full length safety pull cord on the front infeed table. The Elco TOP 12 industrial control unit, specifically designed and built for industrial automation, with simple programming and operator interface. The clear 12" touchscreen display allows storing and running cutting lists at a push of a button. As standard the machine now offers USB, ethernet and 3 levels of optimisation including "board sequence" ideal for repetitive cutting. The Matrix OPTI version offers an additional 3 optimisation criteria including "minimum waste" and automatic board length measuring suitable for random length boards. The Matrix DEFECT version offers all optimisation criteria, length measuring, a defect removal camera and timber grading. Options for all models include pneumatic side pressure, extended outfeed table and inkjet printing.
To date we have supplied over 350 Matrix saws in to the UK, with a number of customers installing several machines.
Self braking motor 10hp Saw blade diameter 500mm Max cutting width (refer to chart) 360mm Max cutting height (refer to chart) 135mm Specification Pusher Unit Capacity 3000mm to 15000mm Programmable cutting cycles 1000 programmable sizes per cutting listPush system - Rack and pinion with brushless motorPositioning speed 100m/minPositioning accuracy 0.4mmPneumatic rising of the pusher at the end on the cutting and overhead return1m outfeed table Dust extraction connections 3 off dia 100mm Air consumption per cycle 8 nl Nett weight 400kg
OPTI Version - Full optimisation and length measuring
OPTI PLUS Defect Version - Full optimisation, length measuring and defect removal
Pneumatic side clamp
Outfeed table - extra per meter

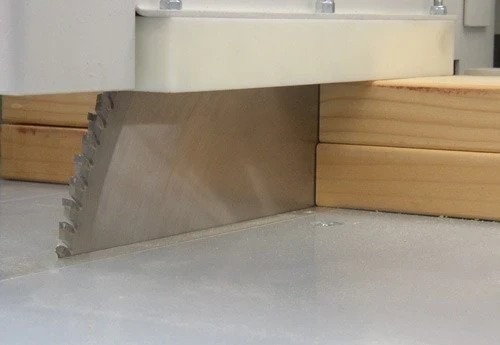

Extra TCT blade - diameter 500mm
Electronic waste trap door ( not avaialable with sorting unit )
Extended push feed over 6000mm ( price per mt )
Automatic loader Matrix 4000
Automatic loader Matrix 5000
Automatic loader Matrix 6000

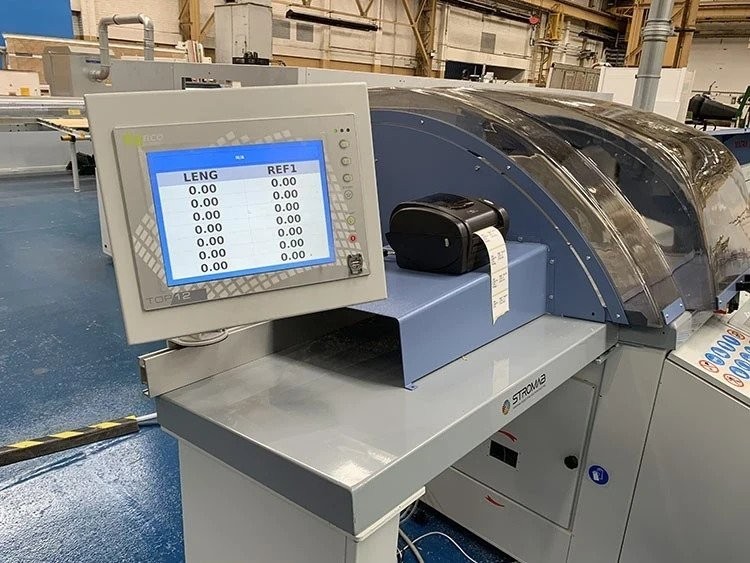

Label Printer (direct heat) on thermal paper
Label printer (heat transfer) on normal paper
Lable printer (heat transfer) on polypropylene
High speed inkjet cartridge printer - 12.7mm Vertical
High speed inkjet cartridge printer - 25.4mm Vertical
Beckhoff PC Windows 10 controller ( required for Ink jet printer )
Automatic sorting belt 3000 mm with 3 ejectors
Extra length motorised belt per mt
Additional rapid ejector
Stacking roller table 1500 price per mt ( min 3 mt )
Beckhoff 12" out feed monitor
TR600 Hydraulic upstroke, 12 hp saw motor, Ø600 mm saw blade

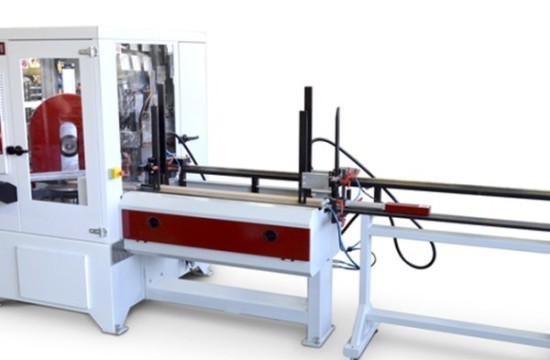

Camam TAC CNX Angular Cutting & Drilling Machine With Automatic Loader

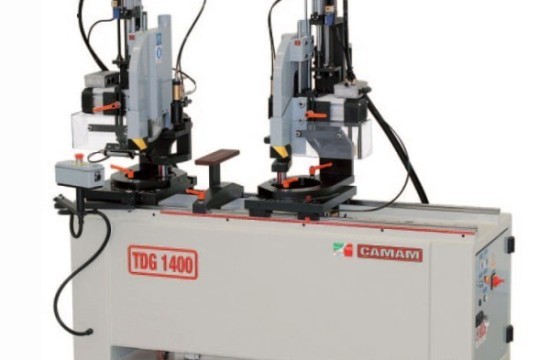

Camam TDG1400 Automatic Twin Blade Compound Angle Cut Off Saw

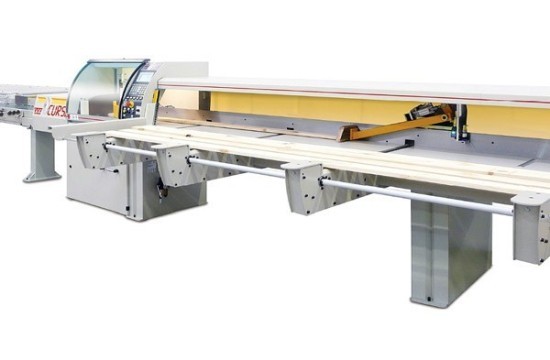

Cursal TRSI Automatic Crosscut Saw

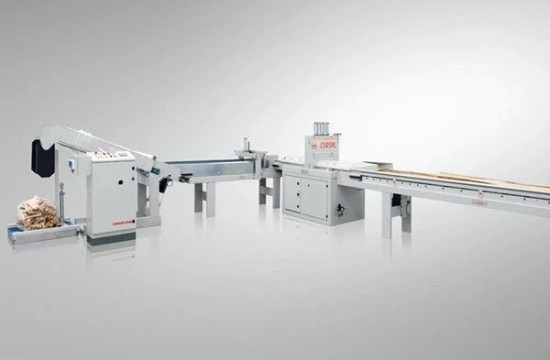

Cursal TRV 1200 L Crosscut Saw for Firewood

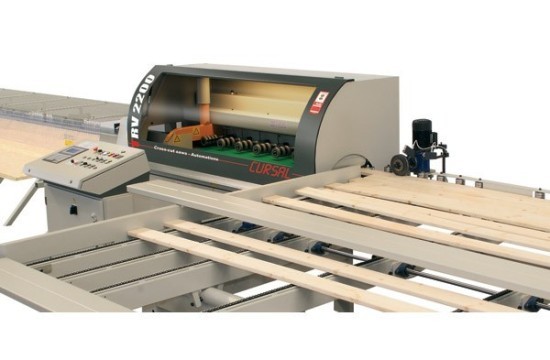

Cursal TRV 2200E Throughfeed Optimising Crosscutting Saw
H&M HM-D Automatic Push Fed Crosscut Saw

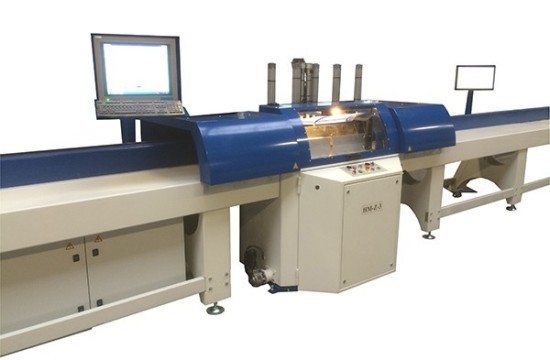

H&M HM-Z3 Automatic Push Fed Crosscut Saw

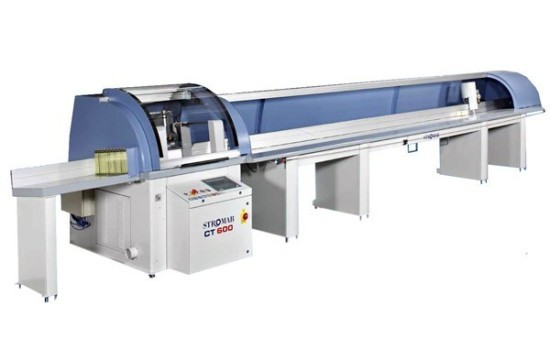

Stromab CT600 fully automatic crosscut for straight and angled cutting

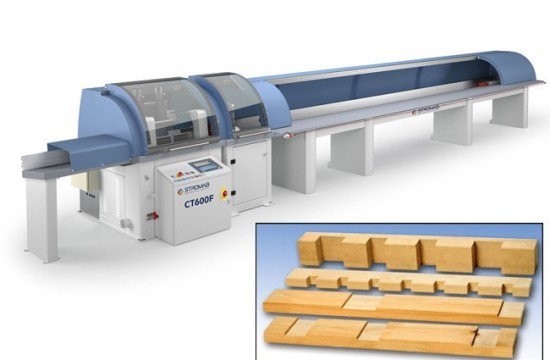

Stromab CT600/F Automatic Fully Programmable Crosscut Saw and Notching Machine

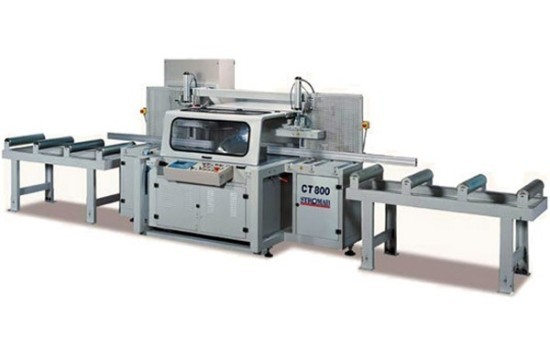

Stromab CT800 Automatic Beam and SIP Processing Centre

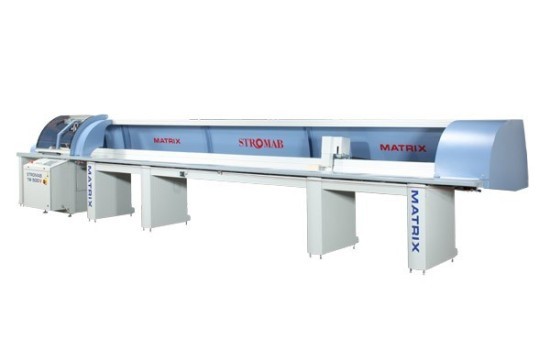

Stomab Matrix Fast 500 high speed automatic crosscut saw

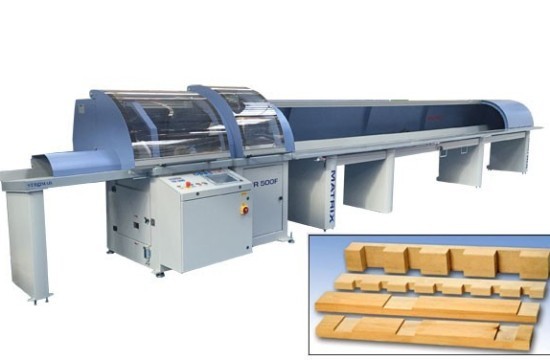

Stromab Matrix F Automatic Fully Programmable Crosscutting & Notching Machine
Stromab TR601 MX Fully Programmable Push Fed Crosscutting Saws
Stromab TR601 MXA Programmable Push Fed Crosscutting Saw with In-Feed Chains

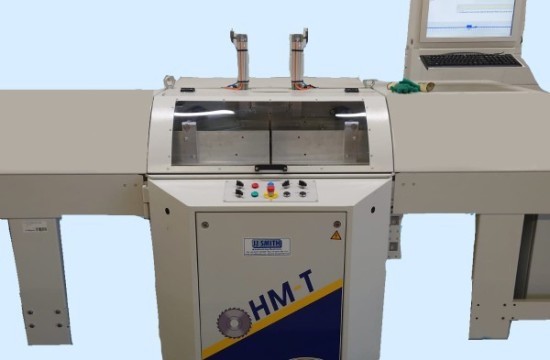

H&M HM-T NC Anglemaster Automatic Crosscut Saw

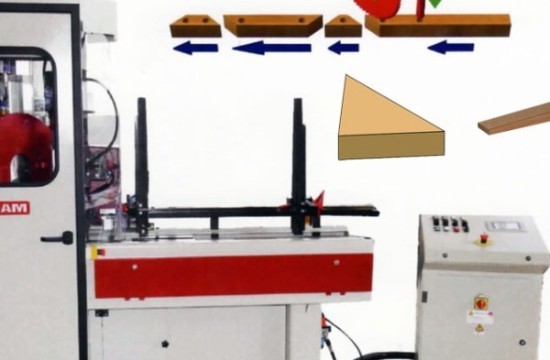

Camam TAC1 Automatic Angular Crosscut
