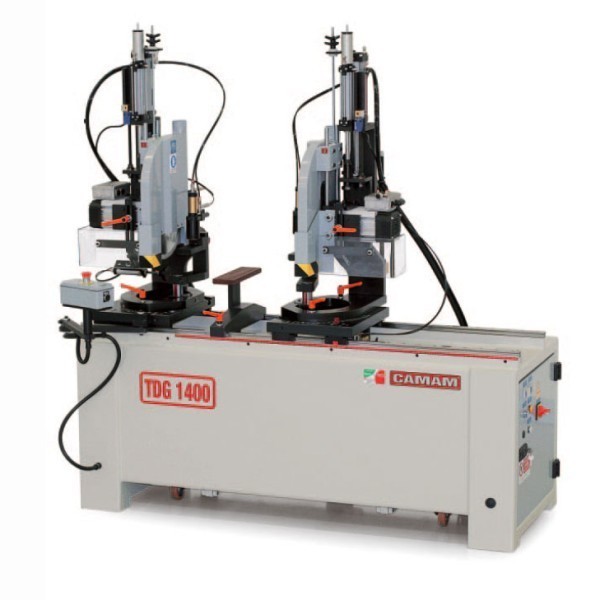

Camam TDG1400 Automatic Twin Blade Compound Angle Cut Off Saw

A heavy duty twin cut off saw suitable for cutting a variety of different furniture components and also stair spindles.

Key Features:

  • Twin cut off saw
  • Straight or angled cutting.
  • Auto loading

About this Product

A versatile heavy duty twin cut off saw suitable for a variety of different furniture components. Twin saw units have pneumatic stroke with hydrocheck for precision cutting. Fitted with optional automatic hopper feeder for high volume cutting. This machine can also be used for making the raked angled cut on stair spindles.

Camam TDG1400 Automatic Twin Blade Compound Angle Cut Off Saw
Camam TDG1400 Automatic Twin Blade Compound Angle Cut Off Saw
Specification
  • 2 x Saw Units 2.5 HP each
  • Sawblade Rpm 3000
  • Angle cutting vertical +/-45 degrees
  • Angle cutting horizontal +/-45 degrees
  • Saw blades 350mm dia. with 30mm bore
  • Max opening 1400mm (3000mm on request)
  • Max. timber section 80 X 100mm (Manual loading 165 x 100mm)
  • Min. timber section 10 x 10mm
  • Min. timber length 300mm
  • In built collection bin for offcuts
  • LCD readout of width setting
  • Quick pneumatic push buuton locking / release for width setting
  • PLC control of machine sequencing.
  • Two hand push button control
Options
