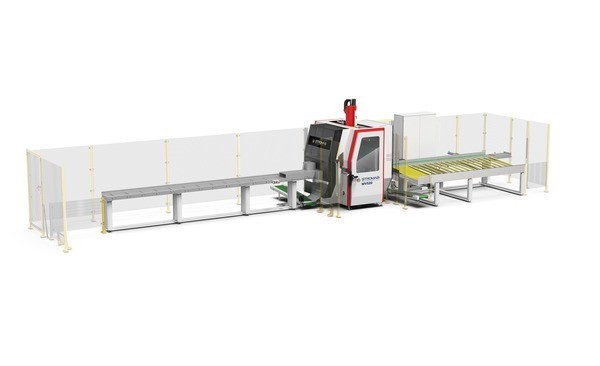

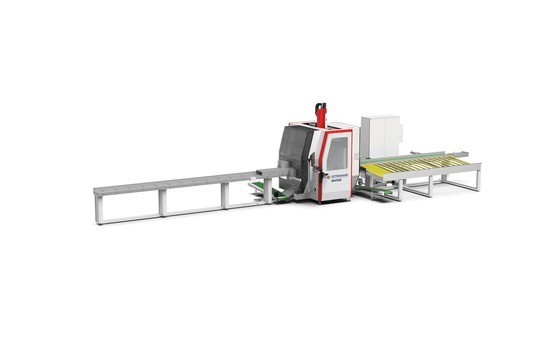

The Stromab MV520 brings advanced 5-axis timber processing within reach of truss manufacturers and timber frame producers looking to increase automation without the cost or footprint of a large machining centre.
Compact and budget friendly solution
Designed as a compact, budget-friendly solution, the MV520 delivers exceptional versatility for complex timber processing. Its fully automated 3–5 axis cutting system performs straight cuts, mitres, compound angles and scarf cuts with ease, making it ideal for modern offsite construction and engineered timber applications.
Cutting performance

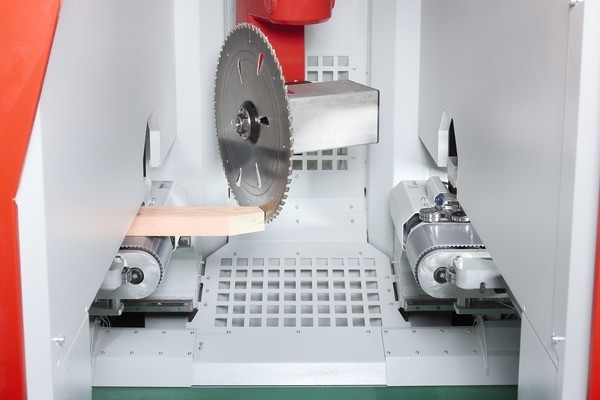

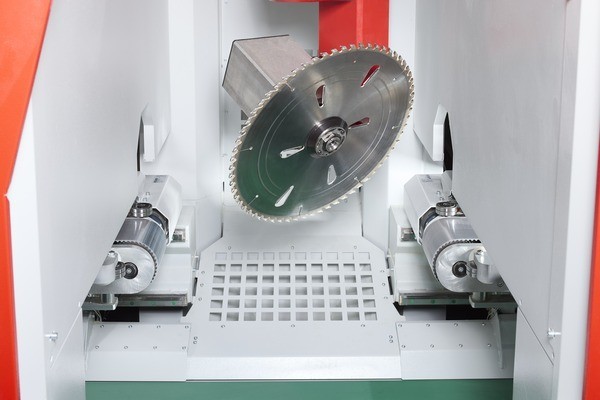

Featuring a 360° rotating saw blade with ±90° tilt, the MV520 handles complex cutting geometries on timber sections up to 300 x 90 mm. The 520 mm blade, powered by a 3 kW motor running at 3,000 rpm, provides fast, accurate and repeatable cutting performance.
Software and controls
For seamless production, the MV520 imports BTL files directly, allowing components to move from design software to manufacture with minimal manual input. A powerful Beckhoff 18.5" touchscreen controller provides an intuitive interface for programming, monitoring and optimising production.
Seamless material handling

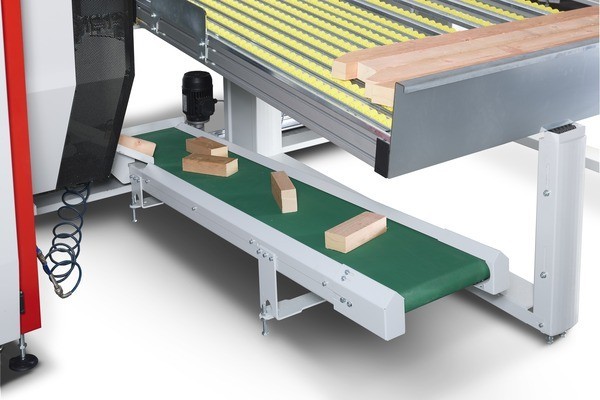

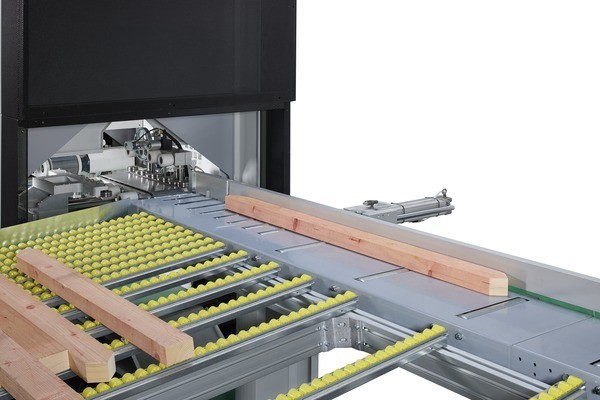

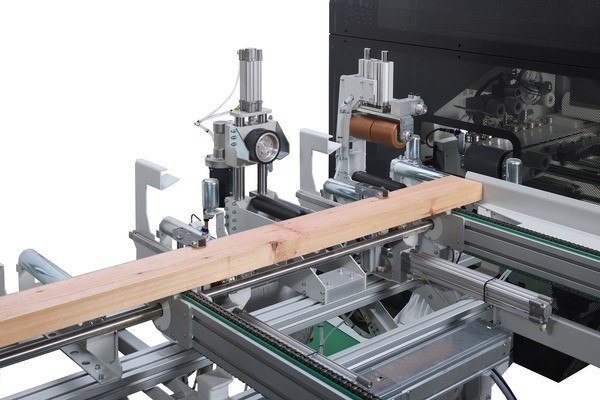

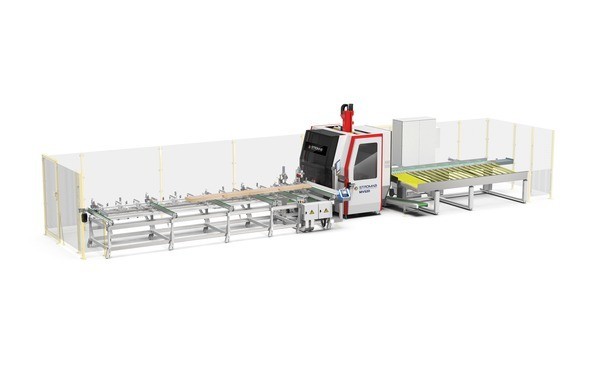

The integrated dual conveyor system supports efficient material handling and is available in configurations to suit your production requirements. Choose from manual loading or automatic loading, with optional automatic unloading and sorting to create a workflow that matches your factory.
Whether you're upgrading from a traditional crosscut saw or investing in your first automated processing centre, the MV520 offers an ideal balance of capability, productivity and value.
The Stromab MV520 brings advanced 5-axis timber processing within reach of truss manufacturers and timber frame producers looking to increase automation without the cost or footprint of a large machining centre.
Compact and budget friendly solution
Designed as a compact, budget-friendly solution, the MV520 delivers exceptional versatility for complex timber processing. Its fully automated 3–5 axis cutting system performs straight cuts, mitres, compound angles and scarf cuts with ease, making it ideal for modern offsite construction and engineered timber applications.
Cutting performance
Featuring a 360° rotating saw blade with ±90° tilt, the MV520 handles complex cutting geometries on timber sections up to 300 x 90 mm. The 520 mm blade, powered by a 3 kW motor running at 3,000 rpm, provides fast, accurate and repeatable cutting performance.
Software and controls
For seamless production, the MV520 imports BTL files directly, allowing components to move from design software to manufacture with minimal manual input. A powerful Beckhoff 18.5" touchscreen controller provides an intuitive interface for programming, monitoring and optimising production.
Seamless material handling
The integrated dual conveyor system supports efficient material handling and is available in configurations to suit your production requirements. Choose from manual loading or automatic loading, with optional automatic unloading and sorting to create a workflow that matches your factory.
Whether you're upgrading from a traditional crosscut saw or investing in your first automated processing centre, the MV520 offers an ideal balance of capability, productivity and value.
Technical features:
Blade diameter: 520 mm.
Blade motor power: 3 kW (three-phase, 2-pole, managed by inverter)
Blade rpm: 3000 RPM
Max X axis speed: 140 mt / min.
Max Y axis speed: 50 mt / min.
Max Z axis speed: 50 mt / min.
B axis max speed: 150 ° / sec
C axis max speed: 150 ° / sec
Number and diameter of suction mouths: N.3 Diameter 120 mm.
Compressed air supply pressure: 6 bar
Cut capacity:
Max 300mm x 90mm
Min 40mm x 20mm
0 - 360 degree blade rotation
Min length 1250mm
Max length 13000mm
-90 degree +90 degree blade inclination
