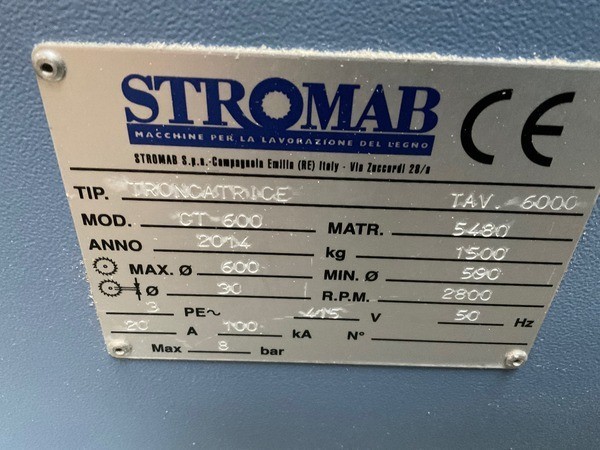

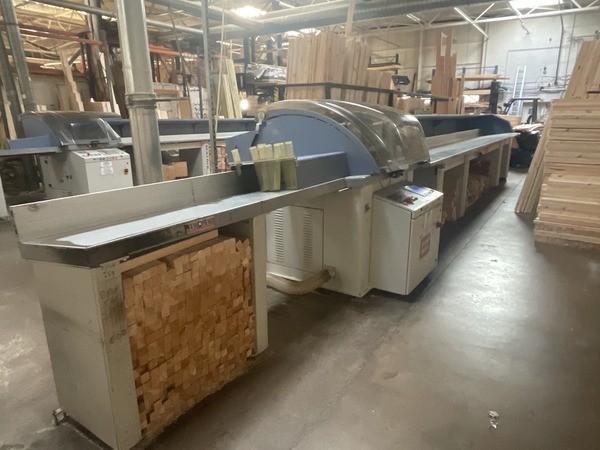

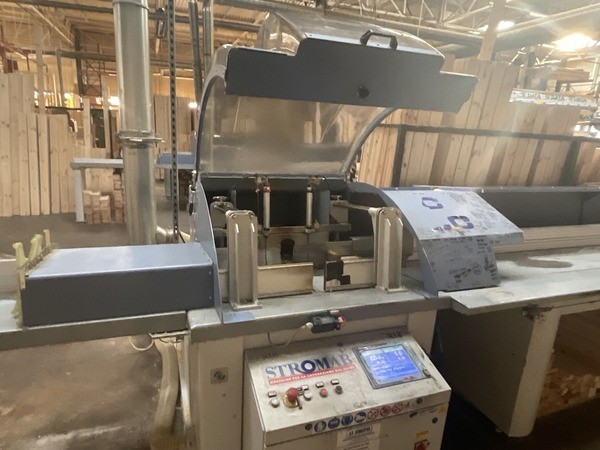

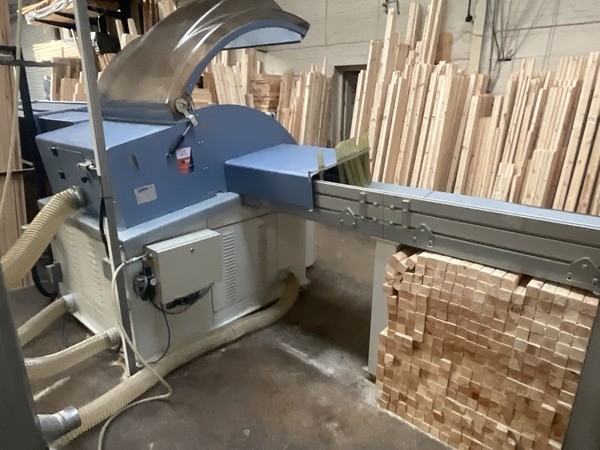

Stromab CT600 Automatic Upstroke Crosscut Saw for Straight and Angled Cutting - 2014 CE

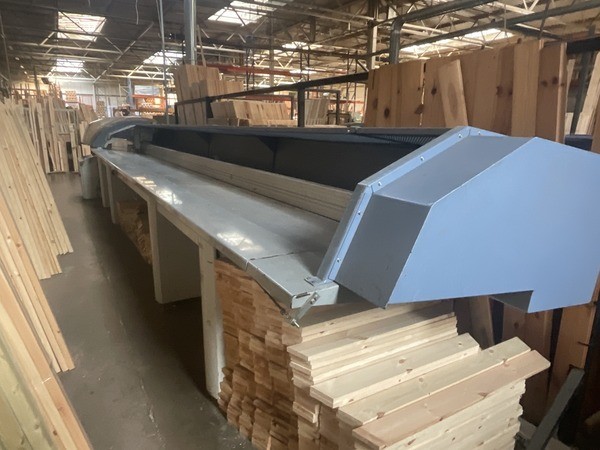

6000mm infeed capacity

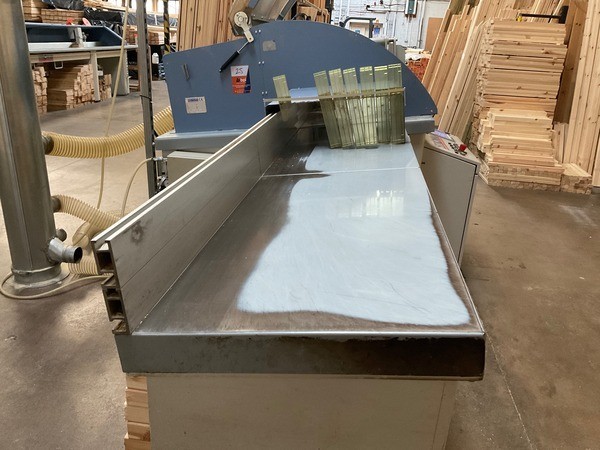

2000mm Outfeed table

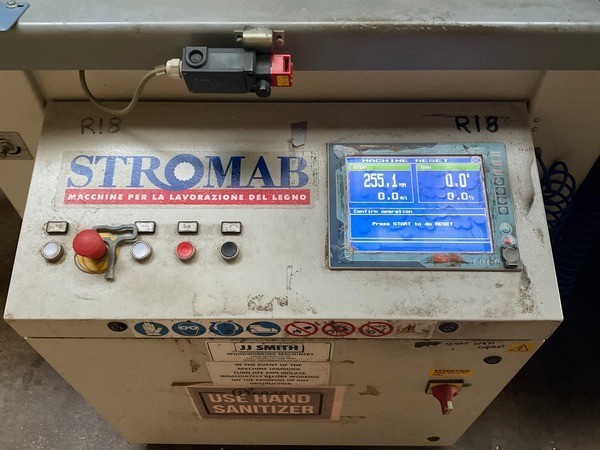

12" Touch screen graphic display

Power 1000 controller

Remote programming of cutting list via colour graphic touch screen controller - connection via USB key.

5 optimising criteria - longest size, minimum waste, priority size, by volume or by value.

Cutting list entered via controller key pad

Graphic description of the workpiece.

10hp motor

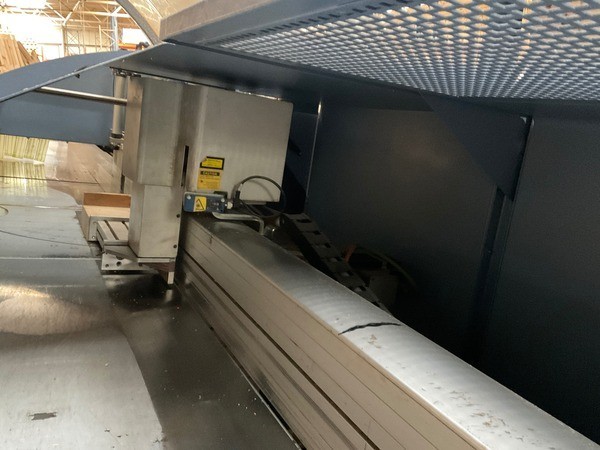

Rack & pinion drive system for pusher with magnetic reading strip to give a high level of  repeat cutting accuracy

600mm diameter blade

CUTTING CAPACITY POSITION A) # max height

At 0°: mm. 200x215 or 50x370

At 30°: mm. 200x185 or 50x325

At 45°: mm. 200x150 or 50x265

CUTTING CAPACITY POSITION B) # max. width

At 0°: mm. 160x315 or 40x410

At 30°: mm. 160x270 or 40x350

At 45°: mm. 160x220 or 40x285

Angle setting -70 degrees, 0 degrees, + 70 degrees

Adjustable saw stroke speed

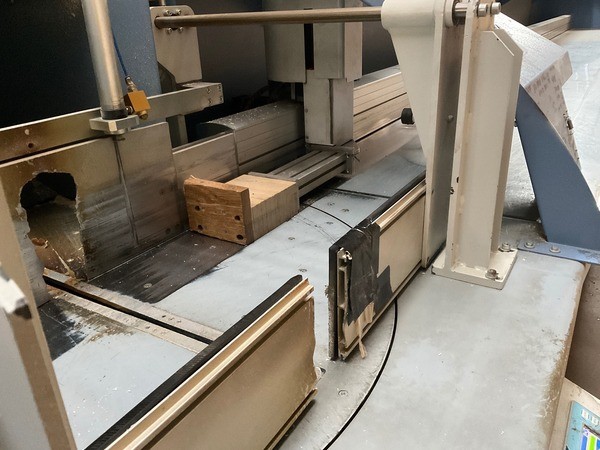

Vertical clamping

Horizontal clamping

Dust extraction 1 off 100mm, 1 off 120mm.

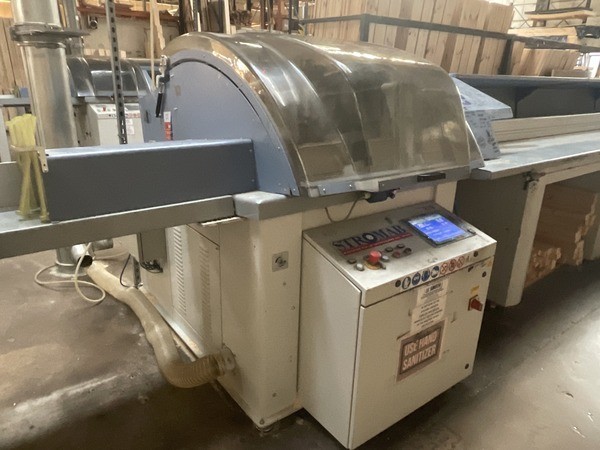

Plexiglass hood with gas springs

Year - 2014 CE

Available beginning of June
