Provisional specification

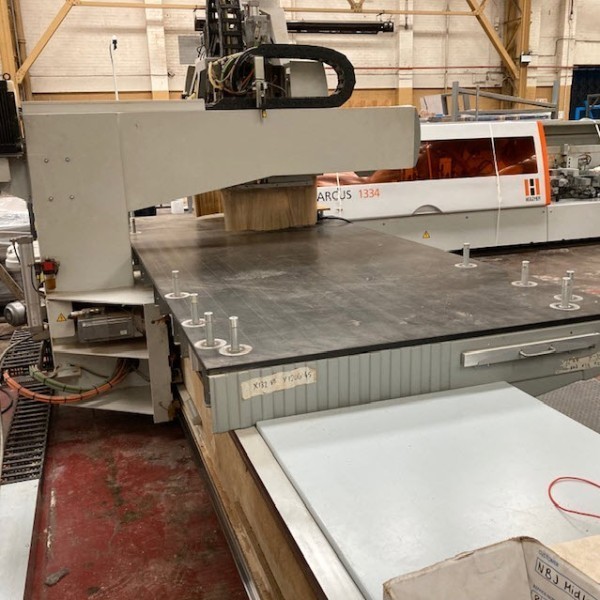

Matrix Working Table Area (mm) 3200 x 1400
Maximum Travel Path (mm) - X = 3865 Y = 1650 Z= 325
1 x 6kw Router
1,000 to 18,000 rpm suitable for HSK 63F tool holder
Motor power of boring unit
Speed of boring unit - Max 6,800 rpm
18 Vertical drills -10 in X axis, 8 in
1+1 Horizontal drills in Y axis - NO x axis horizontal drills
6 position Automatic tool changer
1.5kw Groover 90 degree tilting for use in x axis
Includes selection of insertable vacuum suction pads to allow workpiece edge profiling

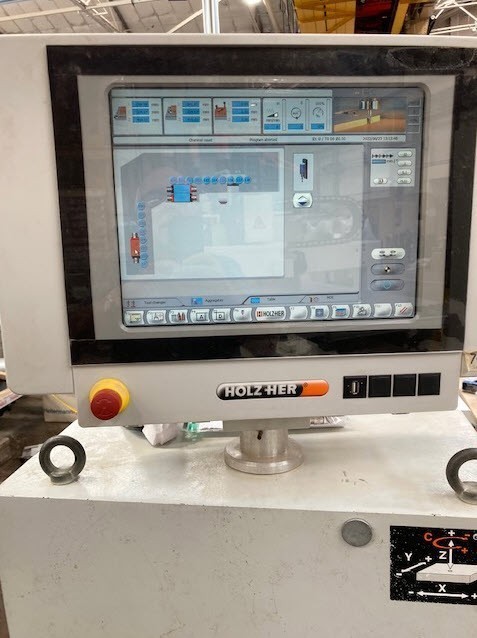

Twin Cam 32 Software [Holz Her]
Safety Mats
Machine Dimensions with cabinet (mm) - 8300 x 3870 x 2580
Extraction requirements 5300m3/hr @30m/sec
Weight - Approximately 4200kg
Serial Nr - 29/0-705
Year - 2007. CE Compliant
