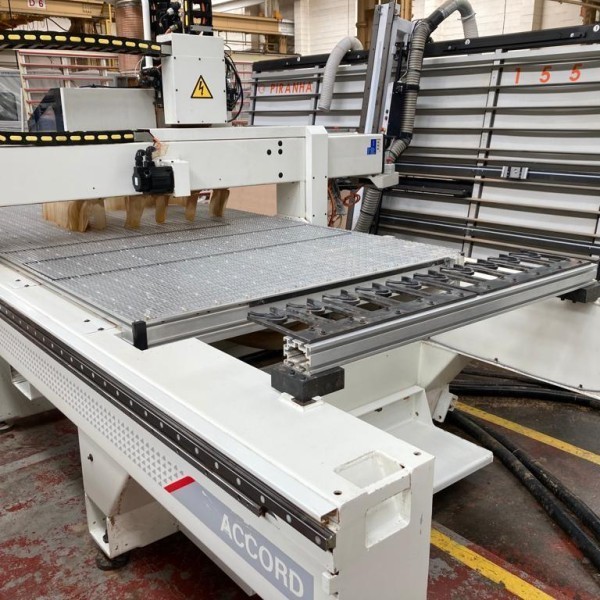

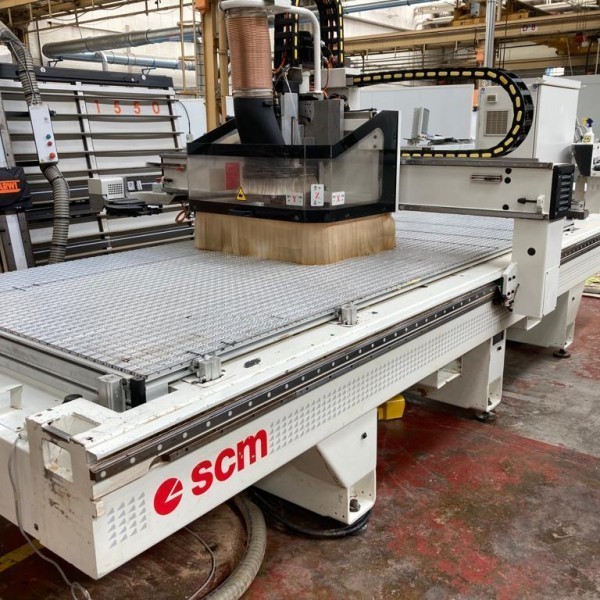

SCM Accord P15 CNC Machining Centre with Matrix Bed - 2008 CE

3650 x 1560mm Matrix Table

4455mm x axis stroke [for routing]

1930mm y axis stroke [for routing]

250mm z axis stroke

150mm Max panel clearance

X / Y Axes vectorial speeds 43m/min

Z axis speed 15m/min

Power 2000 Routing Unit 9 / 10hp for HSK63F toolholders. Speeds from 12000 to 18000rpm

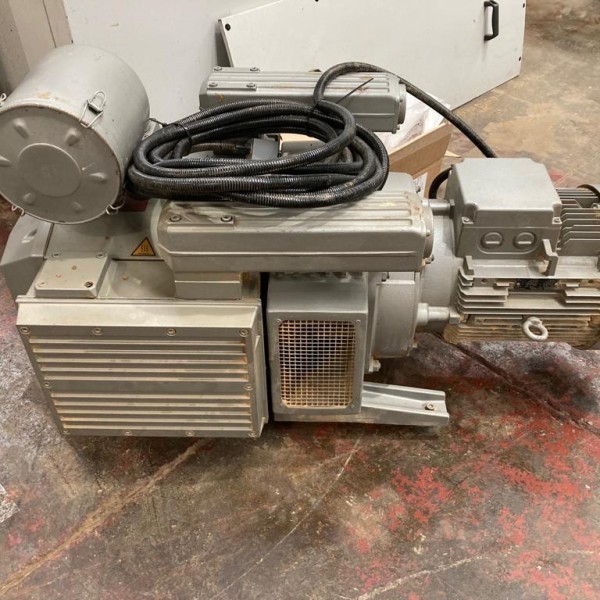

250m3 / hr vacuum pump

Telesolve long distance remote diagnostic system

Fitted with following options

Interpolating Z axis

Centralised dust extraction system

Pre-setting for angle driven heads

TR10 Fixed 10 position toolchanger [ mounted on side of table ]

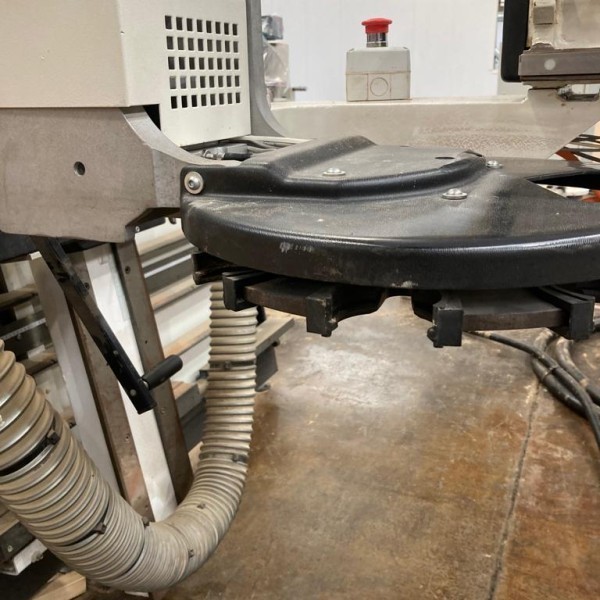

R8 Rapid 8 position rotary toolchanger [ mounted on operating unit support beam ]

2 x Electronic detecting systems for panel height and tool length

3 x Additional rear stops

Automatic centralised lubrication

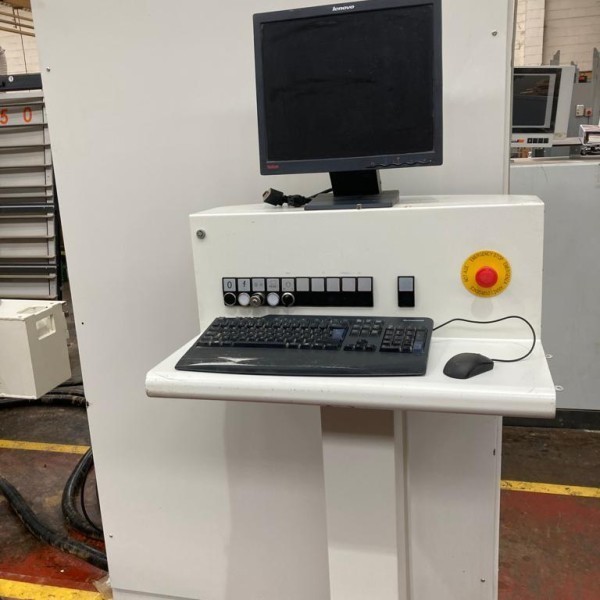

"PC Office" Console for easy movement around machine. Including

Windows XP operating system

15" Colour monitor

Keyboard

CD Rom drive

40 Gbyte hard disk

128MB Ram

Serial nr - AA2 / 000268?

Year - 2008 CE Compliant

Condition - Good
