INNOVATIVE WOODWORKING MACHINERY & EXPERTISE
Multi-Sheet Machining For Maximum Output
Automatic Loading System
CNC Bandsawing
Routing & Drilling
CNC Control Of The Bandsaw Movement +/- 90 Degrees

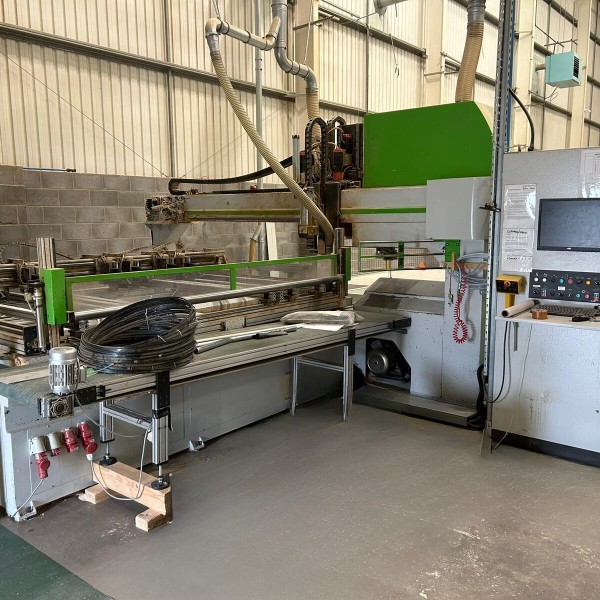

The MZ Pluris is recognised as the machine of choice for all sofa and chair frame manufactures.
The machine can work with OSB, Plywood, MDF, Chipboard (good quality), solid wood, and also some composite materials.
It has a number of key advantages over standard CNC nesting machines that include the possibility to stack multiple sheets high eg 5 x 12mm thick sheets, thanks to the use of the bandsaw sheet yield is much better, no vacuum is used so the machine is able to cut small shaped parts without difficulty and lastly cut parts are coming off on to the side discharge conveyor as the machine is still working, thus maximising machine output.
Increased working capacity of 2550mm 1550mm
Sheet size = 1220 x 2
440mm (8' x 4 ') and 1525 x 1525mm
Year - 2017 CE
Serial nr - 22/2017

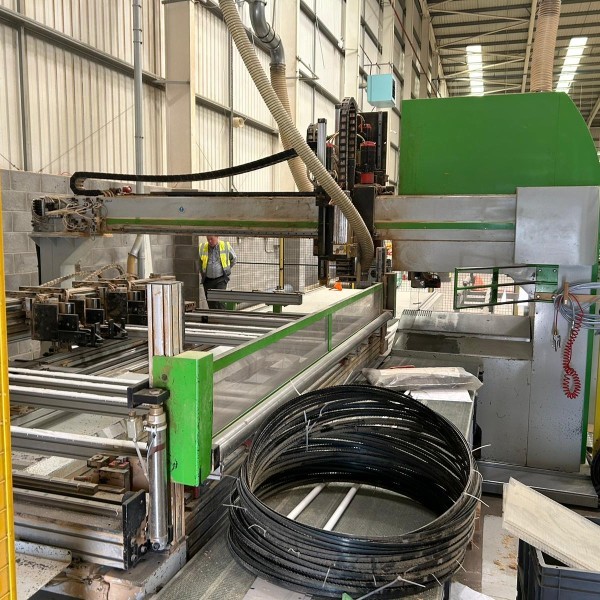

CNC bandsaw specification
Maximum depth of curve 800mm
Minimum radius of cut 50mm
Maximum cutting height 100mm
Automatic angling of blade +/- 90 degrees
Blade size 5900 x 13mm
Automatic sawblade tensioning
Cast aluminium saw pulleys 900mm dia
Self braking motor 11kw

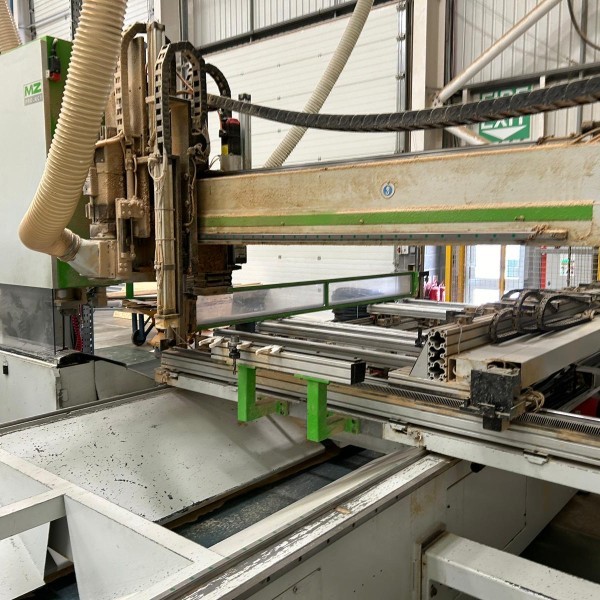

CNC router specification:Maximum working height / cutting depth 60mm
Electro spindle power S6 9KW
Variable rotation speed 7000 - 24000 rpm
HSK 63F tool holder
Fence / grippers / supports:Programmable pusher fence with 6 x pneumatic panel grippers
8 x panel support arms
General:Automatic centralised lubrication system consisting of 3 x oil pumps
Internal conveyor belt for removal of dust / waste cuts
Free standing electrical control cabinet with PC and keyboard
Hand held remote control
CNC vertical drilling unit:Maximum drilling depth 70mm
5 x independent drilling spindles in line. (Drills not included).
1.7kw motor
Plus package:5 position automatic tool changer
Automatic movement of clamps and support arms - set through the program

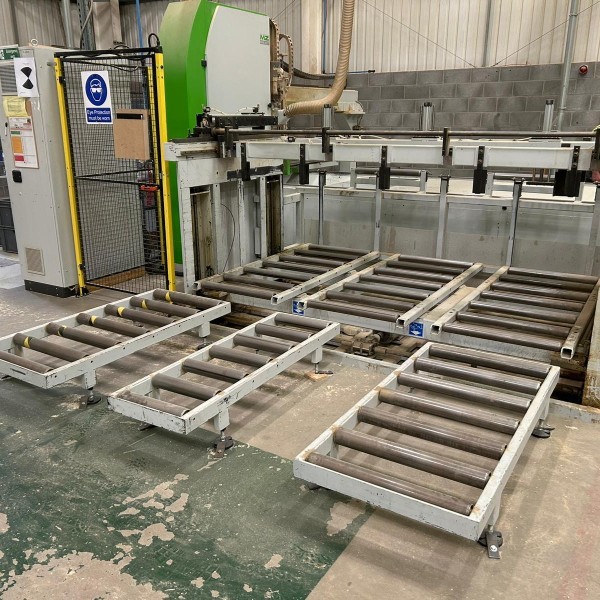

Lifting table:4 screw
Capacity 2550 x 1525mm
Max load capacity 3000kg approx
Max panel pack height 700mm - PIT REQUIRED
