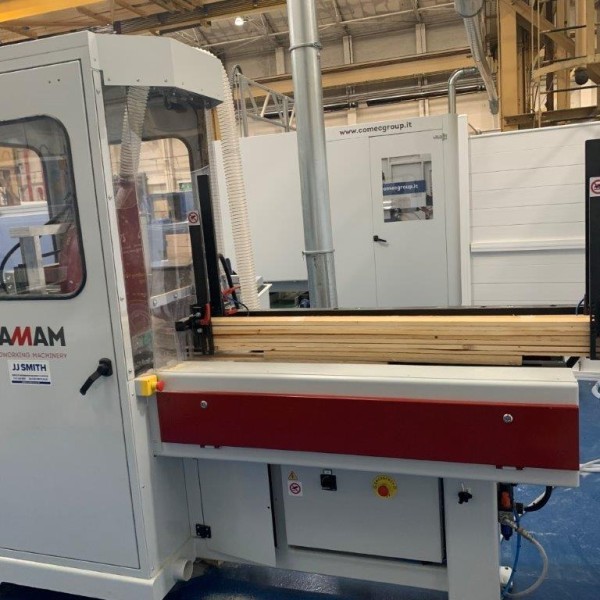

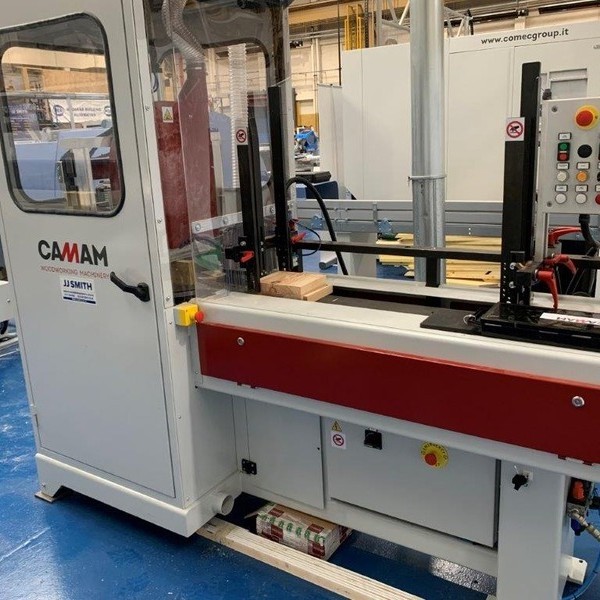

Camam TAC1 Cross Cut Saw For Straight and Angled Cutting Stair Wedges, Stair Glue Blocks, Corner blocks for chairs - Ex demonstration

About this Product

High production of small components

Produce up to 800 pieces per hour

Small footprint to maximise floor space

Key Features

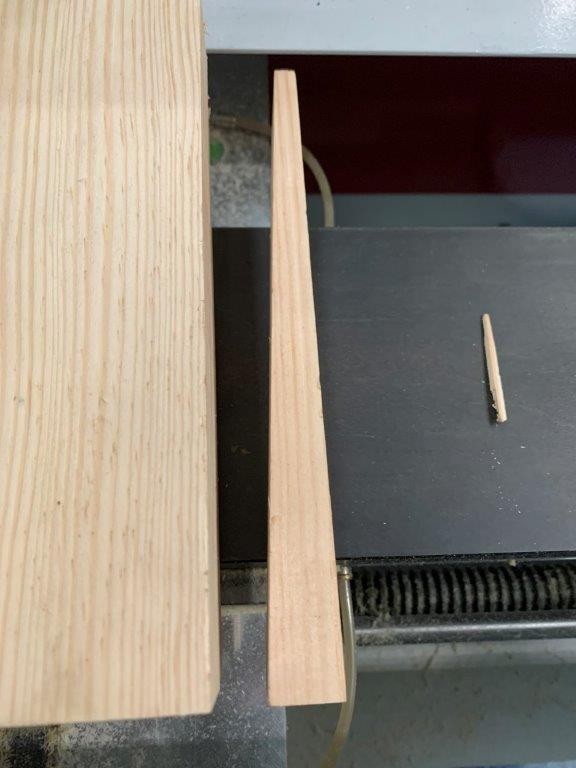

Perfectly suited to high volume component manufacturing such as stair wedges, sofa corner blocks,furniture components, glue blocks, filler pieces.

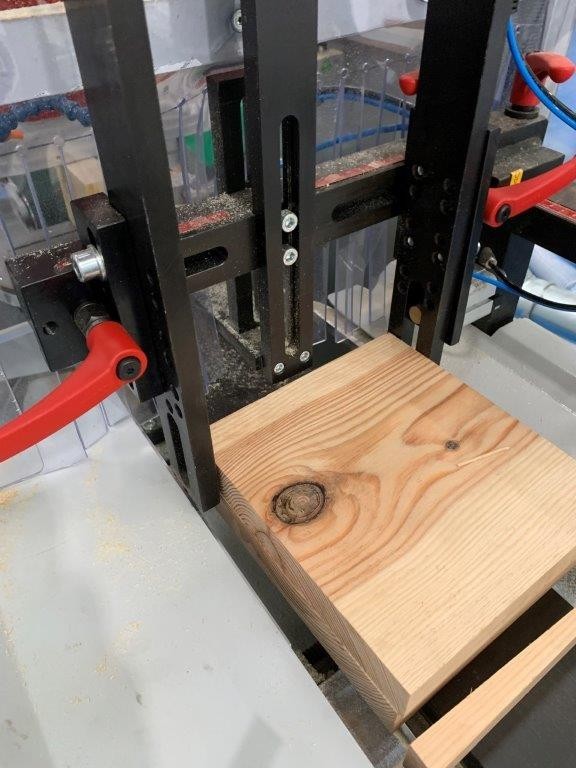

Self centring grippers and centreline cutting with angles of +/-60 degrees.

Hopper fed with a standard length capacity of 1350mm - components are collected in box underneath..

Specification

1350mm x 200mm x 80mm Capacity

Cutting thickness from 10mm to 80mm

Cutting width from 10mm to 200mm

3 seconds per operation - feeding, cutting & drilling = 9 seconds

Up to 60m/min advancement speed

4kW saw motor

+/- 60 degree rotation - mechanical adjustment

Completely enclosed interlock saw cabin

Outfeed conveyor belt

Condition - As New [only been used for showroom demonstrations.]

This item is IN STOCK. Contact our team for more details.
