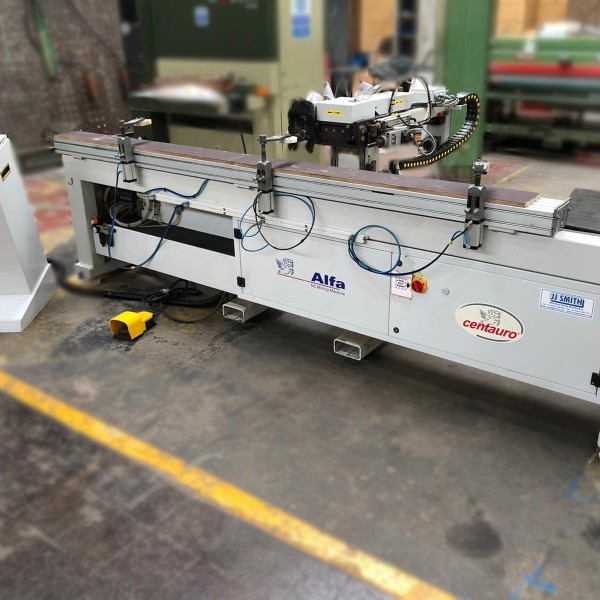

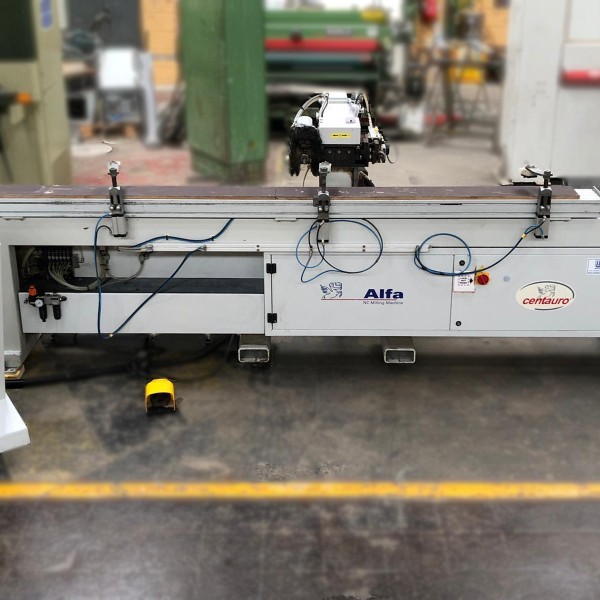

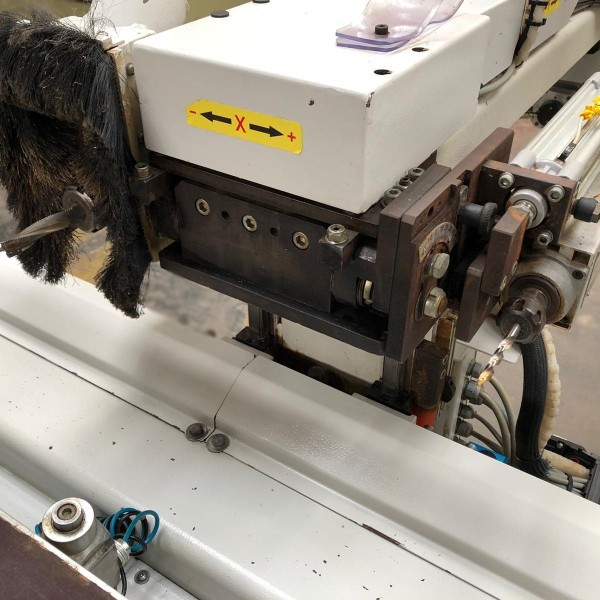

A versatile and flexible NC controlled machining centre suitable for a variety of machining operations including hinge recessing, lock slots, handle holes, key slots and euro grooves etc. Programming is extremely simple thanks to the colour graphic touch screen controller using pre-installed electronic macros. As standard the machine is equipped with one milling head that automatically moves for either vertical or horizontal machining. It also has interpolation of the axis.
Specification
Axis capacity - X 2800mm, Y 180mm, Z 150mm.
(2400mm X capacity when optional drilling head fitted).
1 x ER32 collet for milling cutter 16mm max. dia.
Max working table dimensions - 3000x618mm
X axis positioning speed 35m/min.
Y axis / Z axis positioning speed 6m/min.
Retractable pneumatic positioning stops 2 off - on front of table
Adjustable pneumatic workpiece clamps x 3 - mounted on rear of table.
Left hand side ref. stop.
Front table extension supports x 2
Router motor power 3.3kw.
Router motor RPM 0-18,000 rpm.

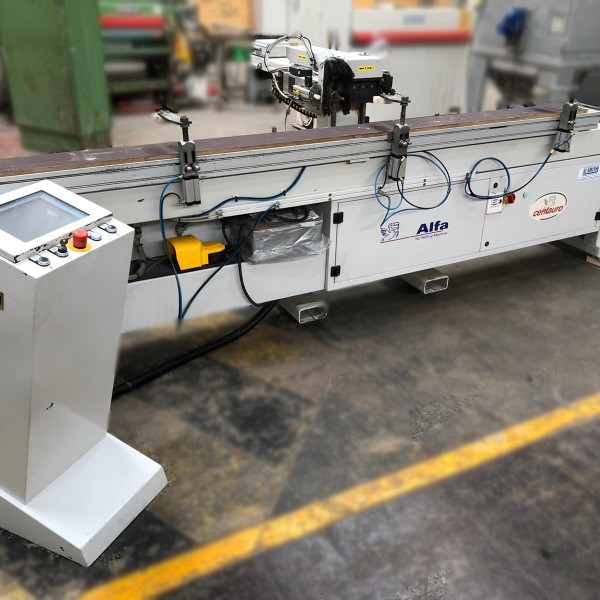

Touch screen controller - Elco Power 1000.
Dust extraction outlet x 1 80mm dia, 2 x 100mm dia

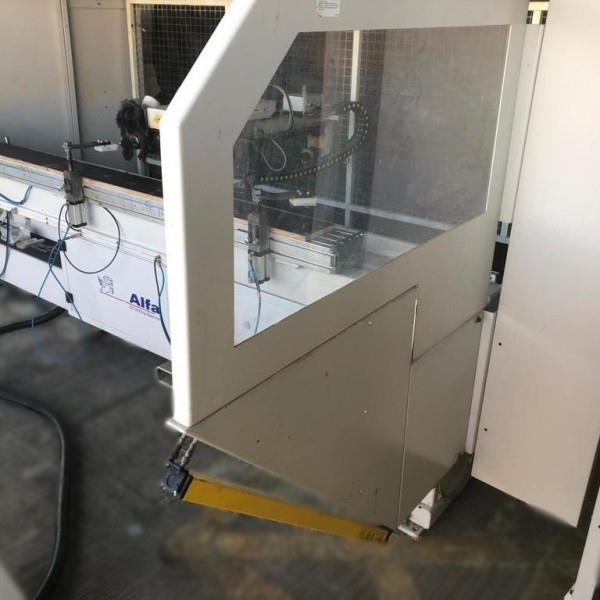

CE side and rear safety guards with front light curtain.
With following options fitted :
- Pneumatic tool change ISO 30
- Drilling unit with ER25 collet.
- Extended Y axis stroke 400mm
- Increased clamping capacity 200mm.
Year - 2013 CE Compliant
