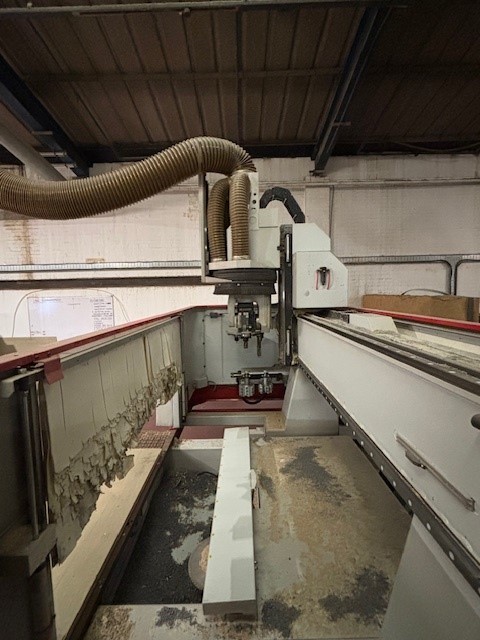

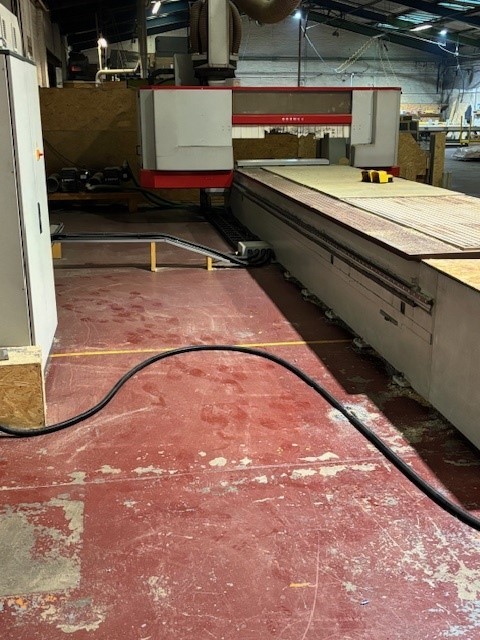

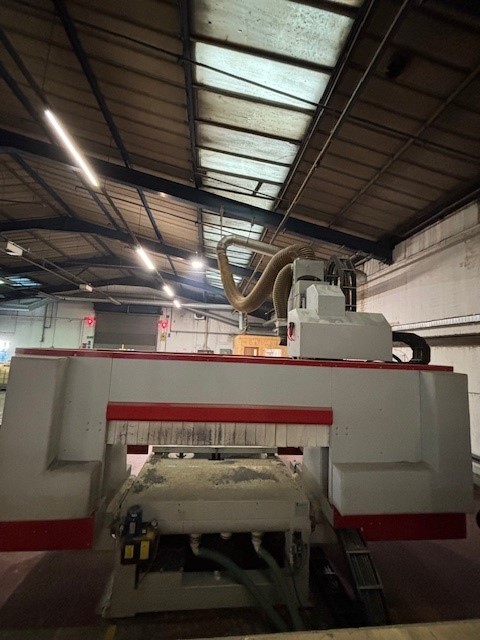

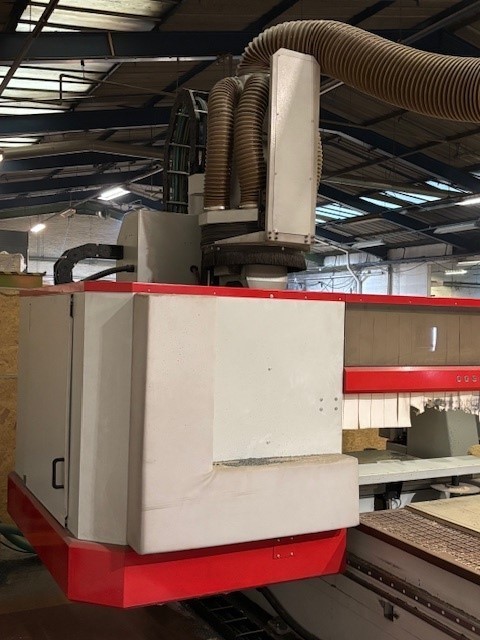

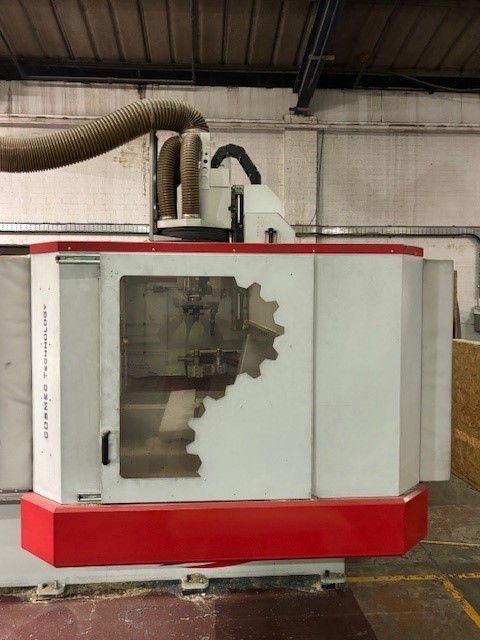

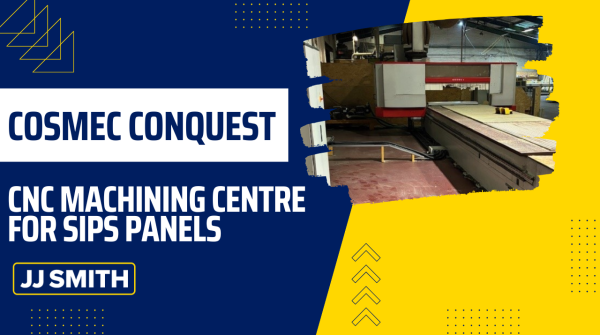

CNC machine with fixed table and dual drive gantry, five axis interpolating electro-spindle. Particularly suitable for SIPS panels, woodworking, plywood, MDF, plastics, and thermo-formed products.
Year - 2019 CE

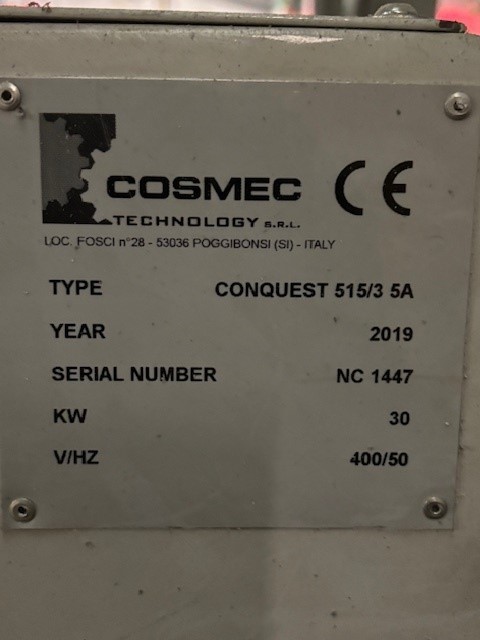

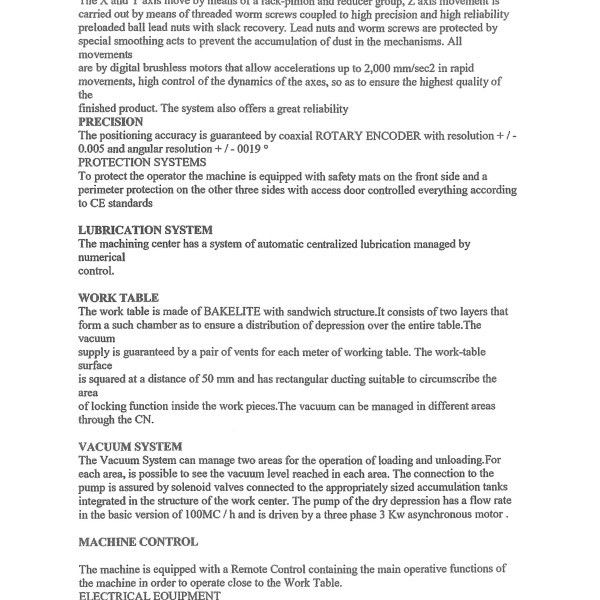

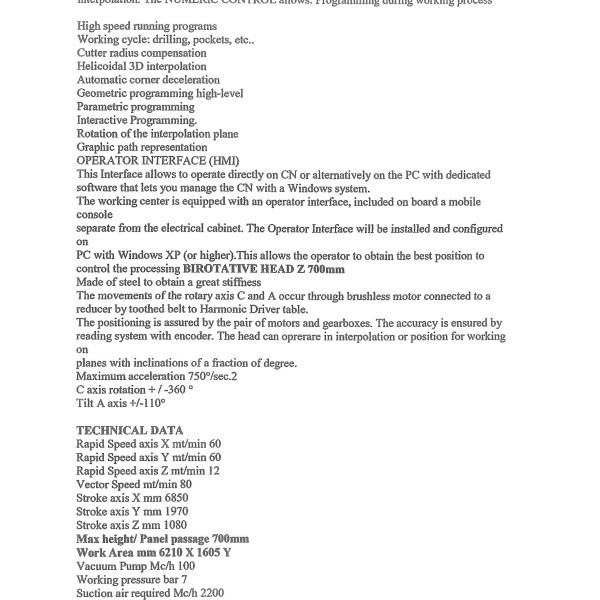

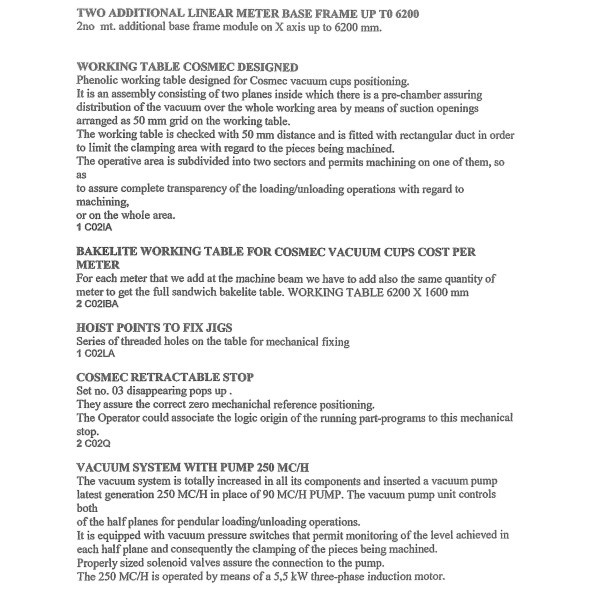

FULL ORIGINAL SPECIFICATION SHOWN IN IMAGES
6,120mm x 1605mm Working field in X / Y axis
6,850mm X axis stroke
1,970mm Y axis stroke
1,080mm Z axis stroke
Max height / panel passge 700mm
C axis rotation + / - 360 degrees

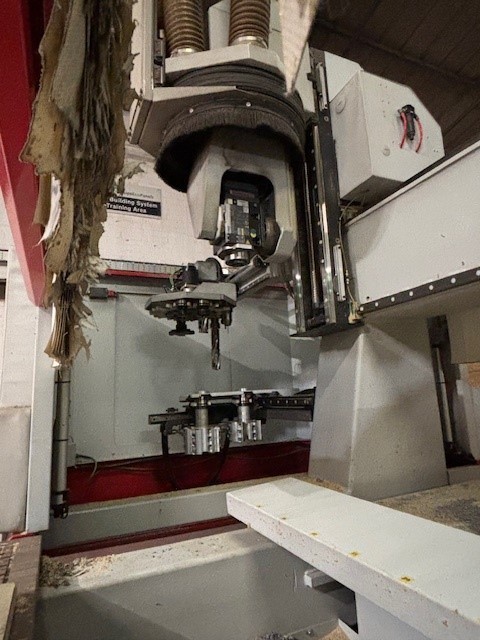

12kw electro-spindle with programmable speeds from 500 - 22,000 rpm
12 Position automatic tool changer
Auxiliary 2 position toolchanger
250m3/hr vacuum pump

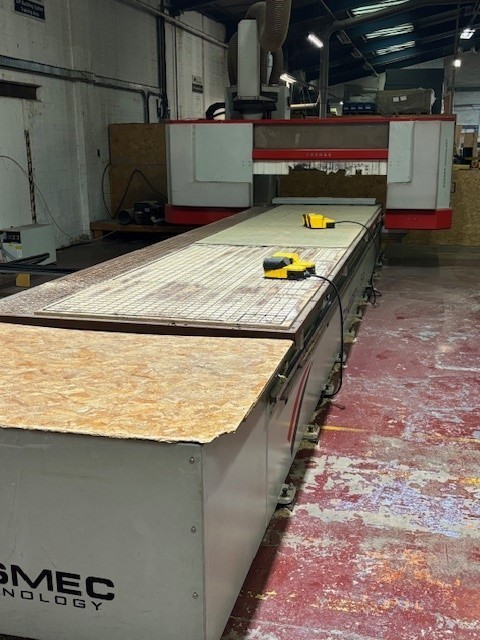

2 Field phenolic working table suitable for vacuum cups
Hoist points to fix jigs [series of threaded holes on table for mechanical fixing]
Set of 3 disappearing stops
OSAI Series 10 CNC control including [for example]
PC with Windows XP [or higher]
Interactive programming
Paramteric programming
3D interplolation
Cutter radius compensation
Extraction requirements 2200m3/hr
Weight 5,235kg
