INNOVATIVE WOODWORKING MACHINERY & EXPERTISE
+44 (0)151 548 9000

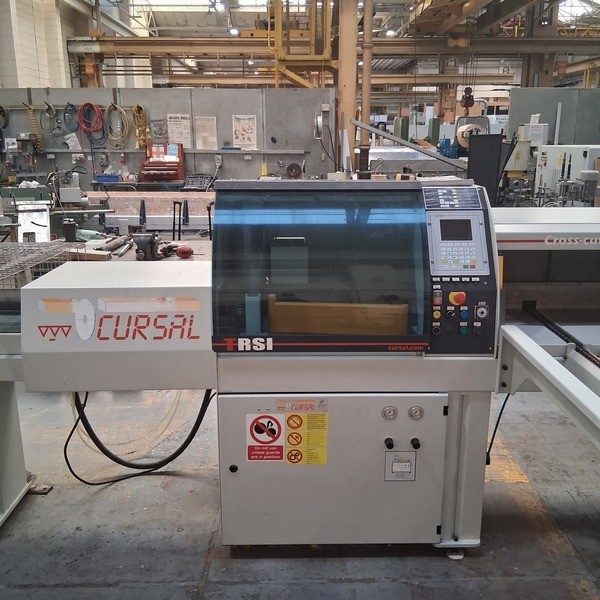

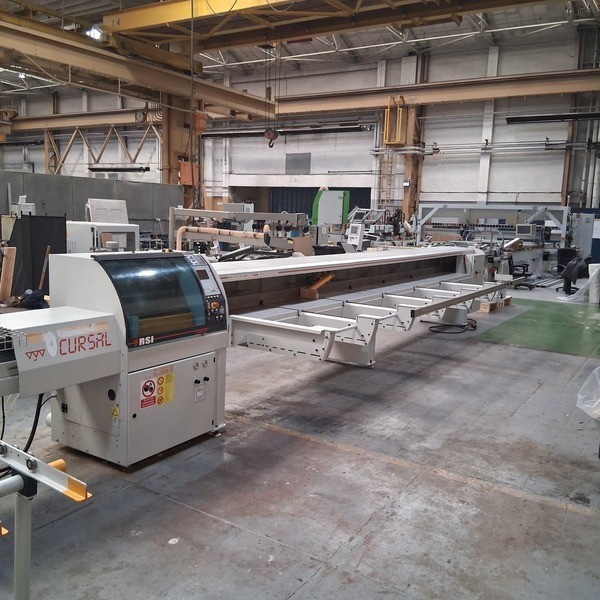

Durable and versatile automatic crosscut saw with exceptional speed and accuracy.
Impressive speed and accuracy
CNC programmable sequential cutting capabilities

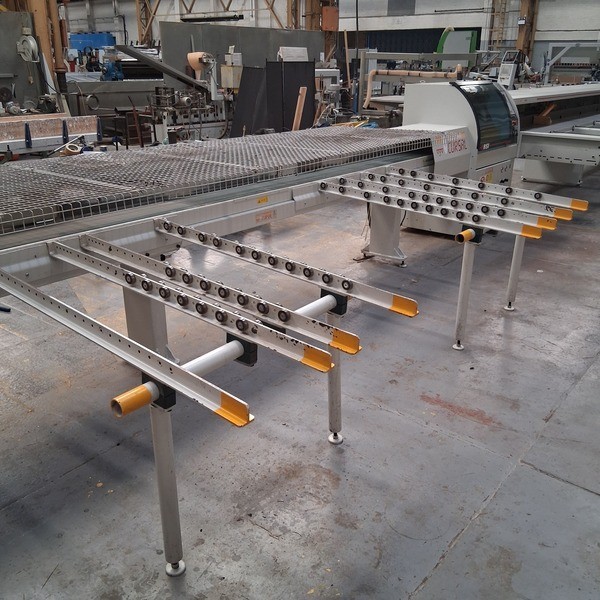

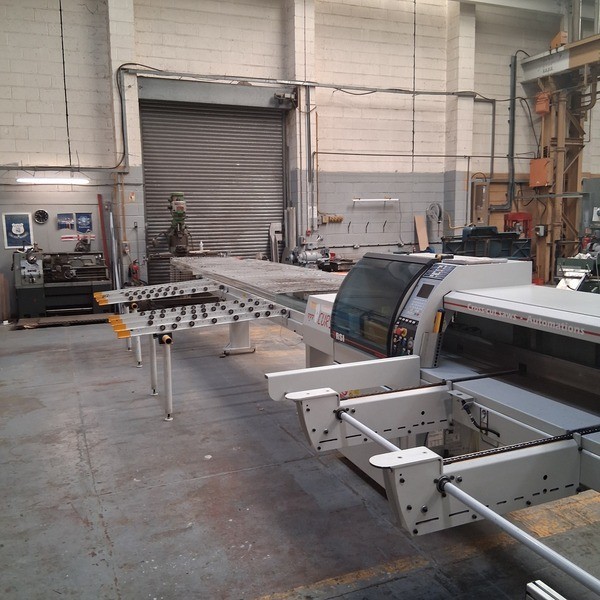

Optional loading and unloading
Specification :
6000 mm In feed capacity, push feed crosscut Saw
Single-block structure: the frame made of welded - worked steel
Pneumatic side-aligner installed before of the blade
Pneumatic blade-press with mobile casing: stroke 150 mm.
Breaking press-wheels with horizontal axis installed after blade
Cutting height on the guide: 120 mm.
Width of the boards: min. 40 - max. 250 (300) mm

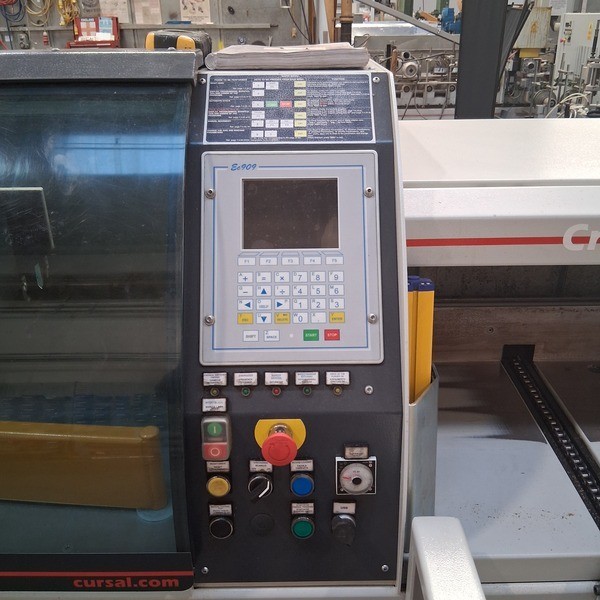

Automatic cutting control managed by the computer
Vertical alternated blade movement: pneumatic system with totally controlled stroke
Saw blade HM steel with alternate teeth Ø 500 mm, hole Ø 35 mm - Z=120
Blade motor HP 7,5 with automatic brake
Cutting time: adjustable from 0.3 to 2 seconds

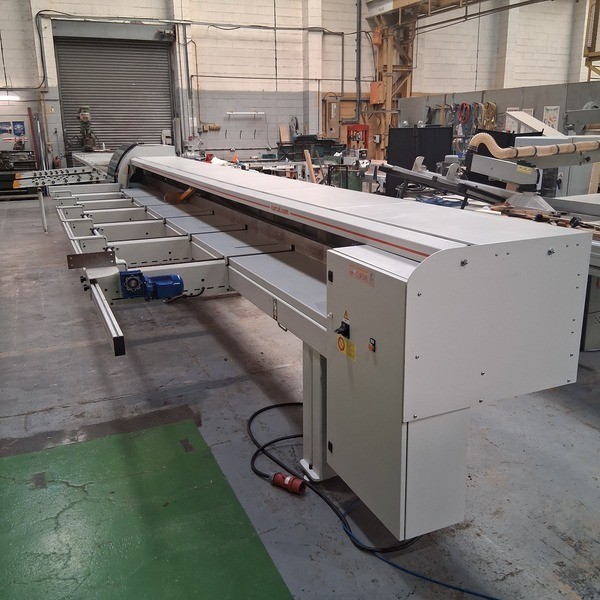

CNC unloading belt with 2 programmable ejectors

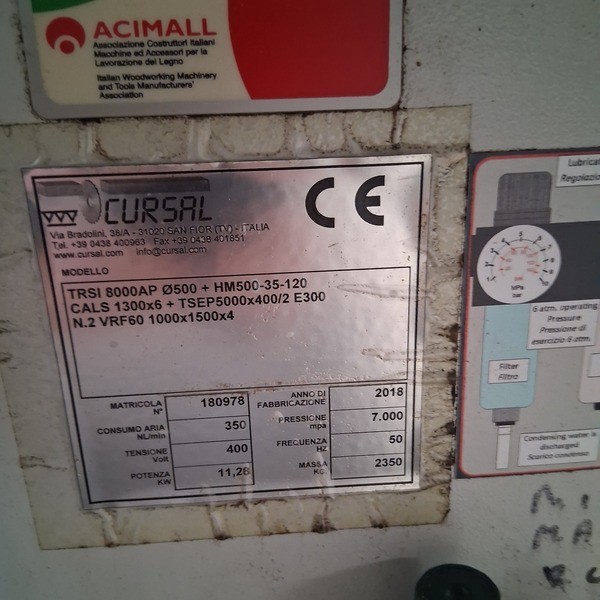

2018 CE
