Stromab Matrix Automatic Optimising Crosscut Saw for Straight Cutting - 2021 CE

UK's Best Selling Automatic Crosscut Saw

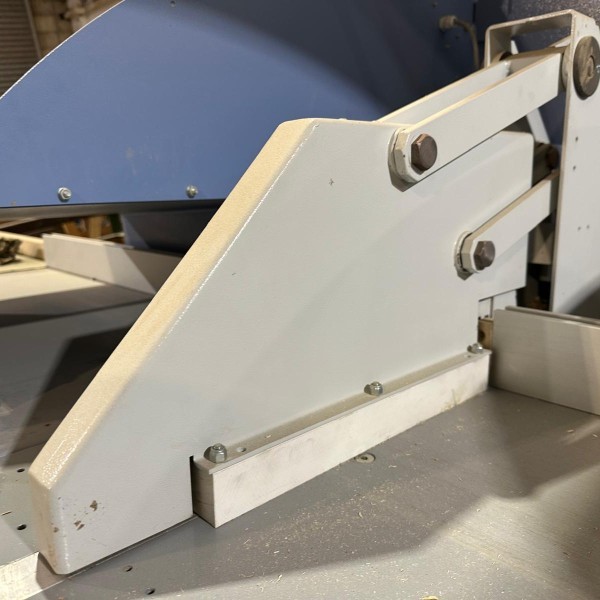

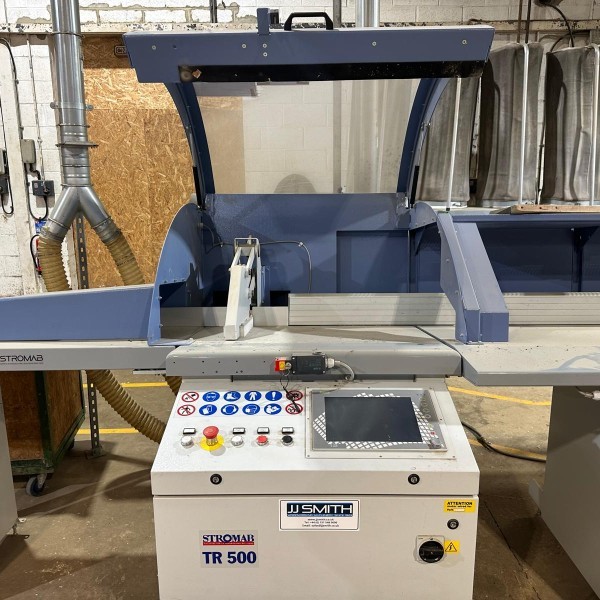

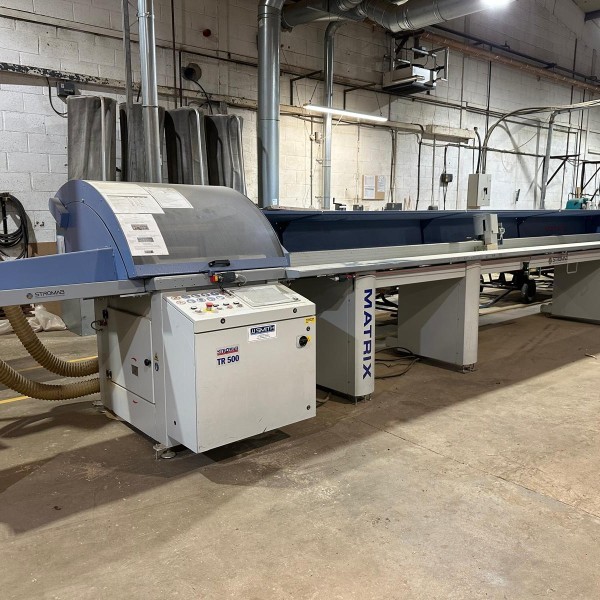

Built to meet the precise standards of fine joinery while embodying the robust quality of a sawmill, the globally acclaimed TR500 saw unit boasts a distinguished history of over 400 installations in the UK and over 50 years of industry use. A key component within the TR platform, the TR500 stands out with its ever-present 7.5kW saw motor - a consistent feature across the entire Stromab range. Its variable speed cutting cycle allows the precise cutting of softwoods or hardwoods, accommodating dimensions of up to 135mm in height or 360mm in width, all managed by a single top clamping unit.

Infeed

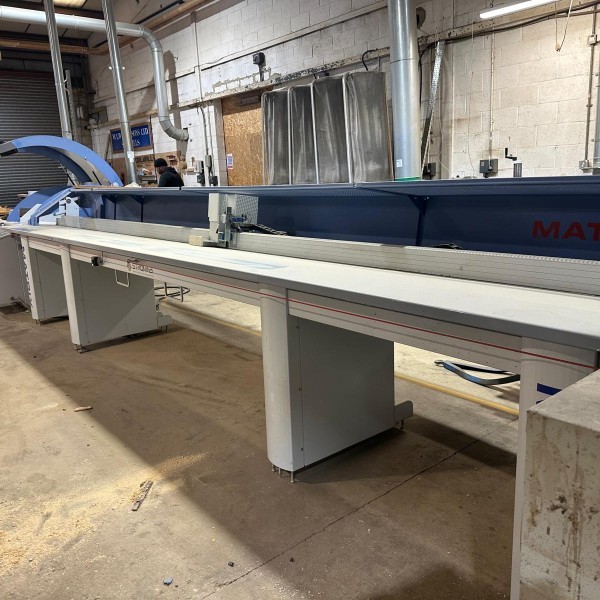

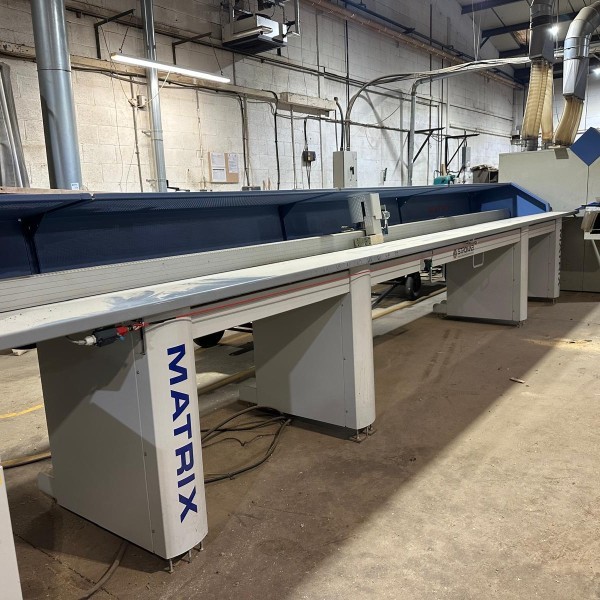

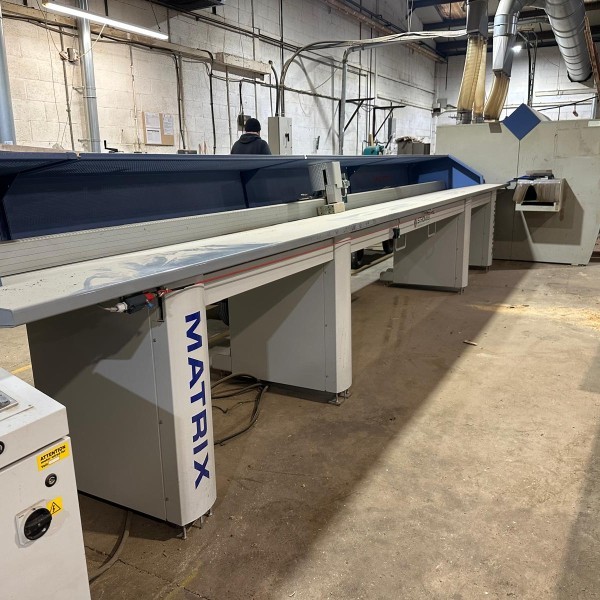

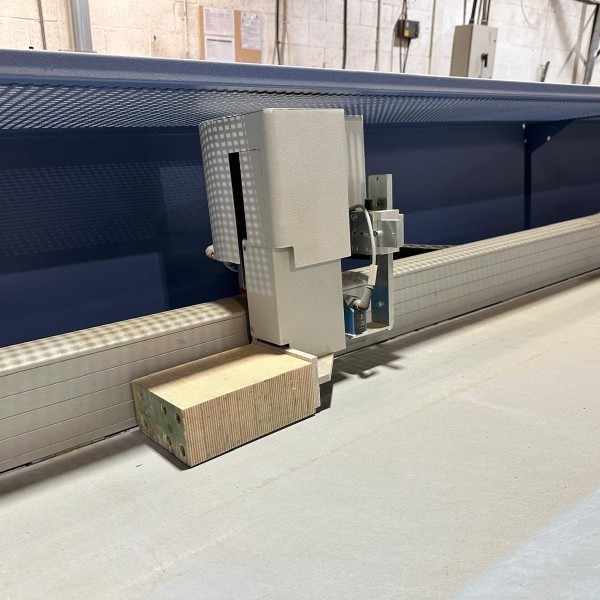

The industry standard rack and pinion system featured through the Stromab range allows timber lengths of up to 14m and up to 90kg to be push fed without additional rollers. Featuring a table incline of 8 degrees, automatic lifting pusher system and a positioning accuracy of 0.4mm, the Stromab Matrix powers through your repetitive and bulk cutting requirements.

Controller

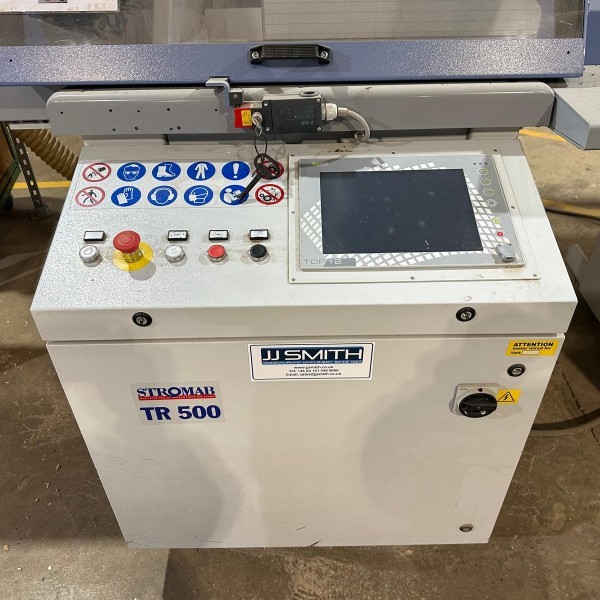

Harnessing the power of an ELCO Top 12 colour touch screen, cutting lists are simple to programme using the innovative optimisation methods:

BASE with board sequence, max length, or sequence.

OPTI with base features and volume, minimum waste or priority.

Alternatively, use our 'Design2Saw' software to pre-optimise files for the highest yield savings, loaded quickly via USB to reduce operator programming time.

Specification

Saw Unit

7.5kw saw motor

500mm diameter saw blade

135mm x 120mm cutting height

360mm x 55mm cutting width

Infeed & Outfeed

90m/min positioning speed

0.4mm positioning accuracy

8 degree incline on table

Servo driven rack & pinion

1m outfeed table as standard

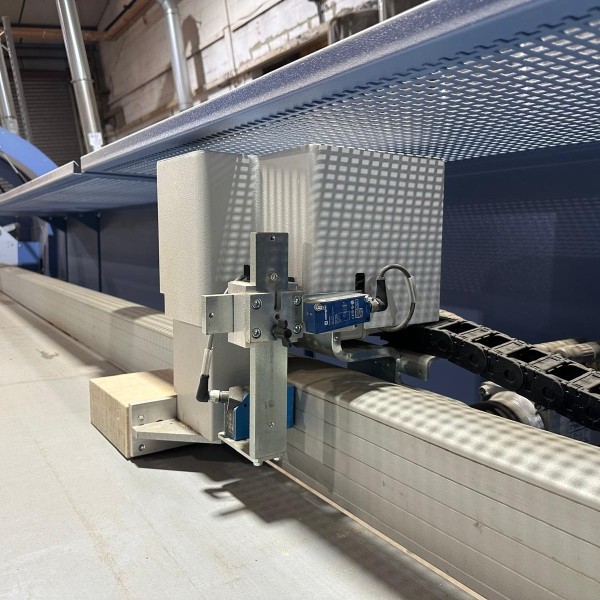

Automatic lifting of pusher arm

Controller

Elco TOP12 12" industrial touch screen PC

3 optimisation criteria - longest length, sequence & board sequence
